Standard Lighting Truss Systems and Outdoor Roof Structures
CL289 Single Row Spigot Ladder Truss Overview
The CL289 single row spigot ladder truss is a lightweight aluminum truss component designed for outdoor roof structures, canopy systems and temporary event frameworks.
With a 289mm width profile and 50mm round tube main chords, this ladder truss provides a simple and efficient structural solution where lightweight construction and fast assembly are required.
The spigot pin connection system allows quick installation and dismantling, making it suitable for mobile event structures and reusable outdoor applications.
Main Features
1. Lightweight Ladder Structure
The single-row ladder design provides:
Lightweight transportation;
Simple installation;
Efficient material usage;
Suitable structural support for canopy frameworks.
2. Spigot Connection System
The pin-connected structure offers:
Fast assembly and disassembly;
Reduced installation time;
Easy transportation;
Modular combination with other truss components.
3. Outdoor Application Design
CL289 is suitable for:
Outdoor event roofs;
Temporary canopy structures;
Exhibition structures;
Small and medium-size roof frameworks.
Structural Components
Component
Description
Main Chords
50mm aluminum round tubes providing primary structural support
Ladder Cross Members
Horizontal connecting tubes maintaining spacing and rigidity
CL289 is mainly used for outdoor roof structures, canopy frameworks and temporary event structures requiring lightweight aluminum truss components.
2. What is the size of CL289 truss?
CL289 has a 289mm width profile and uses 50mm aluminum round tubes as the main structural members.
3. What connection system does CL289 use?
CL289 uses a spigot pin connection system, allowing fast assembly and dismantling.
4. Can CL289 be customized in different lengths?
Yes. Different lengths can be manufactured according to project requirements. The standard drawings shown include 1.1m and 1.2m sections.
5. Is CL289 suitable for outdoor roof structures?
Yes. CL289 is designed for outdoor canopy and roof truss applications. The final structure should consider span, loading conditions and environmental requirements.
Design Notice

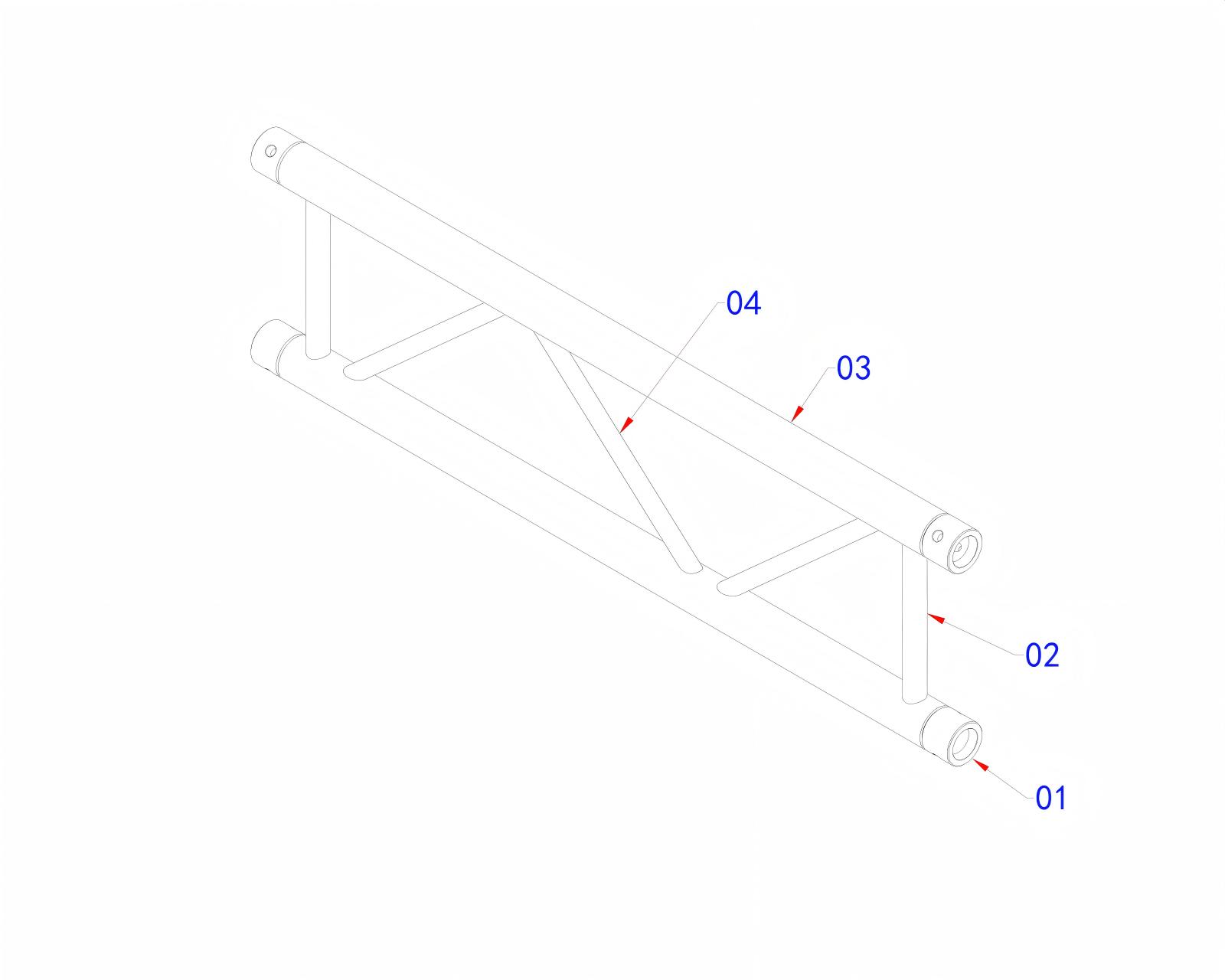

The drawings represent standard CL289 single-row spigot ladder truss configurations.
Actual structural performance depends on the complete structure design, loading conditions, installation method and environmental factors.
