CS290 Spigot Box Truss Overview
The CS290 aluminum spigot box truss is a modular structural truss component designed for professional event structures, lighting systems, outdoor canopy frameworks and temporary roof structures.
With a 290mm square profile, 50mm diameter aluminum round tubes and 3mm wall thickness, CS290 provides a lightweight and flexible solution for applications requiring efficient transportation, quick installation and reliable structural performance.
The integrated spigot pin connection system enables fast assembly, convenient dismantling and flexible combination of different truss lengths according to project requirements.
Compared with ladder truss structures, the box truss configuration provides improved torsional resistance and multi-directional stability, making it suitable for professional lighting structures and temporary outdoor structures.
Main Features
1. Stable Box Truss Structure
Compared with single-row ladder truss systems, the box truss design provides:
Higher torsional resistance;
Better overall rigidity;
Improved structural stability;
Multi-directional load distribution;
Better performance for lighting and temporary structures.
2. Lightweight Aluminum Construction
The aluminum alloy structure provides:
High strength-to-weight ratio;
Easy transportation and handling;
Corrosion resistance for outdoor applications;
Long service life with proper maintenance;
Reduced installation workload.
3. Fast Spigot Connection
The pin connection system allows:
Rapid assembly and dismantling;
Modular extension of truss systems;
Reduced installation time;
Convenient storage and transportation;
Flexible configuration for different event layouts.
Structural Components
Component
Description
Main Chords
Four 50mm aluminum round tubes forming the primary box structure
Cross Members
Horizontal connecting tubes maintaining the truss geometry
Diagonal Bracing
Internal diagonal tubes improving rigidity and stability
Spigot Connector
Integrated connection system between truss sections
CS290 is mainly used for professional lighting structures, outdoor roof systems, canopy structures and temporary event frameworks.
2. What is the specification of CS290 truss?
CS290 features a 290mm box profile using 50mm diameter aluminum tubes with 2mm wall thickness.
3. What connection system does CS290 use?
CS290 uses a spigot pin connection system, allowing quick installation and dismantling.
4. What lengths are available for CS290?
Standard lengths include:
0.3m;
0.6m;
0.8m.
Customized lengths can also be manufactured according to project requirements.
5. Can CS290 be used for outdoor roof structures?
Yes. CS290 is commonly used for outdoor roof and canopy structures. The final application should consider span, loading conditions and environmental requirements.
Design Notice

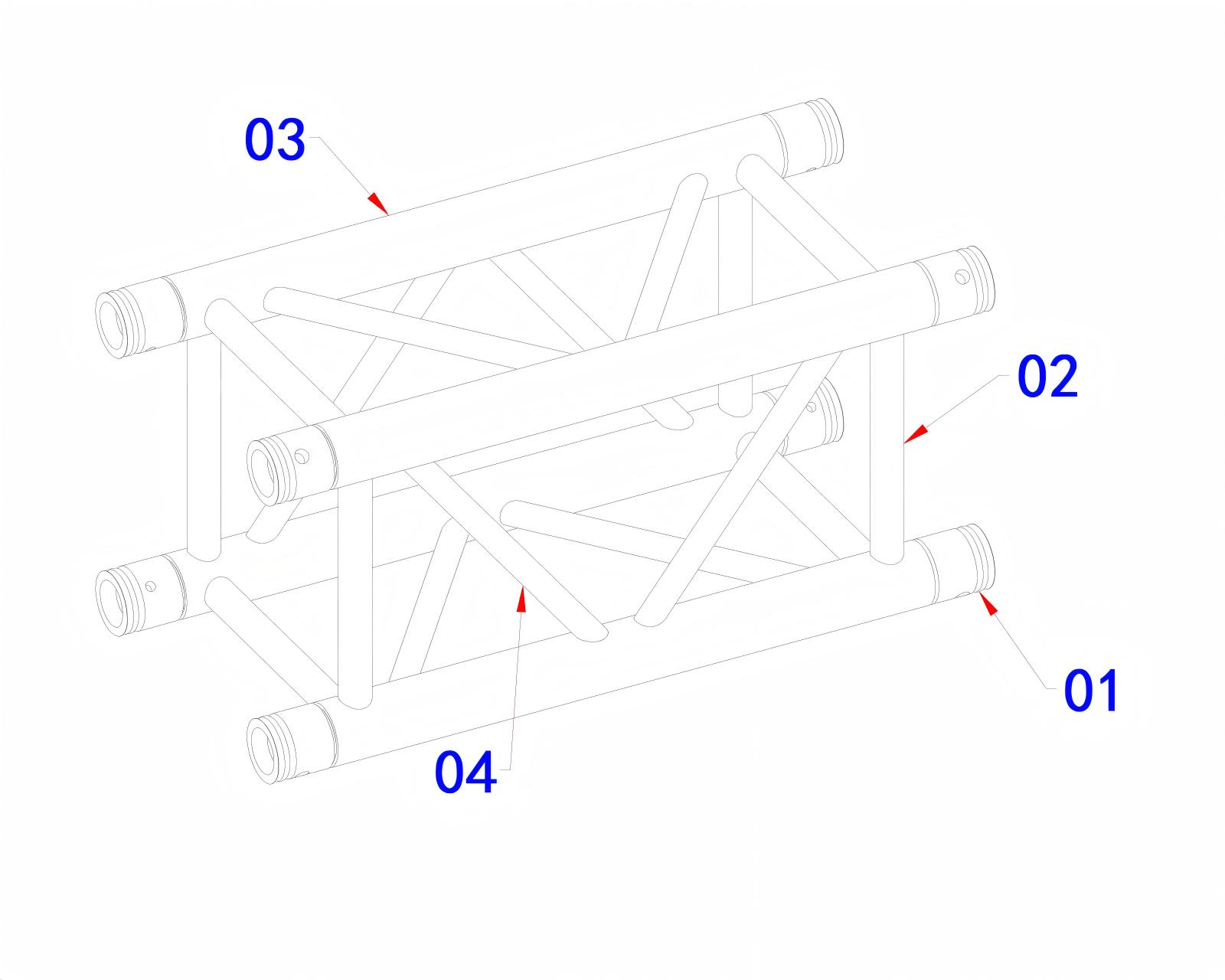

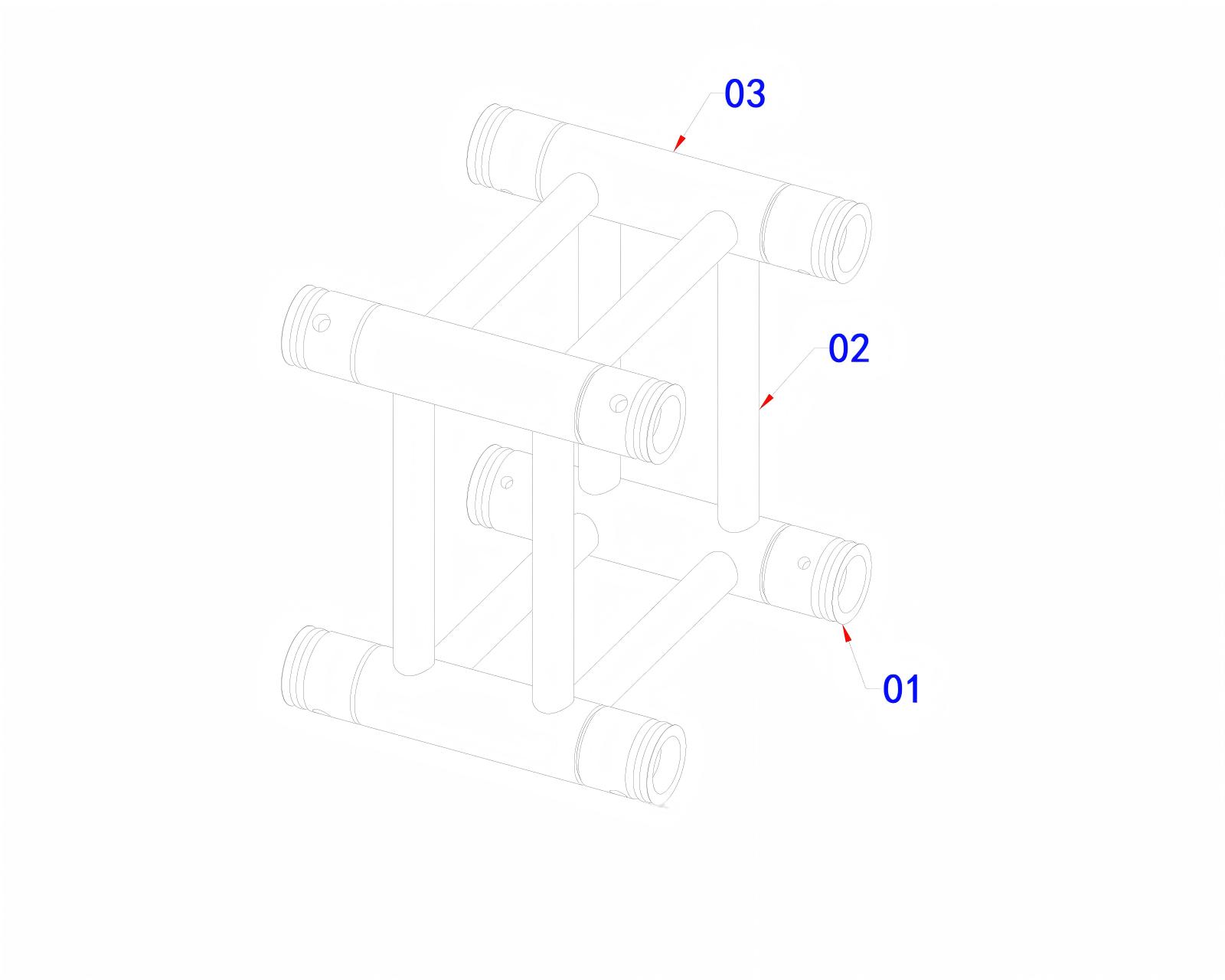

The drawings represent standard CS290 aluminum spigot box truss configurations.
Actual structural performance depends on the complete system design, connection method, loading conditions, installation environment and engineering requirements.
For large outdoor structures, professional structural evaluation is recommended according to project conditions.
