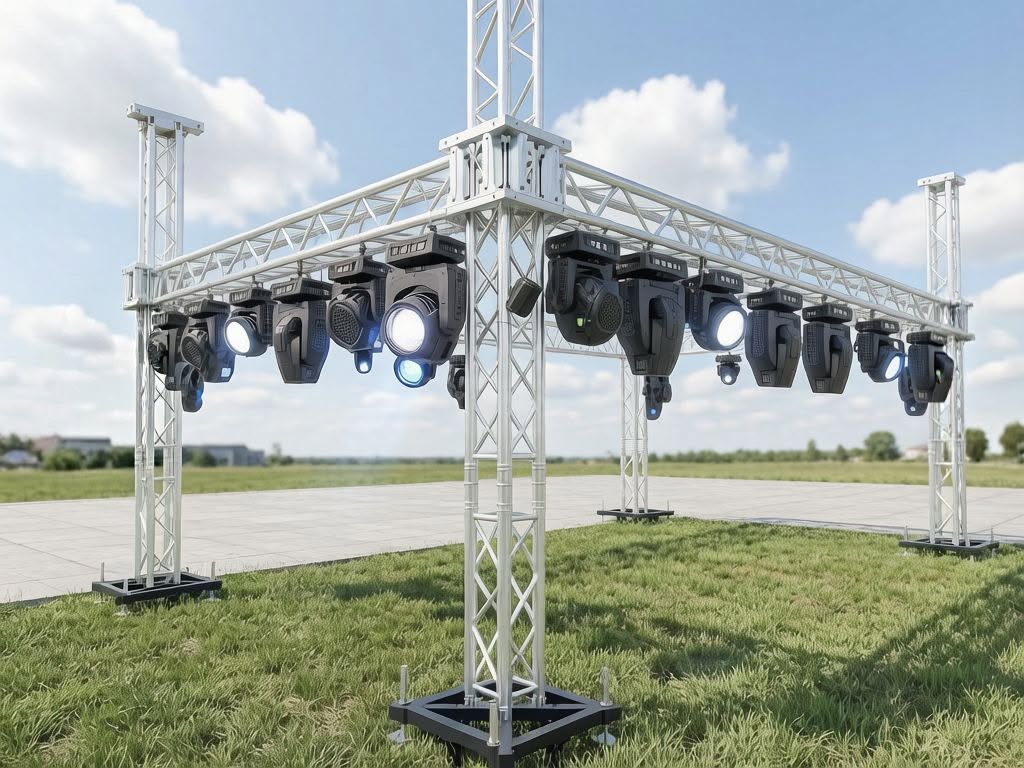

6x3x3m Aluminum Ground Support Lighting Truss System for Small Events

packing weight:720kg

packing volume:5cbm

Product Information

Product Description

The DragonStage 6x3x3m Aluminum Lighting Truss System is designed for events that need an independent overhead lighting structure without installing a roof canopy.

The system measures approximately 6 meters wide, 3 meters deep, and 3 meters high. Four vertical towers support a rectangular overhead truss frame, creating practical positions for lighting fixtures around the front, rear, and side beams.

This configuration belongs to the open or non-roof truss family. For similar structures in other dimensions, see Typical Non-Roof Truss System.

For individual lighting truss sections and related products, see Lighting Truss.

Compact Lighting Grid for Small and Medium Events

Compared with larger concert truss systems, this 6x3x3m configuration uses a relatively compact footprint.

The rectangular overhead frame can provide lighting positions for:

• front lighting

• rear lighting

• side lighting

• moving-head fixtures

• wash lights

• effect lighting

• decorative event lighting

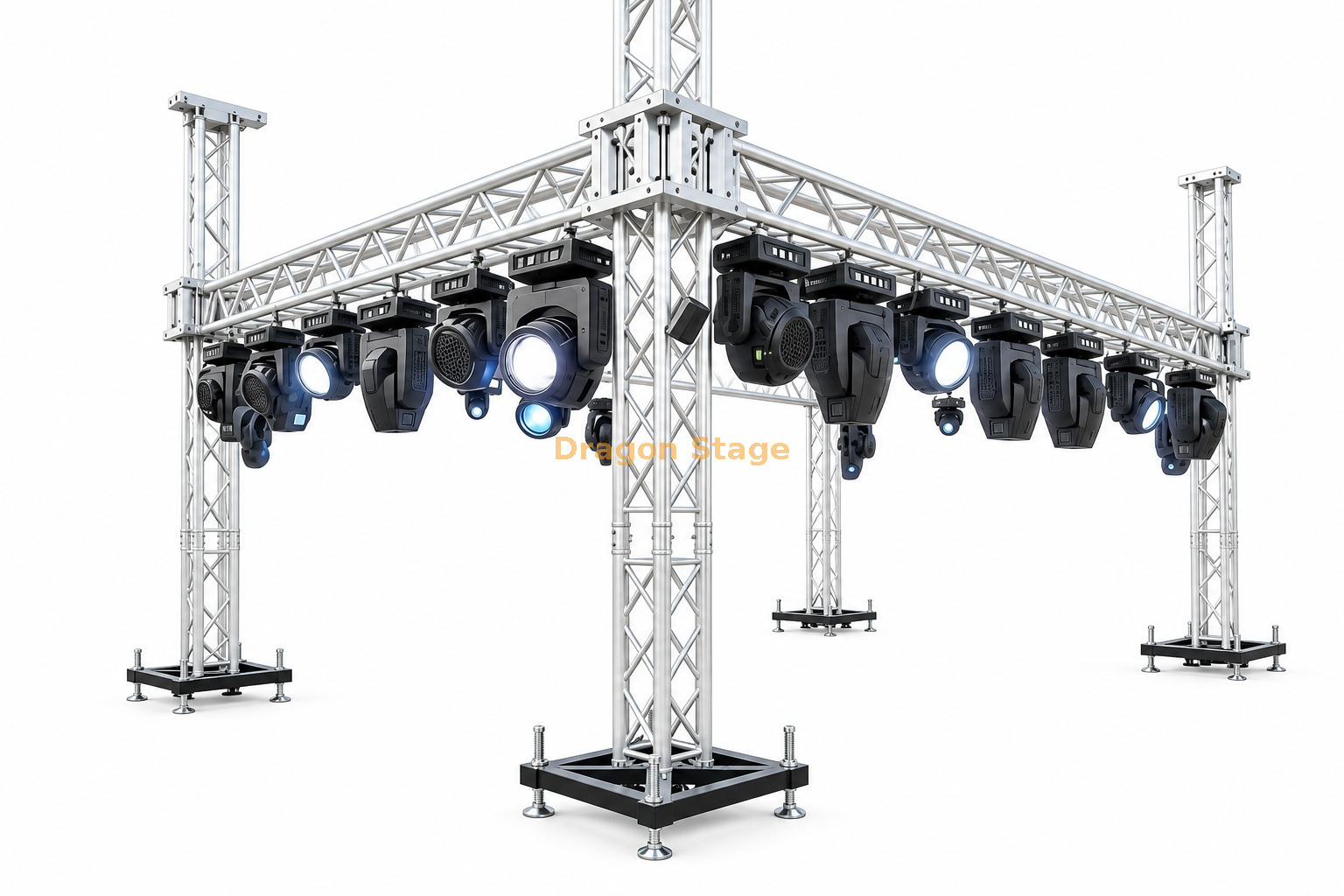

The lighting fixtures shown in the product image illustrate a typical application. The exact fixture package should be confirmed separately unless it is specifically included in the quotation.

Four-Tower Ground Support Layout

The visible configuration uses four vertical support towers, one at each corner of the rectangular lighting grid.

This arrangement creates a freestanding structure that does not depend on permanent ceiling rigging points.

It is practical for venues such as:

• hotel event spaces

• outdoor event areas

• temporary stages

• exhibitions

• DJ setups

• community events

• corporate events

The final base, stabilizing, ballast, or anchoring arrangement depends on the actual installation site and project configuration.

Main Features

• Overall size: 6m W × 3m D × 3m H

• Rectangular overhead lighting grid

• Four-tower ground support layout

• Open / non-roof structure

• Modular aluminum truss construction

• Compact footprint for smaller venues

• Suitable for repeated assembly and dismantling

• Easy to transport and store compared with larger truss systems

• Custom dimensions available

Why Choose a Non-Roof Lighting Truss?

Not every event requires a covered stage.

If the main requirement is simply to create organized positions for lighting equipment, a non-roof truss system can be more straightforward than adding a complete roof structure.

It avoids adding a canopy when weather protection is not required and keeps the structure focused on lighting and production equipment.

For more information about different truss layouts, see Truss Design & Configuration.

Typical Applications

• DJ lighting systems

• Small concerts

• Corporate events

• Weddings

• Exhibitions

• Product launches

• Church events

• Ceremonies

• Temporary stage lighting

• Indoor and outdoor event production

Modular Structure

The truss system is assembled from individual structural components rather than manufactured as one fixed welded frame.

This modular approach helps with:

• transportation

• storage

• repeated installation

• replacement of individual components

• future size adjustment

If the final configuration uses standard spigot truss components, related sections can be selected from Standard Spigot Truss.

Important Technical Note

The confirmed product information is:

• 6m width

• 3m depth

• 3m height

• rectangular overhead lighting frame

• four vertical support towers

The current information does not establish:

• allowable suspended load

• maximum number of lighting fixtures

• point-load capacity

• ballast requirement

• anchoring requirement

• wind rating

• safety factor

• engineering approval

These depend on the selected truss section, equipment weight, hanging positions, support conditions, and installation environment.

For general guidance on this distinction, see Safety Standards & Engineering Constraints.

FAQ

What is the size of this lighting truss system?
The overall structure is approximately 6m wide × 3m deep × 3m high.

How many support towers are used?
The configuration uses 4 vertical towers, one at each corner.

Does this system include a roof?
No. This is a non-roof lighting truss system with an open overhead rectangular grid.

Are the lighting fixtures included?
The lighting fixtures shown in the image illustrate a typical application. Unless specifically listed in the quotation, the truss system and lighting equipment should be treated as separate products.

Can moving-head lights be installed?
Yes, moving heads are a common application, but the quantity, individual weight, and mounting positions need to be confirmed.

Can the structure be used indoors?
Yes. This size is particularly practical for indoor venues where a compact freestanding lighting grid is needed.

Can it be used outdoors?
It can be configured for temporary outdoor use, but the site, wind conditions, anchoring, ballast, and equipment loading must be checked for the actual project.

Can the size be customized?
Yes. Width, depth, height, and beam layout can be adjusted according to the event requirement.

Can I order the truss without lights?
Yes. The lighting truss structure can be supplied separately from lighting fixtures.

What information is needed for quotation?
Please provide the required dimensions, event location, indoor or outdoor use, lighting fixture quantity, fixture weight, and any preferred layout.

Why Choose DragonStage

DragonStage supplies individual Lighting Truss components as well as complete ground-support lighting structures.

For a system like this, the important information is not only the 6x3x3m outside dimensions. The type, quantity, weight, and position of the lighting fixtures should also be considered before the final component configuration is confirmed.

Soft CTA

For quotation, please send us:

• required width × depth × height

• indoor or outdoor use

• event location

• lighting fixture quantity

• approximate weight of each fixture

• preferred hanging positions

We can then confirm the suitable lighting truss configuration.
