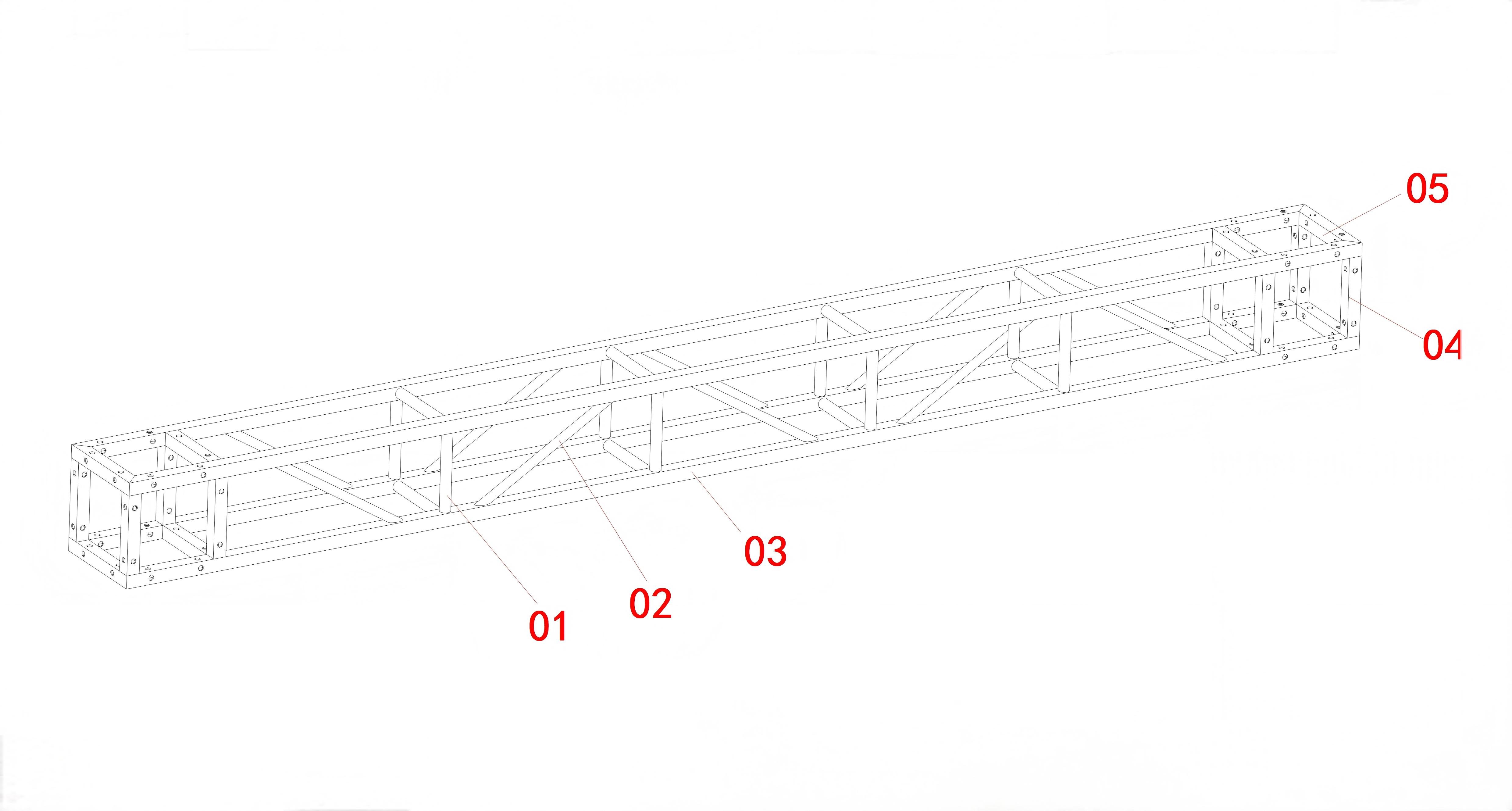

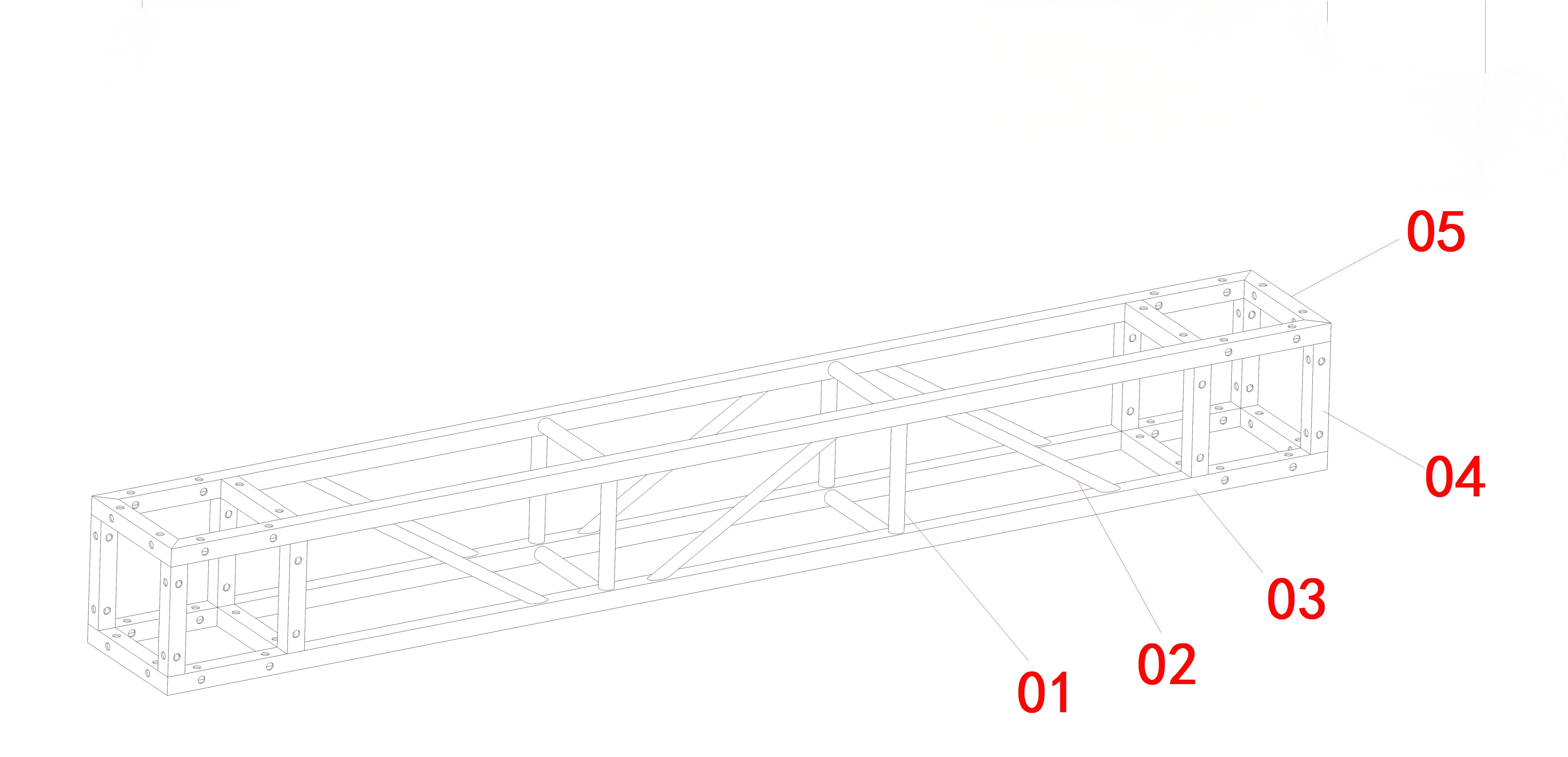

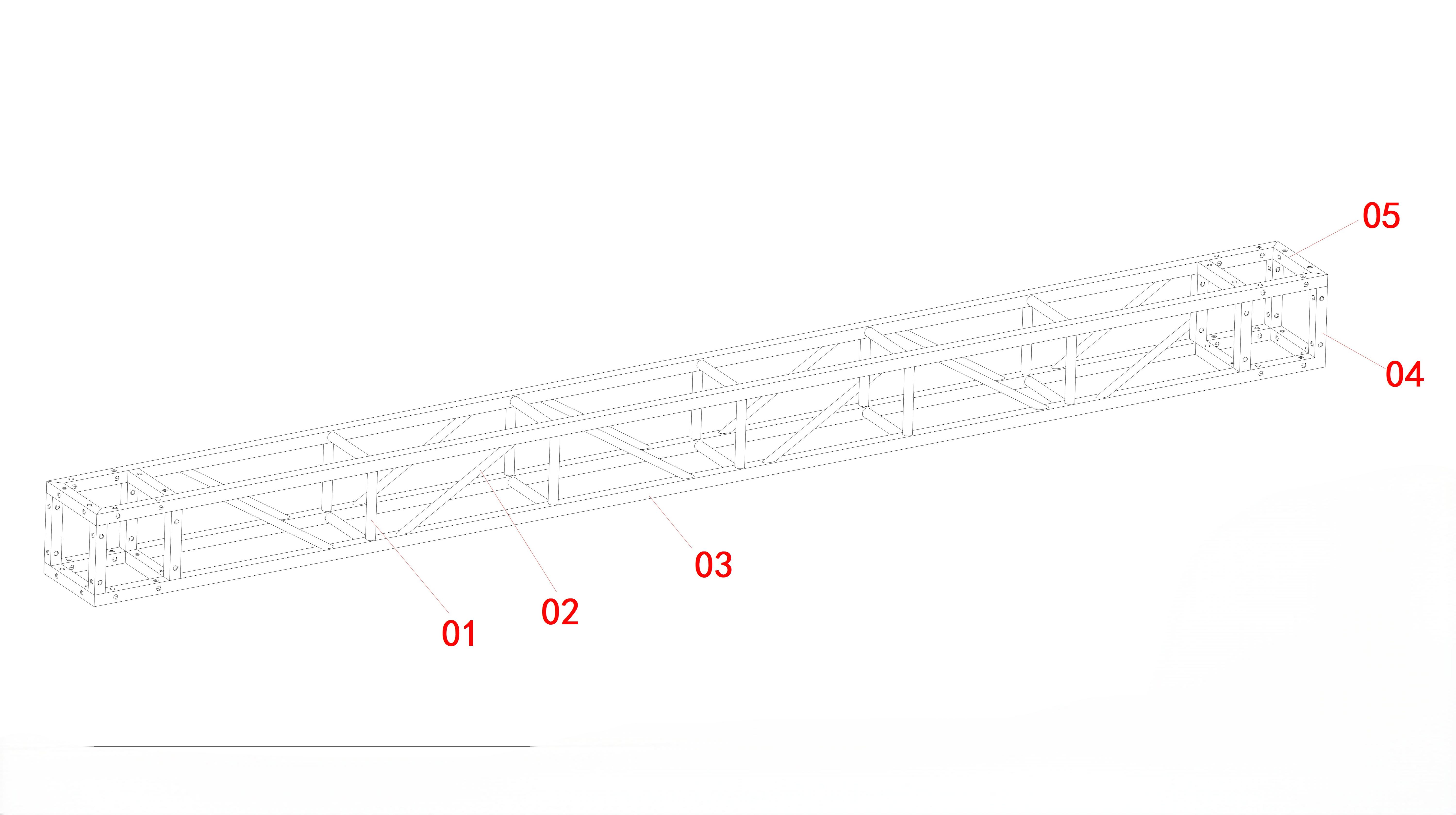

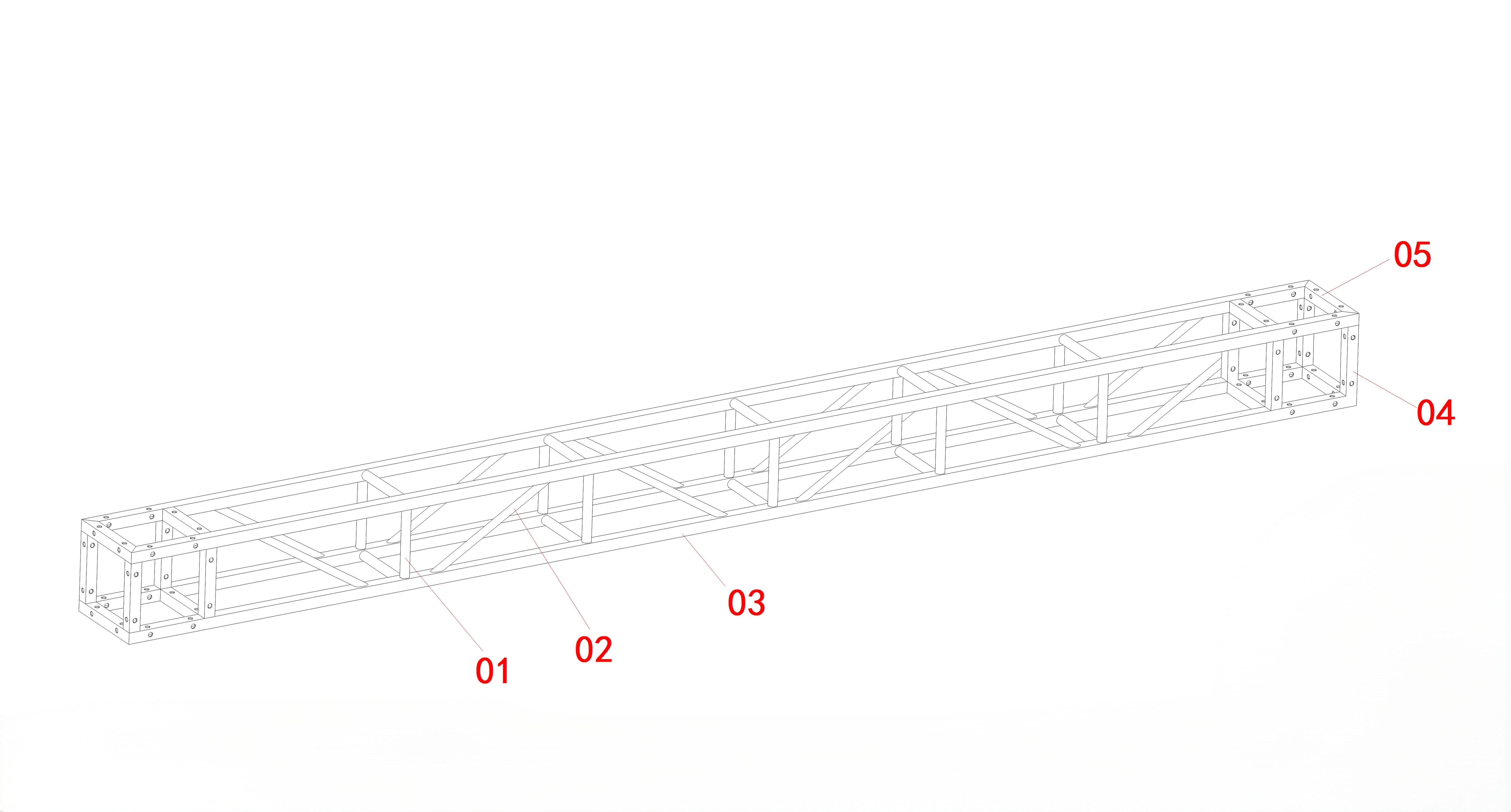

The above drawings represent different length configurations of the BS200 square tube bolt-connected aluminum truss design developed for exhibition displays, advertising backgrounds and small event structures.
The drawing indexes are used as references for locating related CAD drawings and production records.
Drawing Information
Item
Details
Drawing Index
3245 / 3274
Drawing Series
BS200 Square Tube Bolt-Connected Truss
Structure Type
Custom Length Aluminum Truss Component
Application
Exhibition Display Structure / Small Event Background Structure
Cross Section
Width 200mm × Height 200mm
Main Tube
100mm × 100mm Square Tube
Available Lengths
1.7m / 2.4m / 2.8m / 2.9m
Environment
Indoor and Outdoor Applications
Material
Aluminum Alloy
Connection System
Bolt Connection
Drawing Type
2D CAD Drawing
Design Purpose
Advertising Background Structure Component
3245/3274-BS200 Aluminum Bolt Truss Design for Exhibition Display Structures
Introduction
This drawing archive presents the 3245/3274-BS200 square tube bolt-connected aluminum truss component developed for exhibition displays, advertising backgrounds and small event structures.
The drawing is indexed under references 3245 and 3274, and the related drawing files include different length configurations manufactured according to the same structural concept.
The BS200 series adopts a square tube bolt-connected structure, providing a lightweight and modular solution for applications where quick assembly, transportation efficiency and flexible configuration are required.
By providing different lengths, including 1.7m, 2.4m, 2.8m and 2.9m, the same truss series can be adapted to different display sizes and background structure requirements.
Design Overview
The 3245/3274-BS200 adopts a modular bolt-connected structure using aluminum square tubes.
Compared with fixed welded structures, bolt-connected truss components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible assembly;
Reusable configurations.
The square tube design provides a clean appearance and is commonly used for exhibition structures, advertising backgrounds and decorative event frameworks.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For exhibition and small event structures, individual truss components are only one part of the complete framework.
The final configuration depends on:
Overall structure dimensions;
Display requirements;
Installation method;
Indoor or outdoor environment;
Additional accessories and connections.
Material selection also affects structural performance and appearance. Aluminum alloy is widely used for temporary display structures because of its lightweight characteristics, corrosion resistance and clean surface appearance.
For future purchasing applications, this drawing archive can be connected with:
BS200 Aluminum Bolt Truss
Possible product configurations:
BS200 × 1.7m
BS200 × 2.4m
BS200 × 2.8m
BS200 × 2.9m
The drawing archive demonstrates Dragon Stage's custom design capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the BS200 aluminum truss mainly used for?
The BS200 is mainly designed for exhibition displays, advertising backgrounds and small event structures where lightweight and modular assembly are required.
2. Why are different BS200 lengths included in one design archive?
Because these drawings belong to the same structural series and use the same design concept. Different lengths are developed according to different display and structure requirements.
3. Can BS200 truss lengths be customized?
Yes. The length can be customized according to project dimensions, structural requirements and installation conditions.
4. What is the difference between BS200 and standard lighting truss?
The BS200 focuses on display structures and background frameworks, while standard lighting truss systems are usually designed for lighting suspension and event equipment support.
5. Can Dragon Stage provide complete exhibition structure solutions?
Yes. Dragon Stage can provide customized solutions including structural layout, component selection and manufacturing support.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
