8x6x3m Aluminum Ground Support Lighting Truss System for Events

packing weight：790kg

packing volume: 6cbm

Product Information

Product Description

The DragonStage 8x6x3m Lighting Truss System is a modular freestanding structure designed to create an overhead lighting grid without relying on the venue's permanent ceiling or rigging points.

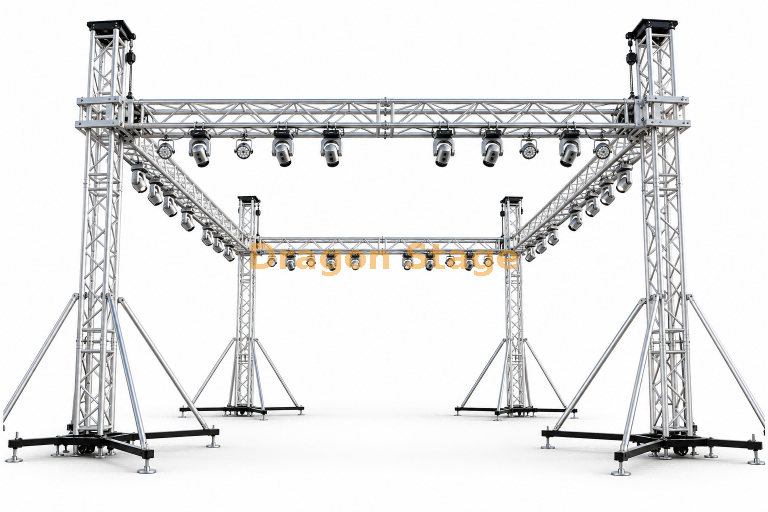

The overall structure measures 8m wide, 6m deep, and 3m high. Four vertical support towers carry the rectangular overhead truss frame, providing practical positions for lighting fixtures around the front, rear, and side beams.

This type of structure is commonly used where the event needs an independent lighting support system above or around the performance area.

For other lighting structures and individual truss components, see Lighting Truss and Lighting Truss Category.

Main Features

• Overall size: 8m W × 6m D × 3m H

• Four-tower ground-support layout

• Rectangular overhead lighting grid

• Modular aluminum truss construction

• Multiple lighting positions around the structure

• Freestanding temporary event system

• Reusable for different productions

• Can be dismantled for transportation and storage

• Custom dimensions and layouts available

How This Lighting Truss System Is Used

Unlike a single goal-post lighting frame, this system creates a complete rectangular overhead grid.

That allows lighting fixtures to be distributed across different positions such as:

• front lighting

• back lighting

• side lighting

• overhead effect lighting

• moving-head fixtures

• wash lights

• decorative event lighting

The final fixture layout depends on the production design and actual loading requirements.

For more information about how different truss layouts are organized, see Truss Design & Configuration.

Ground Support Configuration

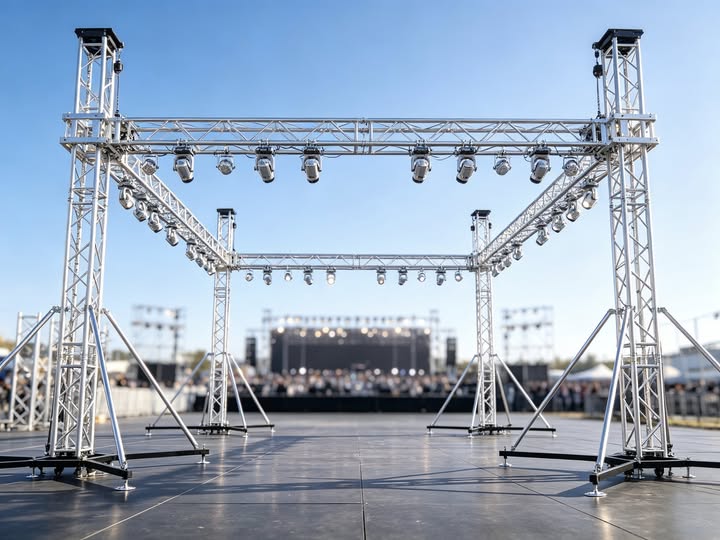

The image shows a four-tower support arrangement with stabilizing base elements around the vertical towers.

This type of configuration is practical when the event needs an independent lighting structure that can be assembled on the venue floor.

The system can be used for:

• temporary indoor events

• outdoor events

• concerts

• exhibitions

• product launches

• ceremonies

• DJ events

• corporate productions

For broader live-production applications, see Concert Event.

Modular Truss Construction

The lighting grid is assembled from individual truss sections and support components rather than manufactured as one permanent frame.

This modular concept helps with:

• easier transportation

• compact storage

• repeated assembly

• replacement of individual sections

• future expansion or reconfiguration

If the project uses spigot-type truss sections, compatible components can be selected from our Standard Spigot Truss range.

Typical Applications

• Concert lighting grids

• Festival lighting systems

• Corporate event lighting

• Exhibition lighting structures

• Wedding and ceremony lighting

• DJ and entertainment setups

• Temporary stage lighting

• Brand event production structures

Customization

The 8x6x3m configuration shown here is one practical layout.

DragonStage can customize:

• overall width

• overall depth

• tower height

• beam arrangement

• truss section

• tower configuration

• lighting positions

• base and support arrangement

If you already have lighting fixtures, please provide the fixture quantity, individual weight, intended positions, and complete event layout.

Important Technical Note

The confirmed information for this product is:

• 8m width

• 6m depth

• 3m height

• rectangular lighting-truss layout

The current information does not establish:

• allowable suspended load

• maximum number of lights

• point-load capacity

• ballast requirement

• outdoor wind rating

• anchoring requirement

• safety factor

These depend on the selected truss section, spans, fixture positions, support conditions, and complete structural configuration.

For the distinction between product dimensions and project-specific engineering verification, see Safety Standards & Engineering Constraints.

FAQ

What is the overall size of this lighting truss system?
The structure measures 8m wide × 6m deep × 3m high.

How many support towers are used?
The current layout uses 4 ground-support towers.

What is the main purpose of this structure?
It is designed to provide an independent overhead support grid for event lighting and production equipment.

Can moving-head lights be installed?
Yes, moving heads and other lighting fixtures can be arranged on the truss, but the final quantity, weight, and positions must be confirmed before production.

Can it be used without hanging from the venue ceiling?
Yes. This is a ground-support structure designed to stand independently on the event floor when correctly configured.

Is it suitable for outdoor events?
It can be configured for outdoor temporary use, but ballast, anchoring, wind conditions, and allowable loads must be confirmed for the actual project.

Can the height be increased?
Yes. Width, depth, and height can be customized according to the event requirement and structural configuration.

What information is needed for quotation?
Please provide the required dimensions, event location, indoor or outdoor use, lighting fixture quantity and weight, and any layout drawing you have.
