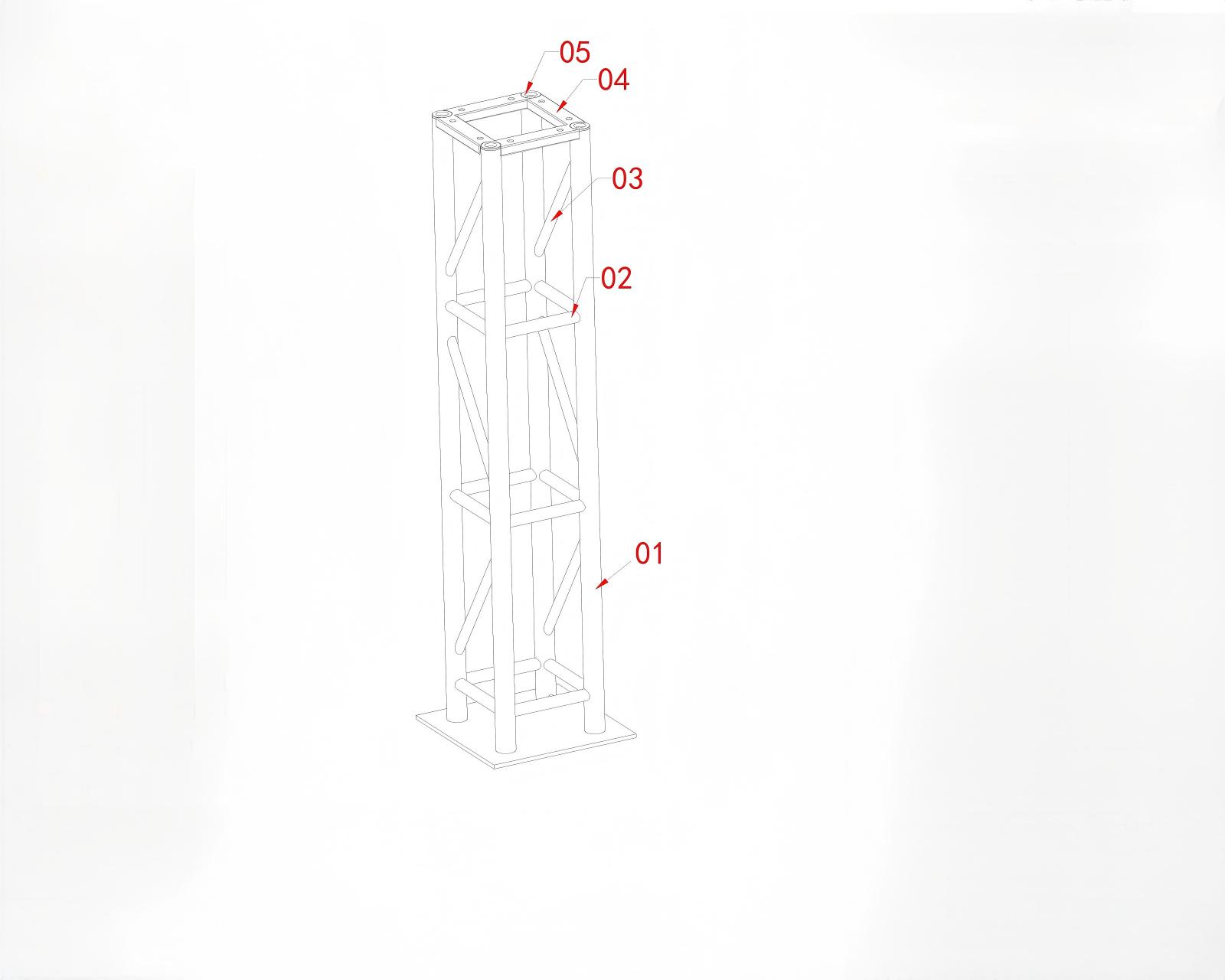

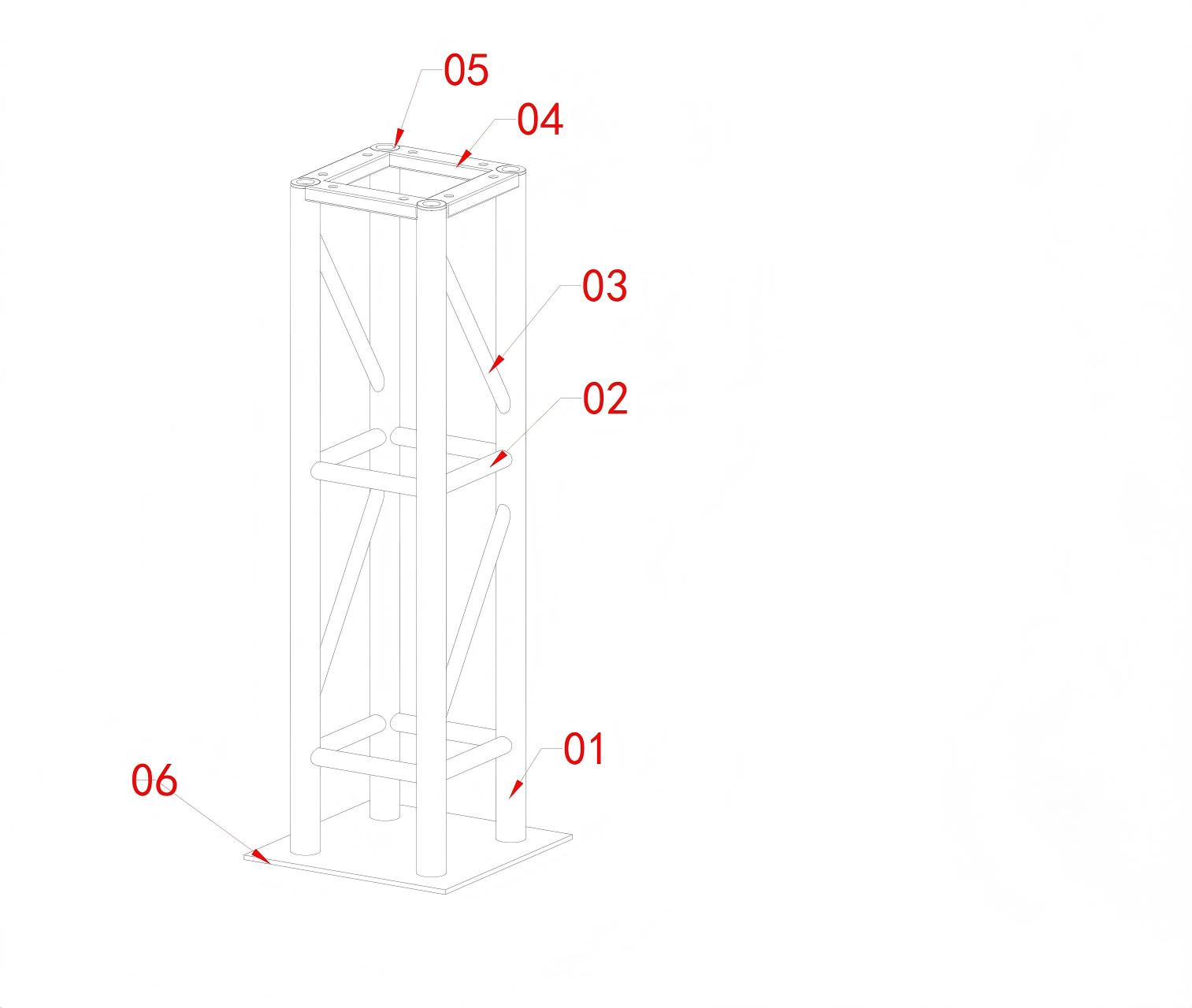

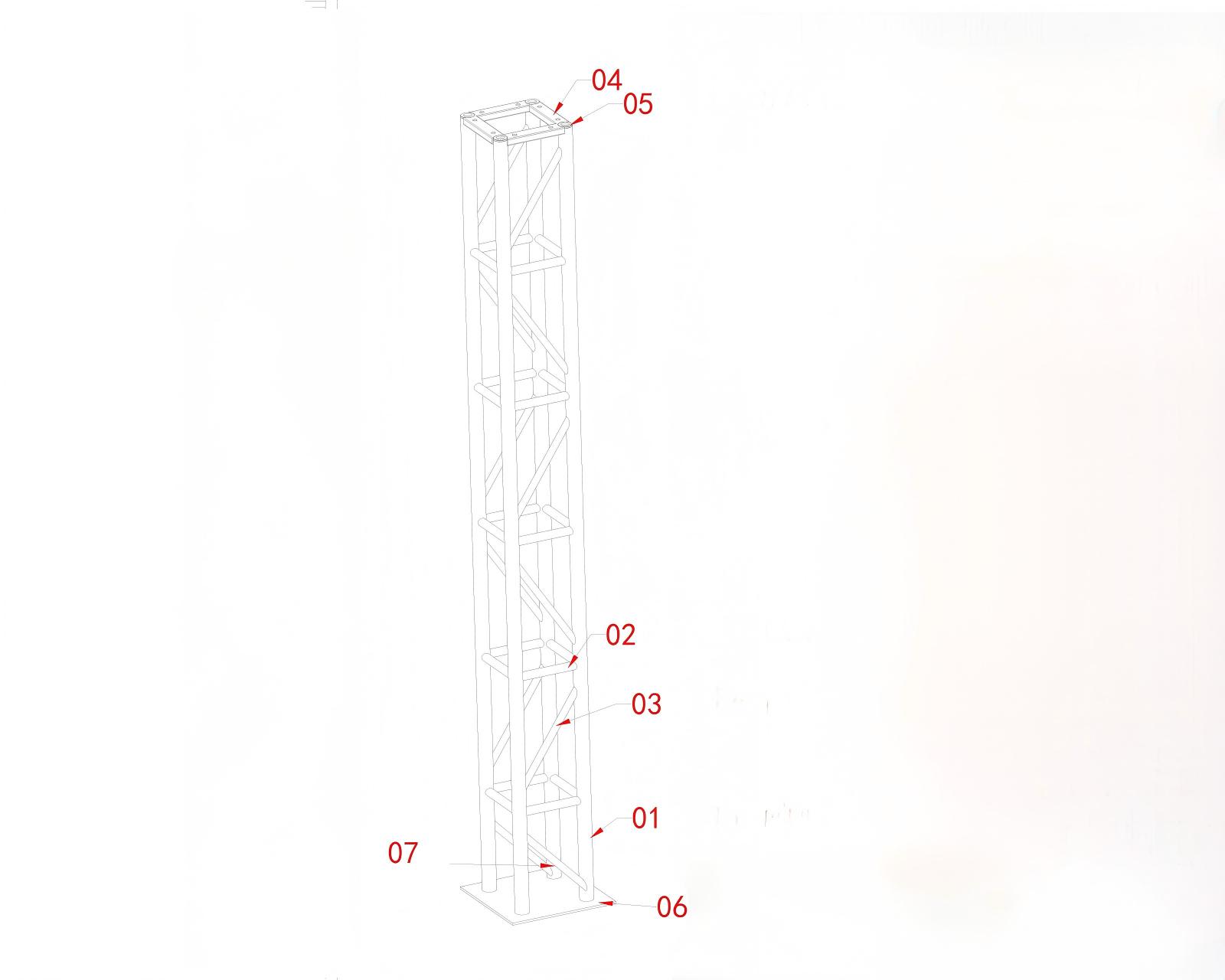

The above drawings represent different height configurations of the BS300 round tube bolt-connected aluminum truss tower design used for lighting support, decorative structures and exhibition applications.
The drawing index is used as a reference for locating related CAD drawings and production records.
3281-BS300 Round Tube Bolt Truss Tower Design for Lighting and Event Structures
Introduction
This drawing archive presents the 3281-BS300 round tube bolt-connected aluminum truss tower component developed for lighting support, decorative structures and exhibition applications.
The drawing is indexed under reference 3281, and the related drawing files include different height configurations manufactured according to the same structural concept.
The BS300 series is designed as a vertical truss tower structure rather than a conventional horizontal lighting truss. It combines a round tube aluminum frame, bolt connection system and base support structure to create a flexible solution for indoor and outdoor event applications.
By providing different heights, including 1.599m, 1.777m and 2.877m, the same truss tower design can be adapted to different lighting, decoration and display requirements.
Design Overview
The 3281-BS300 adopts a modular bolt-connected round tube structure.
Compared with fixed welded structures, bolt-connected truss tower components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible assembly;
Customized height configuration.
The round tube design provides a clean appearance, making it suitable for visible event structures where both structural function and visual presentation are important.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For vertical truss tower structures, individual components are only one part of the complete system.
The final configuration depends on:
Overall tower height;
Equipment weight;
Installation environment;
Wind conditions;
Base fixing method;
Required stability measures.
Outdoor applications require additional consideration because environmental conditions, especially wind loads, may affect the final structural design.
Material selection also affects structural performance. Aluminum alloy is widely used in temporary event structures because of its lightweight characteristics, corrosion resistance and appearance quality.
For future purchasing applications, this drawing archive can be connected with:
BS300 Round Tube Bolt Truss Tower
Possible product configurations:
BS300 × 1.599m
BS300 × 1.777m
BS300 × 2.877m
The drawing archive demonstrates Dragon Stage's custom design capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the BS300 round tube truss tower mainly used for?
The BS300 is mainly designed for lighting support, decorative structures, exhibition displays and customized event applications.
2. Can BS300 truss towers be customized in height?
Yes. The tower height can be customized according to project requirements, equipment installation needs and structural conditions.
3. Why are different heights included in one drawing archive?
Because these drawings belong to the same structural series and use the same round tube bolt-connected design concept. Different heights are developed according to different application requirements.
4. Can BS300 truss towers be used outdoors?
Yes. The BS300 can be used for outdoor applications, but the final configuration should consider environmental conditions, especially wind and installation stability.
5. Can Dragon Stage provide complete lighting tower solutions?
Yes. Dragon Stage can provide customized solutions including structural design, component selection and manufacturing support.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
