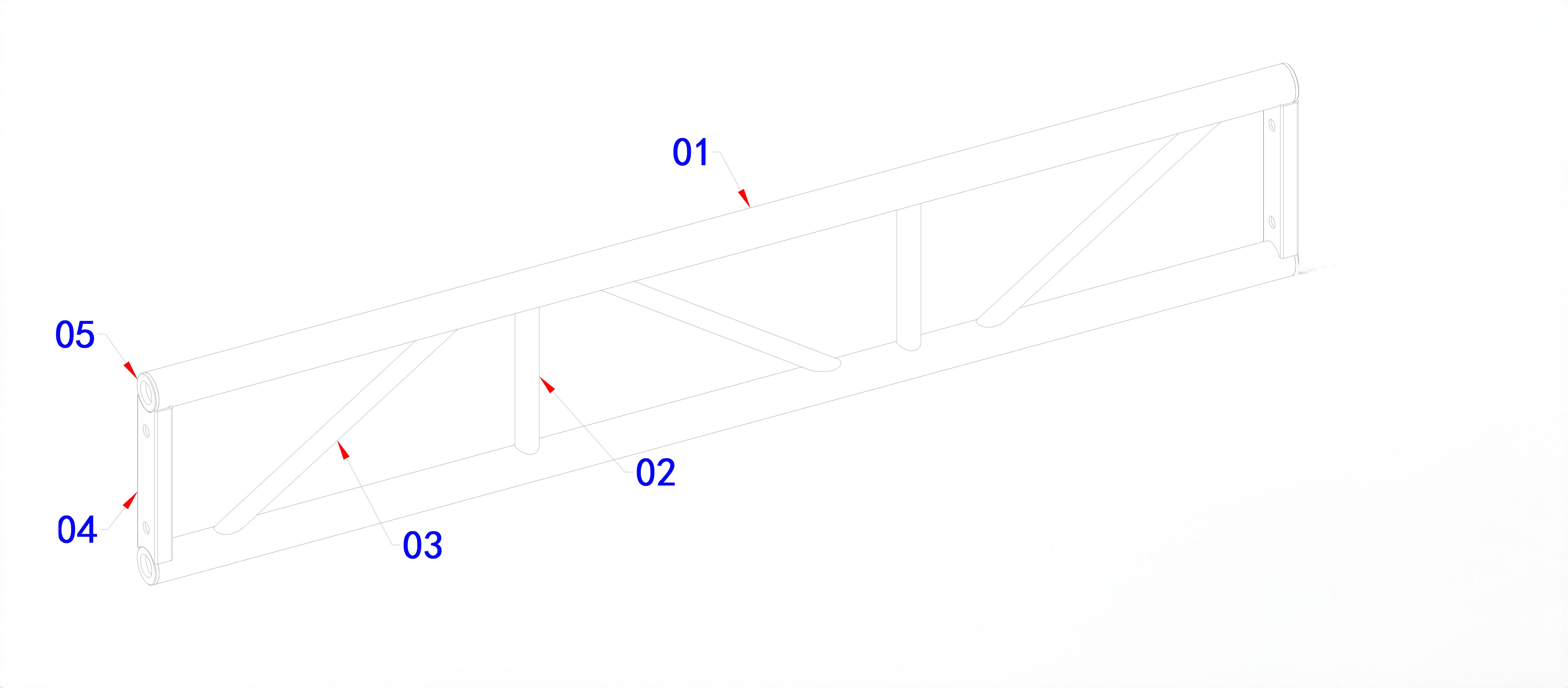

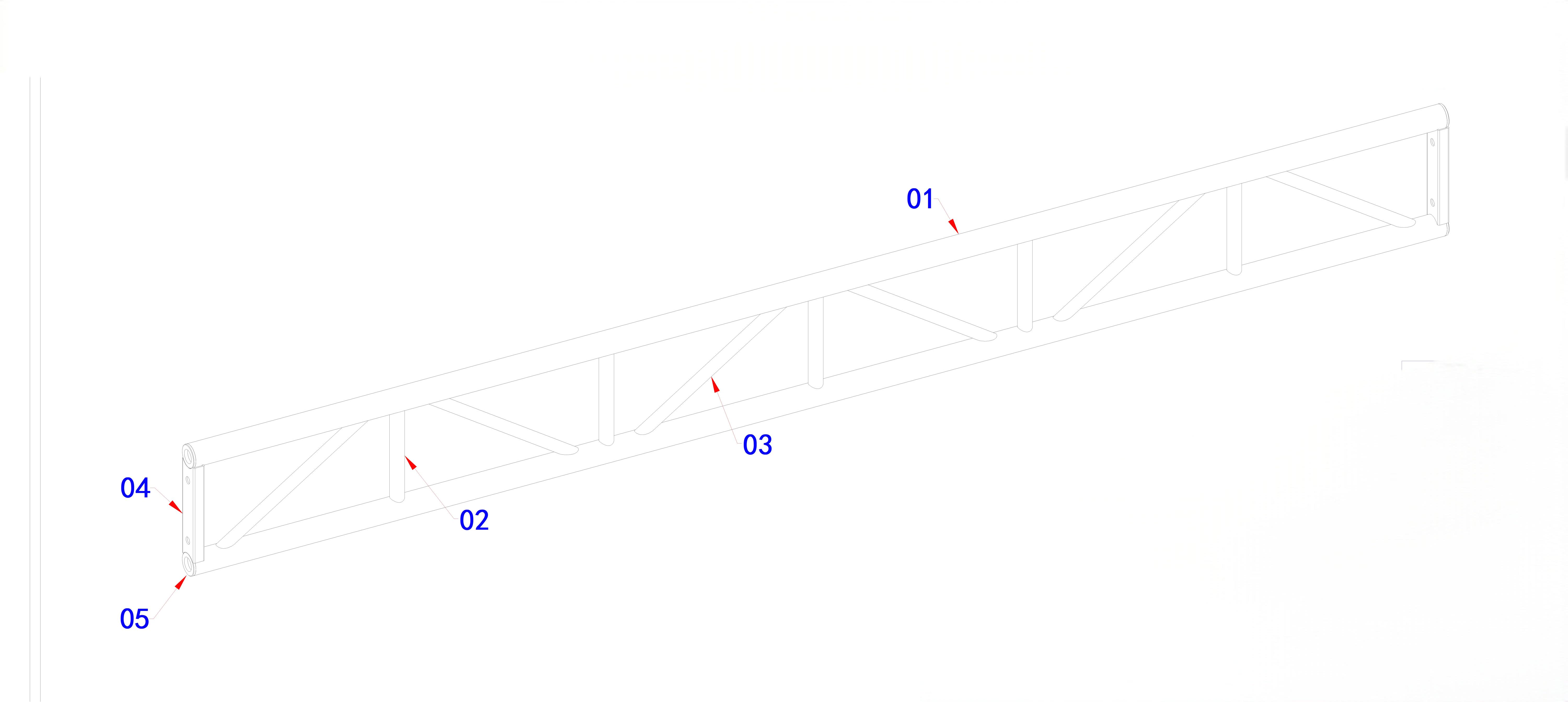

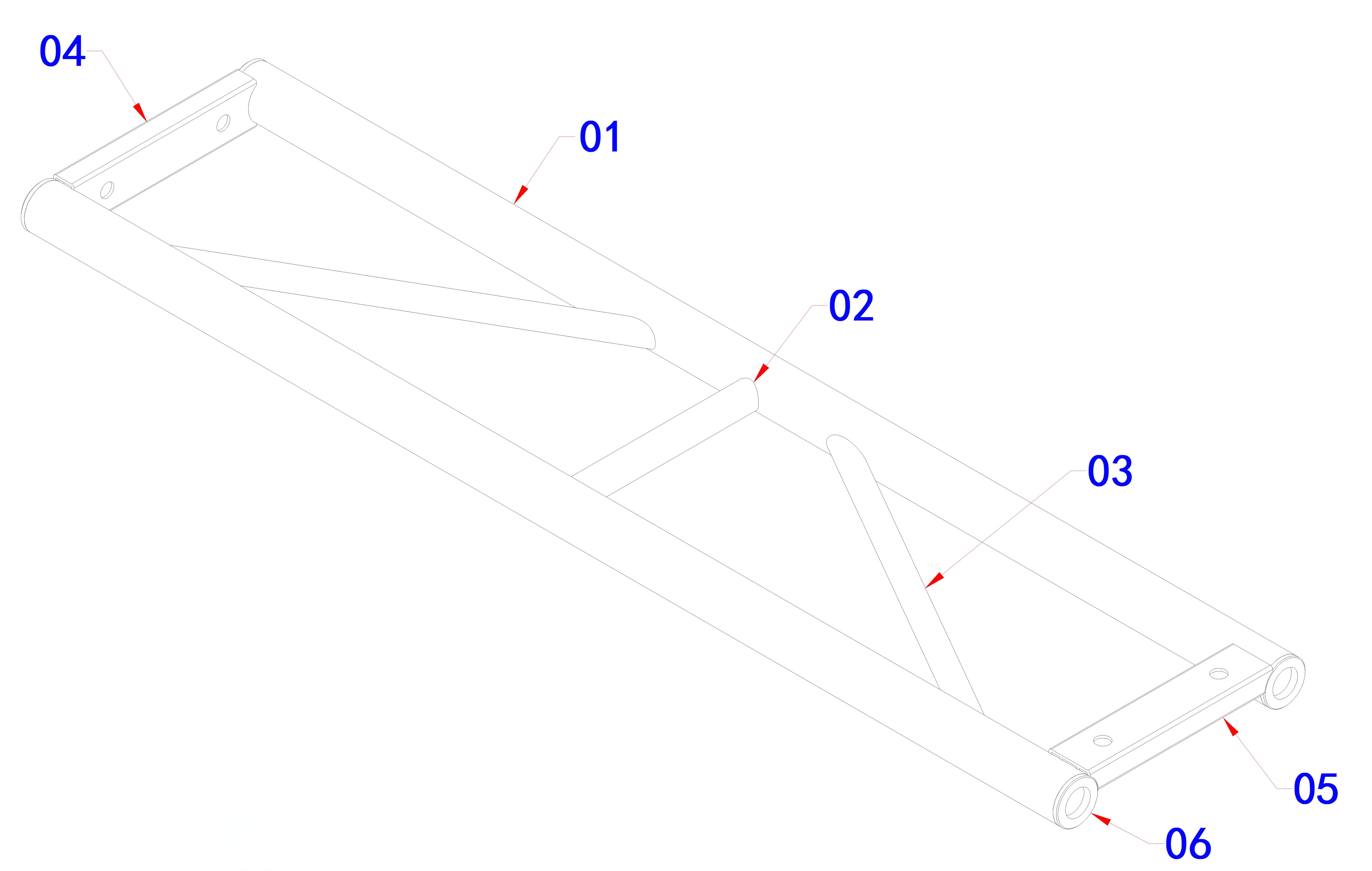

The above drawings represent different length configurations of the BL300 single row bolt-connected aluminum truss design used for temporary roof structure applications.
The drawing index is used as a reference for locating related CAD drawings and production records.
Drawing Information
Item
Details
Drawing Index
3807 / 4250
Drawing Series
BL300 Single Row Bolt-Connected Truss
Structure Type
Custom Length Aluminum Truss Component
Application
Temporary Roof Canopy Structure
Cross Section
Width 300mm × Height 50mm
Main Tube
50mm Aluminum Tube
Available Lengths
1.25m / 1.6m / 2.82m
Environment
Outdoor Roof Structure
Material
Aluminum Alloy
Connection System
Bolt Connection
Drawing Type
2D CAD Drawing
Design Purpose
Roof Canopy Structural Component
3807/4250-BL300 Aluminum Bolt Truss Design for Temporary Roof Structures
Introduction
This drawing archive presents the 3807/4250-BL300 single row bolt-connected aluminum truss component developed for temporary roof canopy structures.
The drawing is indexed under reference 3807/4250, and the related drawing files include different length configurations manufactured according to the same structural concept.
The BL300 series is not designed as an independent lighting truss product. Instead, it functions as a structural component integrated into customized roof canopy systems.
By providing different lengths, including 1.25m, 1.6m and 2.82m, the same truss series can be adapted to different roof dimensions and structural layouts.
Design Overview
The 3807/4250-BL300 adopts a modular bolt-connected structure.
Compared with fixed-length welded structures, bolt-connected truss components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible assembly;
Customized structural configuration.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For temporary roof structures, individual truss components are only one part of the complete engineering system.
The final configuration depends on:
Overall roof span;
Structural layout;
Roof covering method;
Environmental conditions;
Equipment requirements;
Installation conditions.
Material selection also affects structural performance. Aluminum alloy is widely used in temporary structures because of its lightweight characteristics and corrosion resistance.
For future purchasing applications, this drawing archive can be connected with:
BL300 Aluminum Bolt Truss
Possible product configurations:
BL300 × 1.25m
BL300 × 1.6m
BL300 × 2.82m
The drawing archive demonstrates Dragon Stage's custom design capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the BL300 bolt-connected aluminum truss mainly used for?
The BL300 is mainly designed as a structural component for temporary roof canopy structures and customized event structures.
2. Why are different BL300 lengths included in one drawing archive?
Because these drawings belong to the same structural series and use the same design concept. Different lengths are developed according to different roof structure requirements.
3. Can BL300 truss lengths be customized?
Yes. The length can be customized according to project dimensions, structural requirements and installation conditions.
4. What is the difference between BL300 bolt truss and lighting truss?
The BL300 design shown in this archive focuses on roof structure applications. Lighting truss systems are usually designed for equipment suspension and event lighting applications.
5. Can Dragon Stage provide complete roof structure design?
Yes. Dragon Stage can provide customized solutions including structural layout, component selection and manufacturing support.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
