Circular aluminum trusses have become increasingly popular in modern event structures because they provide unique visual effects and flexible lighting possibilities.
They are widely used in:
Concert stages
Wedding events
Exhibition displays
Corporate events
Television productions
Nightclubs
Architectural installations
Compared with traditional straight truss systems, circular trusses can create:
360-degree lighting coverage
A central visual focus
Balanced stage aesthetics
Flexible fixture arrangements
However, many customers have a common misunderstanding:
"Can a standard straight truss simply be connected or bent into a circle?"
The answer is no—not for a professional event structure.
A circular aluminum truss is not customized simply because it has a curved shape.
The real reason for customization is that every event has different requirements, including:
Stage design requirements
Lighting layout requirements
Load-bearing requirements
Installation environment
Safety considerations
Therefore, professional circular aluminum trusses are created through a complete process:
8. Common Mistakes When Ordering Circular Aluminum Trusses
Mistake 1: Providing Only the Diameter
A customer may say:
"I need a 6m circular truss."
However, additional information is required:
Inner diameter or outer diameter?
What equipment will be installed?
Indoor or outdoor?
Ground-supported or suspended?
Mistake 2: Designing Appearance Before Safety
A visually attractive structure still needs to satisfy:
Load requirements
Stability requirements
Installation requirements
Mistake 3: Ignoring Installation Environment
A structure designed for outdoor touring may not be suitable for an indoor venue with limited space.
Mistake 4: Assuming All Circular Trusses Are the Same
Different manufacturers may use different:
Materials
Tube thickness
Connection systems
Manufacturing standards
A circular shape alone does not define structural performance.
9. Example: 6m Diameter Custom Circular Aluminum Lighting Truss Ring
A custom circular truss project usually begins with a specific requirement rather than an existing product.
For example:
A customer may require:
A circular lighting structure
Specific diameter
Professional lighting support
Stable installation
The manufacturer then evaluates:
Required loads
Structural configuration
Support method
Manufacturing feasibility
The final solution may include additional structural elements, such as a center support beam, to satisfy the project's performance requirements.

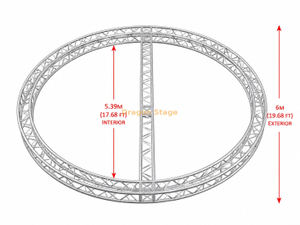

The 6m Diameter Custom Circular Aluminum Lighting Truss Ring with Center Support Beam is an example of how a circular truss can be customized according to real event requirements.
Frequently Asked Questions
Why do circular aluminum trusses require custom fabrication?
Because every event has different requirements for appearance, load capacity, dimensions, and installation conditions. Custom fabrication allows the structure to meet both performance and safety requirements.
Can a standard straight aluminum truss be converted into a circular truss?
Professional circular trusses are usually not made by simply connecting straight sections. The curved geometry requires specific design and fabrication.
What information is needed for a custom circular truss quotation?
Usually:
Diameter requirements
Inner or outer dimension
Application
Lighting equipment load
Installation method
Indoor or outdoor environment
Does circular truss customization only depend on diameter?
No. Diameter is only one factor. Load requirements, truss size, connection system, and installation conditions are equally important.
Which connection system is better for circular truss: spigot or bolt?
Neither is universally better. Spigot systems are often preferred for fast outdoor event installation, while bolt systems can be more suitable for indoor environments with limited installation space.
Can circular aluminum trusses support moving head lights?
Yes, if the structure is properly designed according to the equipment load and installation requirements.
