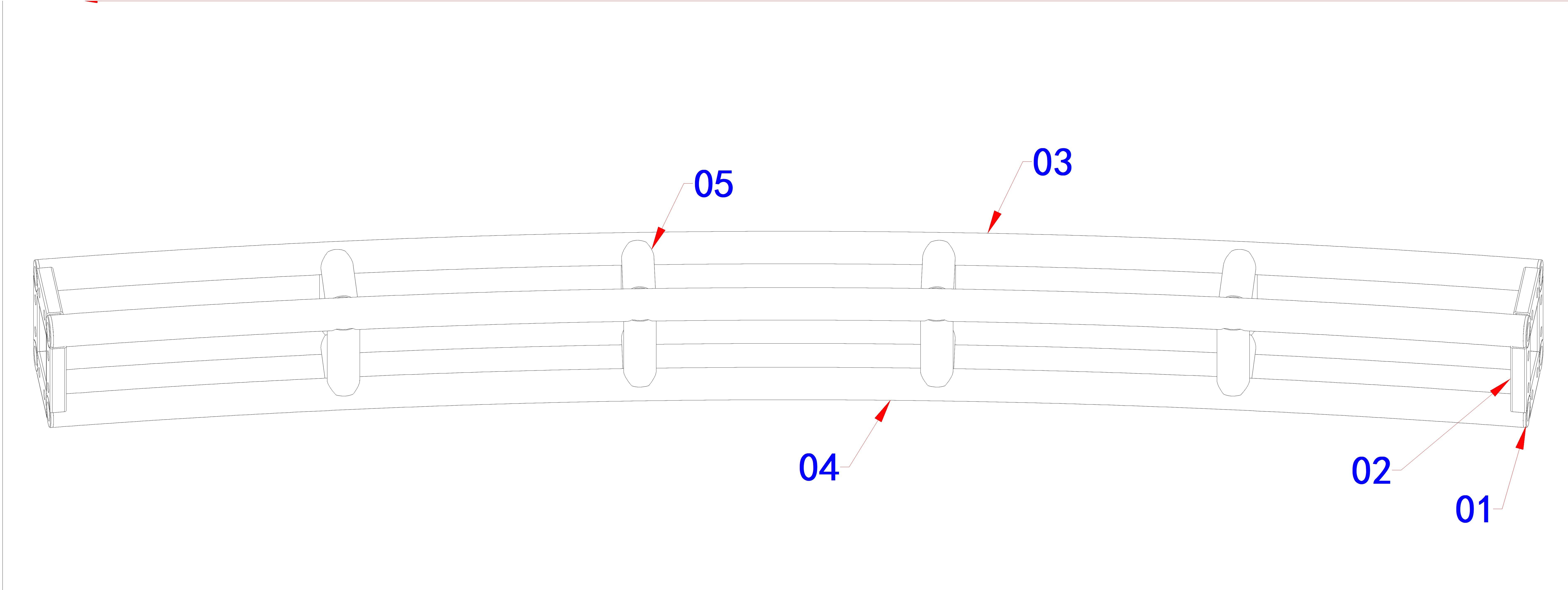

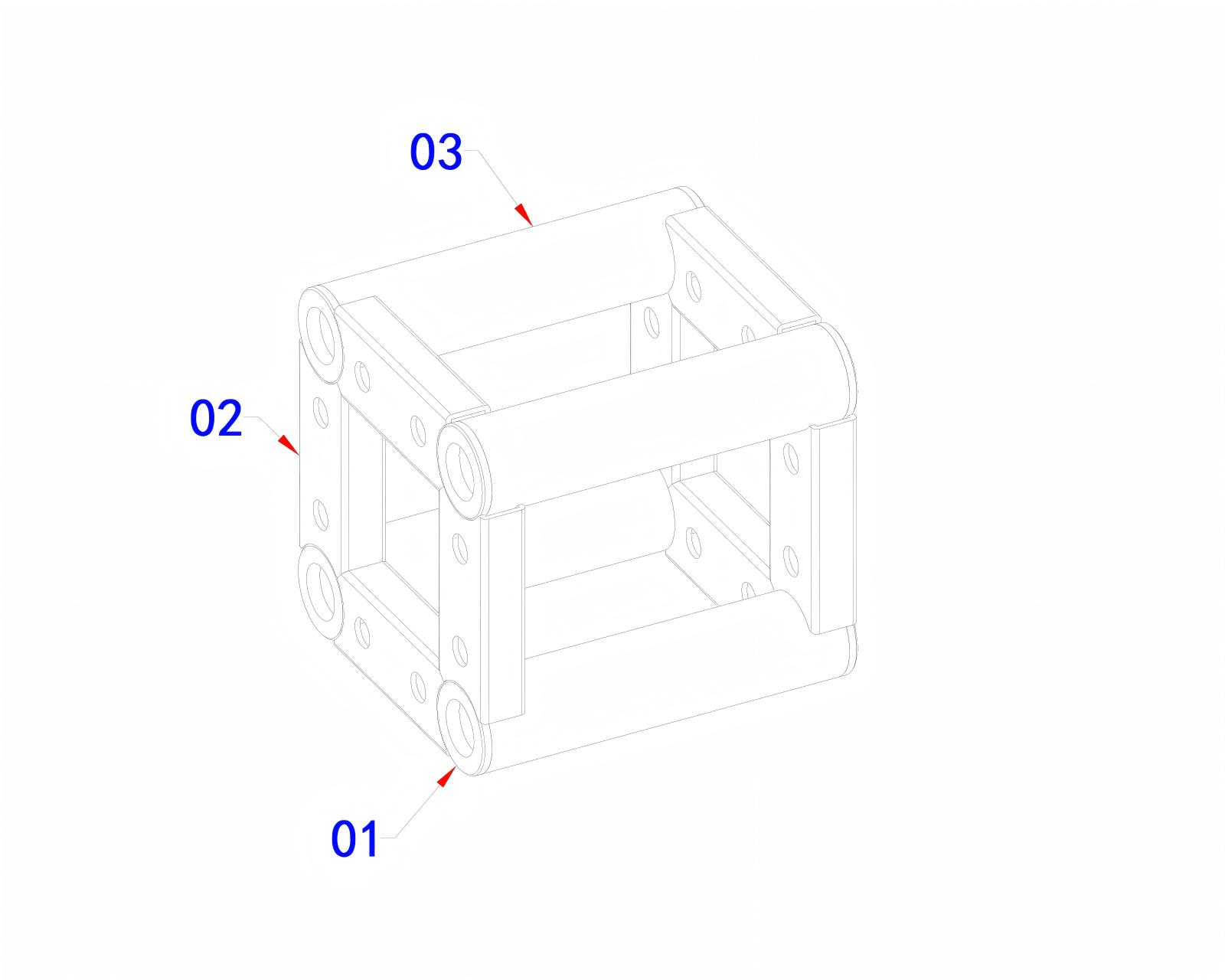

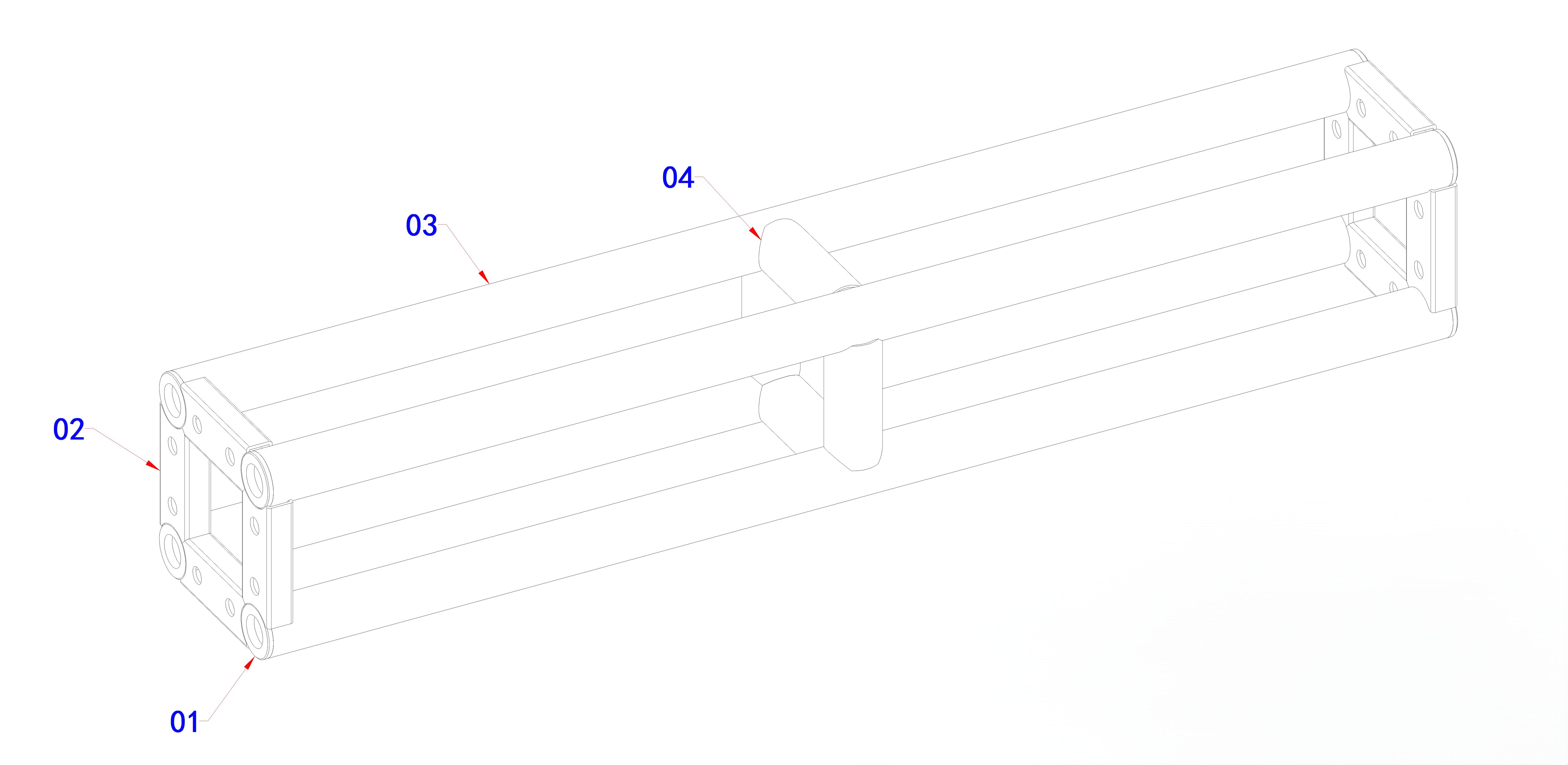

The above drawings represent different length and curved configurations of the BS200 round tube bolt-connected aluminum truss design developed for outdoor roof structures, tent frameworks and small event applications.
The drawing indexes are used as references for locating related CAD drawings and production records.
4062/4327-BS200 Round Tube Bolt Truss Design for Outdoor Roof Structures
Introduction
This drawing archive presents the 4062/4327-BS200 round tube bolt-connected aluminum truss component developed for outdoor canopy structures, tent frameworks and small event applications.
The drawing is indexed under references 4062 and 4327, and the related drawing files include different length configurations and curved designs manufactured according to the same structural concept.
Unlike standard straight lighting truss systems, the BS200 round tube bolt-connected design is developed as a flexible structural component for customized applications.
By providing different straight lengths, short connection sections and curved configurations, the same truss series can be adapted to different roof layouts, canopy designs and event structures.
Design Overview
The 4062/4327-BS200 adopts a modular bolt-connected structure using aluminum round tubes and end plate connections.
Compared with fixed welded structures, bolt-connected truss components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible assembly;
Customized structural configuration.
The round tube design provides a smooth appearance and is suitable for applications where both structural function and visual appearance are important.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For outdoor temporary structures, individual truss components are only one part of the complete structural system.
The final configuration depends on:
Overall roof dimensions;
Structural layout;
Roof covering material;
Wind environment;
Equipment requirements;
Installation conditions.
Curved truss components require special consideration because the radius, connection position and loading condition can affect the final structural performance.
Material selection also affects structural performance. Aluminum alloy is widely used in temporary structures because of its lightweight characteristics, corrosion resistance and suitable surface appearance.
For future purchasing applications, this drawing archive can be connected with:
BS200 Round Tube Bolt Truss
Possible product configurations:
BS200 × 0.2m
BS200 × 1.2m
BS200 Custom Curved Truss
The drawing archive demonstrates Dragon Stage's custom design capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the BS200 round tube bolt-connected truss mainly used for?
The BS200 round tube truss is mainly designed for outdoor canopy structures, tent frameworks, small event roofs and customized lightweight structures.
2. Can BS200 truss be manufactured as curved sections?
Yes. The BS200 system can be customized into curved configurations according to required radius and project design.
3. Why are different lengths included in one design archive?
Because these drawings belong to the same structural series and use the same connection concept. Different configurations are developed according to different project requirements.
4. What is the difference between BS200 round tube truss and standard lighting truss?
The BS200 round tube design focuses more on customized structures, canopy frameworks and decorative applications, while standard lighting truss systems are mainly designed for equipment suspension.
5. Can Dragon Stage provide customized canopy and roof structure solutions?
Yes. Dragon Stage can provide customized solutions including structural layout, component selection and manufacturing support.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
