2021/3404-BS300 Curved Round Tube Bolt-Connected Aluminum Truss Design for Lighting and Decorative Structures
Drawing File Reference
Drawing Index
2021 / 3404
Related Drawing Files

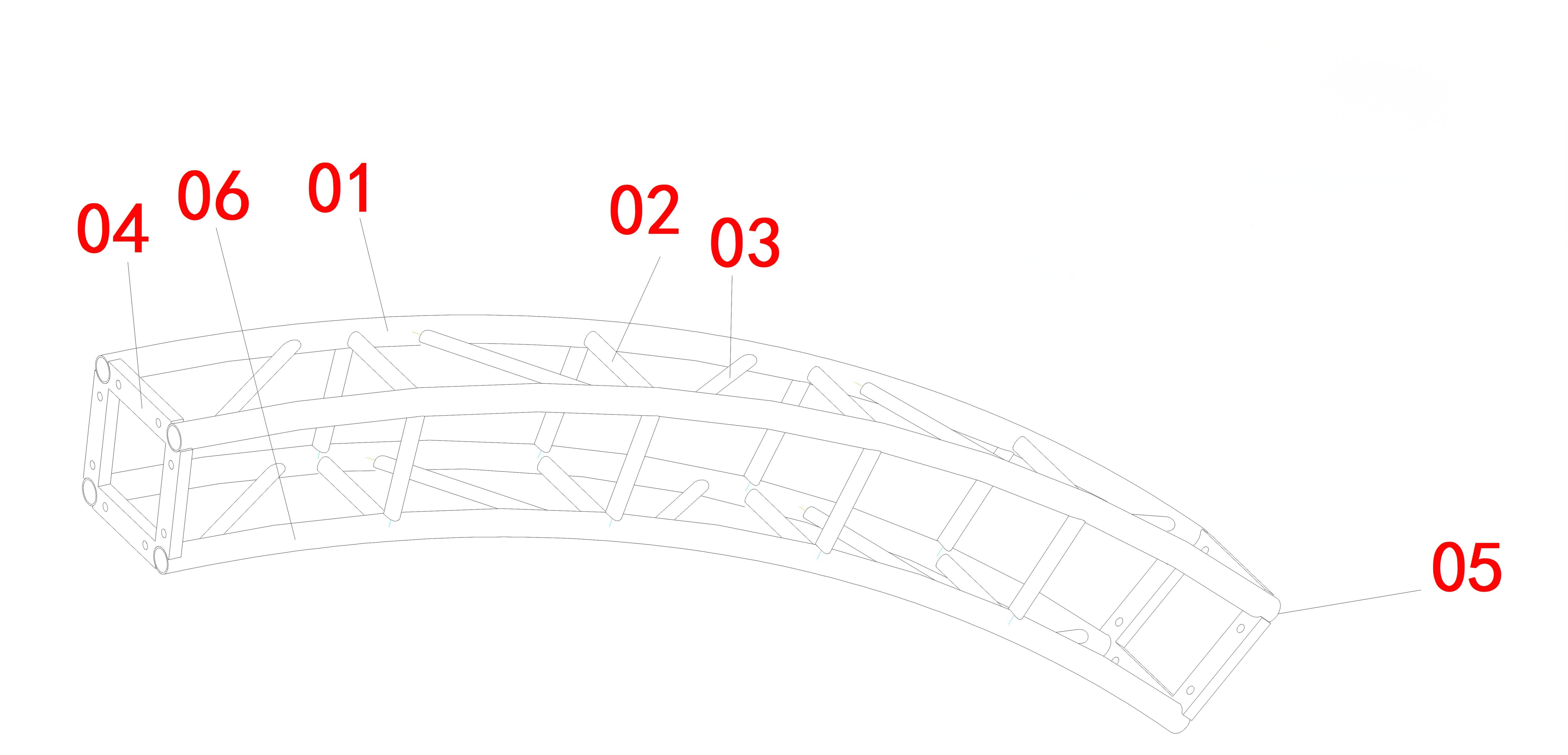

The above drawing represents a curved configuration of the BS300 round tube bolt-connected aluminum truss design used for lighting structures, decorative installations and customized event applications.
The drawing index is used as a reference for locating related CAD drawings and production records.
Drawing Information
Item
Details
Drawing Index
2021 / 3404
Drawing Series
BS300 Curved Round Tube Bolt-Connected Truss
Structure Type
Customized Curved Aluminum Truss Component
Application
Indoor and Outdoor Lighting Structure / Decorative Structure
Cross Section
Width 300mm × Height 300mm
Main Tube
50mm Aluminum Round Tube
Curvature Radius
R3.6m
Environment
Indoor and Outdoor Applications
Material
Aluminum Alloy
Connection System
Bolt Connection
Drawing Type
2D CAD Drawing
Design Purpose
Curved Lighting and Decorative Structure Component
2021/3404-BS300 Curved Bolt Truss Design for Lighting and Event Structures
Introduction
This drawing archive presents the 2021/3404-BS300 curved round tube bolt-connected aluminum truss component developed for lighting structures, decorative frameworks and customized event installations.
The drawing is indexed under reference 2021/3404, and the related drawing file represents a customized curved configuration based on the BS300 round tube bolt-connected truss design.
Unlike straight truss sections, curved truss components are mainly used when the project requires a special visual appearance, circular layout or curved lighting arrangement.
The BS300 curved truss combines a 300mm × 300mm structural section, 50mm aluminum round tube design and bolt connection system to provide a flexible solution for indoor and outdoor event structures.
Design Overview
The 2021/3404-BS300 adopts a curved modular bolt-connected round tube structure.
Compared with welded curved structures, bolt-connected curved truss components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible installation;
Customized structural layouts.
The curved design allows the truss to be integrated into structures requiring:
Arc-shaped lighting arrangements;
Decorative curved frameworks;
Circular or semi-circular event structures;
Customized entertainment installations.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For curved truss structures, the individual curved section is only one part of the complete structural system.
The final configuration depends on:
Curvature radius;
Overall structure layout;
Equipment loading;
Installation method;
Supporting conditions;
Indoor or outdoor environment.
Curved structures usually require customized design because radius, connection points and supporting methods directly affect the final installation.
Material selection also affects structural performance. Aluminum alloy is widely used in event structures because of its lightweight characteristics, corrosion resistance and appearance quality.
For future purchasing applications, this drawing archive can be connected with:
BS300 Curved Round Tube Bolt Truss
Possible product configuration:
BS300 Curved Truss R3.6m
The drawing archive demonstrates Dragon Stage's custom design capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the BS300 curved bolt truss mainly used for?
The BS300 curved bolt truss is mainly designed for curved lighting structures, decorative frameworks and customized event installations.
2. Can BS300 truss be manufactured with different radius sizes?
Yes. The curved radius can be customized according to project requirements, structural layout and installation conditions.
3. What is the difference between curved truss and straight truss?
Straight truss sections are mainly used for linear structures, while curved truss sections are used when projects require arc-shaped layouts or special visual designs.
4. Can this curved truss be used outdoors?
Yes. It can be used for outdoor applications, but the final structure should consider environmental conditions, especially wind loads and supporting methods.
5. Can Dragon Stage provide complete curved lighting structure solutions?
Yes. Dragon Stage can provide customized solutions including curved truss design, structural configuration and manufacturing support.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
