18x18x10m Outdoor Concert Roof Truss Stages

5 0 Reviews

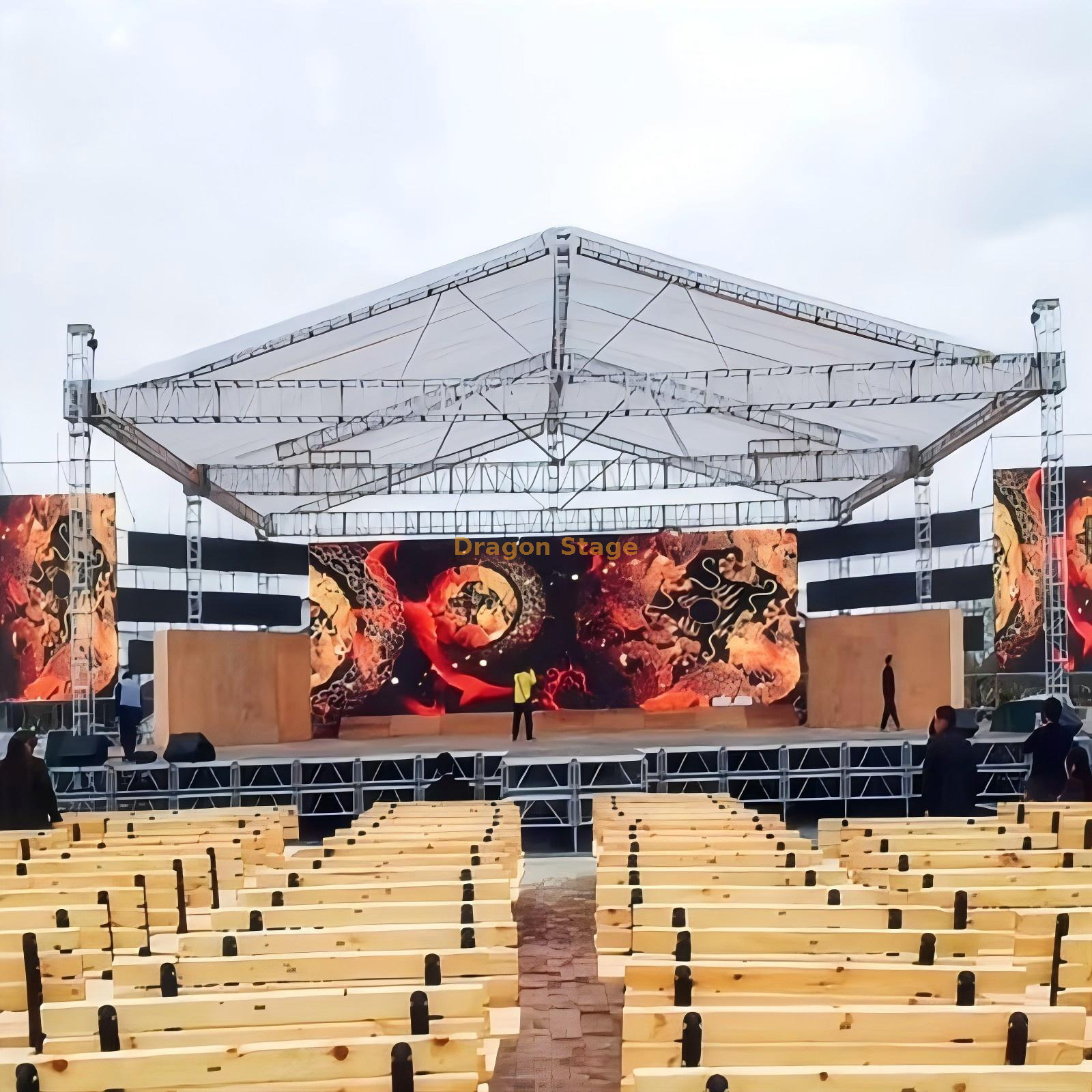

total sizes 18m long and 18m deep and 10m high Outdoor Concert Roof Truss Stages

Price: ￥ 160852 - 175372


fea:	standard premium
Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight: 3820kg

packing volume: 52cbm

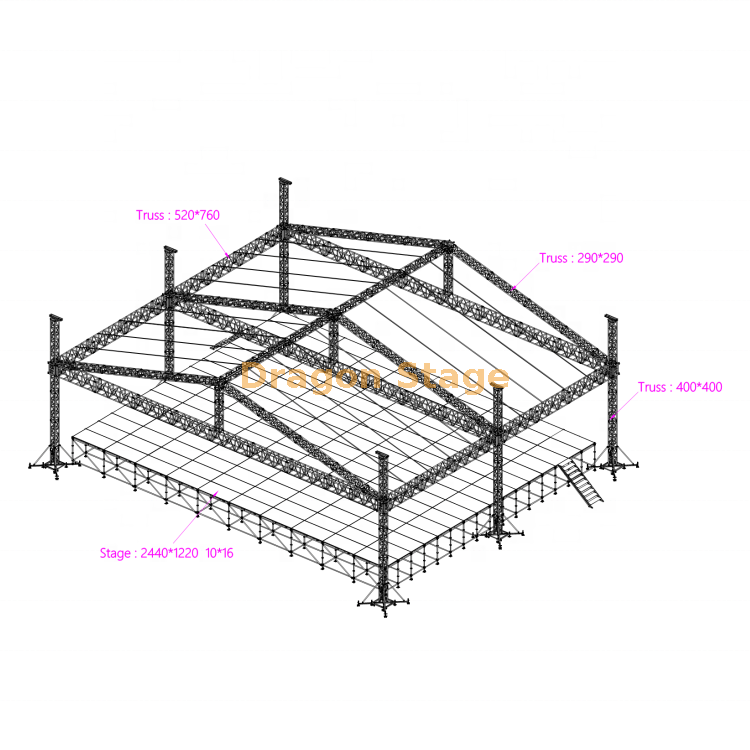

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
18.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	18pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
18.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	12pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.80 m	50×3.0	CS289×289	3pcs
18.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
9.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.20 m	50×3.0	CS289×289	6pcs
9.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL30,289*50	28pcs
		2.00 m	50×3.0	CL30,289*50	14pcs
		1.20 m	50×3.0	CL30,289*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			28pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		474.96	1pcs

packing weight: 4330kg

packing volume: 59cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
18.00 m Beam(front)	3 sets	3.00 m	50×4.0	CS520×760	18pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
18.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	12pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			0pcs
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.80 m	50×3.0	CS289×289	3pcs
18.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
9.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.20 m	50×3.0	CS289×289	6pcs
9.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL30,289*50	28pcs
		2.00 m	50×3.0	CL30,289*50	14pcs
		1.20 m	50×3.0	CL30,289*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			28pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		474.96	1pcs

System Advantages for Professional Event Producers

Extreme Height Advantage (10M): The exceptional height of 10 meters provides outstanding sightlines for massive crowds, allows for two or three-tier stage set designs, and accommodates extremely large LED screen backdrops or vertical line arrays.
Robust Ground Support: The system includes 6 Frame Tower sets, equipped with heavy-duty Steel Bases, Spigot Sleeve Blocks, and 6 Manual Hoists (2 Tons). This comprehensive package ensures safe, mechanically assisted lifting and dependable stability.
High Payload Capacity: The strategic deployment of the CS500x600 series for the main load-bearing beams ensures that the structure can reliably handle multi-ton loads of professional lighting, sound, and staging equipment.
Efficiency in Logistics: Despite its size, the system is modular, packing efficiently (approx. 52 cbm total packing volume) and features the Spigot connection system, which dramatically cuts down labor time compared to traditional bolt connections.

This 18x18x10m Roof Truss System is built for impact, engineered for safety, and designed for the rigorous demands of the global concert and festival circuit.
