20x12x11m Outdoor Led And Sound Roof Truss Stage

5 0 Reviews

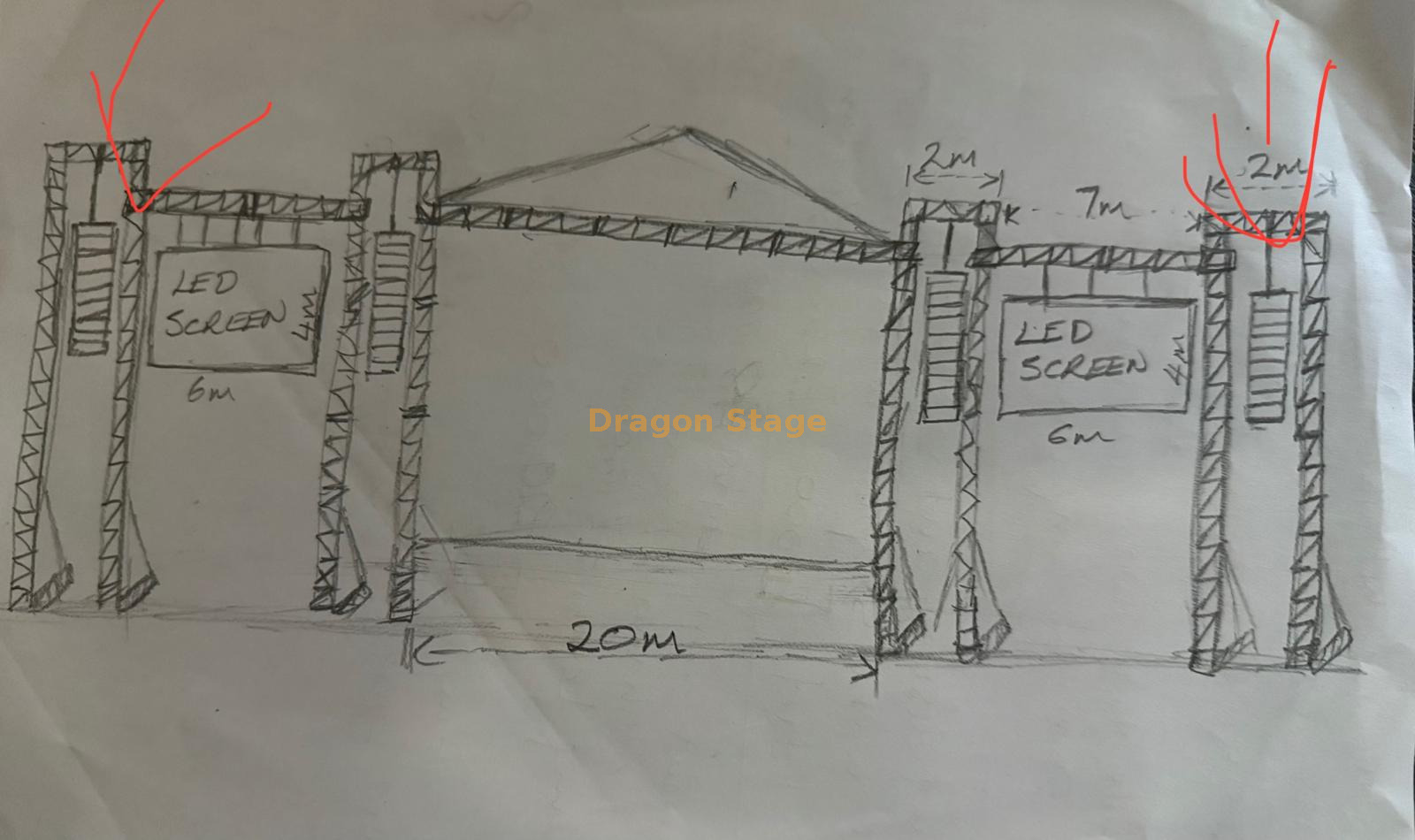

This is a 20m wide,12m deep, and 11m high main body Outdoor LED and Sound Roof Truss Stage

There are 6 wings, 4 wings are 2m wide for the speaker, and 2 wings are 7m wide for the LED screen

Price: ￥ 186742


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight: 4550kg

packing volume: 60cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS500×600	12pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	8pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
10.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	4pcs
beam cube	6 faces	CS389×389			8pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	2.00 m	50×3.0	CS389×389	2pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	4pcs
		2.20 m	50×3.0	CS389×389	4pcs
10.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL40,389*50	20pcs
		2.00 m	50×3.0	CL40,389*50	10pcs
		2.20 m	50×3.0	CL40,389*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	0pcs
	1	Connect plate with clamp		CS389×389	2pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		388.96	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
4.00 m Wings Beam	6 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	12pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.00 m Wings Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	6pcs
Wings Tower	Spigot Sleeve Block M				6pcs
	Steel Base M				6pcs
	Top Section M				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
