Dragonstage
packing weight: 3900kg
packing volume: 51cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 14.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 12pcs | |||
| 2.00 m | 50×4.0 | CS520×760 | 3pcs | |||||
| 1.00 m | 50×4.0 | CS520×760 | 0pcs | |||||
| 20.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 12pcs | |||
| 2.00 m | 50×4.0 | CS520×760 | 0pcs | |||||
| 1.00 m | 50×4.0 | CS520×760 | 4pcs | |||||
| 5.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 6pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| beam cube | 6 faces | CS520×760 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block L | 6pcs | ||||||
| Steel Base L | 6pcs | |||||||
| Top Section L | 6pcs | |||||||
| Manual hoist,BA05 2Tons | 6pcs | |||||||
| Spigot Hinge Section,Height 1m | 6pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 6pcs | |||||||
| Long outrigger | 24pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 3 sets | 1.40 m | 50×3.0 | CS289×289 | 3pcs | |||
| 20.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 2pcs | |||||
| 7.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 6pcs | |||||
| 2.20 m | 50×3.0 | CS289×289 | 6pcs | |||||
| 7.20 m Ladder truss | 16 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 16pcs | |||||
| 2.20 m | 50×3.0 | CL30,289*50 | 16pcs | |||||
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | ||||
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs | |||||
| 1 | Connect plate with clamp | CS289×289 | 3pcs | |||||
| Single clamp | 32pcs | |||||||
| Double clamp | 12pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 409.36 | 1pcs | ||||||

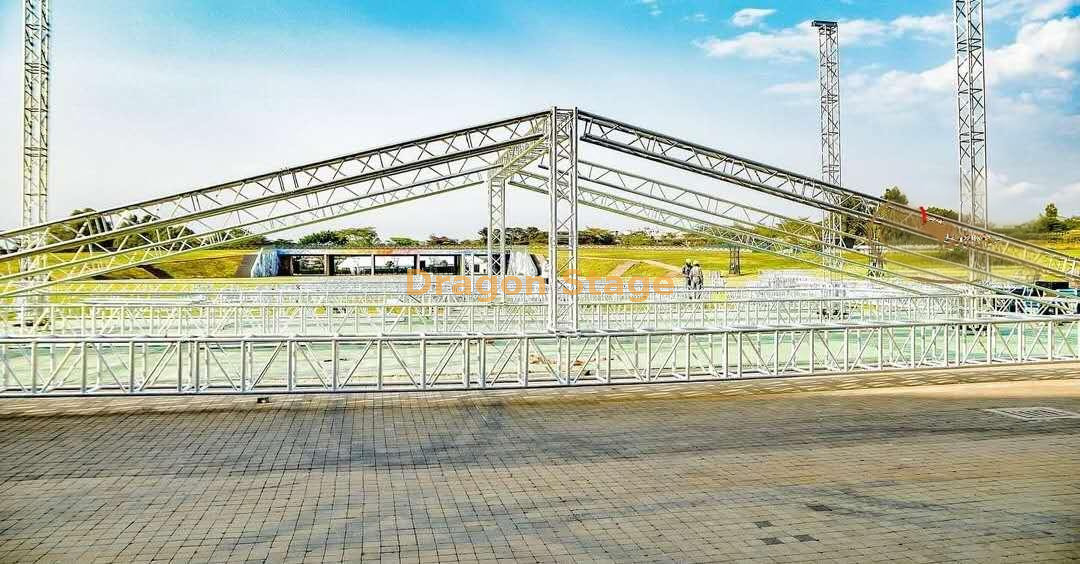

The Dragon Stage Kenya Large Event Roof Truss Tent is a custom-engineered solution designed for maximum impact and unwavering structural reliability. With massive dimensions of 20m long, 14m wide, and 6m high, this system provides essential weather protection and critical rigging support for high-profile concerts, festivals, and corporate events. Built using robust heavy duty aluminum pitch roof truss system components (including CS520x760 beams), it is the ultimate professional event roof structure 20m span for any large-scale outdoor production.
Large truss systems face dual demands: providing immense hanging capacity for production equipment and ensuring fast, safe assembly in various environments.
This large outdoor concert truss tent for sale addresses these challenges head-on:
Uncompromising Strength: The main structure utilizes professional-grade Aluminum square truss 520x760mm for the main beams and 389x389mm for the pillars, guaranteeing a high loading capacity necessary for heavy line arrays and lighting rigs.
Complete Lifting Solution: The system is comprehensive, including 6 sets of 2 Ton Manual Hoists and supporting rigging accessories (Fibre slings, Sleeve Blocks, etc.). This ensures the mobile stage roof structure 14m deep can be assembled and lifted efficiently and safely using the ground-up method.
Enhanced Stability: The inclusion of 6 sets of steel bases and 24 long outriggers is vital for anchoring the aluminum truss tent 6 meter height, mitigating risks from high winds and ensuring stability across the large footprint.
The entire structure is fabricated from high-grade Aluminum (50x4.0mm and 50x3.0mm main tubes), offering an optimal balance of strength and portability. The heavy-duty component list ensures that this A-frame roof truss system for large scale events can support demanding lighting, video, and audio needs. The assembly uses industry-standard components like Top Sections and Sleeve Blocks for a consistent and reliable build every time.
The inclusion of a large, full-coverage PVC roof canopy (available in Blue or custom colors) provides immediate protection against sun and rain, essential for continuity during long events. This makes the system a reliable "tent" that also functions as a highly technical rigging structure. The custom design, specified for a Kenya Large Event, demonstrates its adaptability to specific geographical and technical requirements.
A: No, the price listed is typically for the roof truss structure, lifting gear, and canopy only. The performance stage platform (decking and legs) is usually a separate modular system.
A: The 24 long outriggers extend the horizontal footprint of the steel bases at the bottom of the pillars. This dramatically increases the structure's resistance to tipping and provides necessary support against uplift forces from wind or asymmetric loads.
A: While designed as a 20x14m system, the modular nature of the trusses allows for custom reconfigurations. However, any reduction in size must be re-engineered and re-certified to ensure the safe hanging load capacity is maintained.
A: The PVC roof canopy is secured to the structure using various clamps (single and double) and connection plates, ensuring it is taut and resistant to flapping or tearing in windy conditions.
