Large Concert Line Array Stage Roof Truss 24x16x10m

5 0 Reviews

this is a custom Large Concert Line Array Stage Roof Truss system

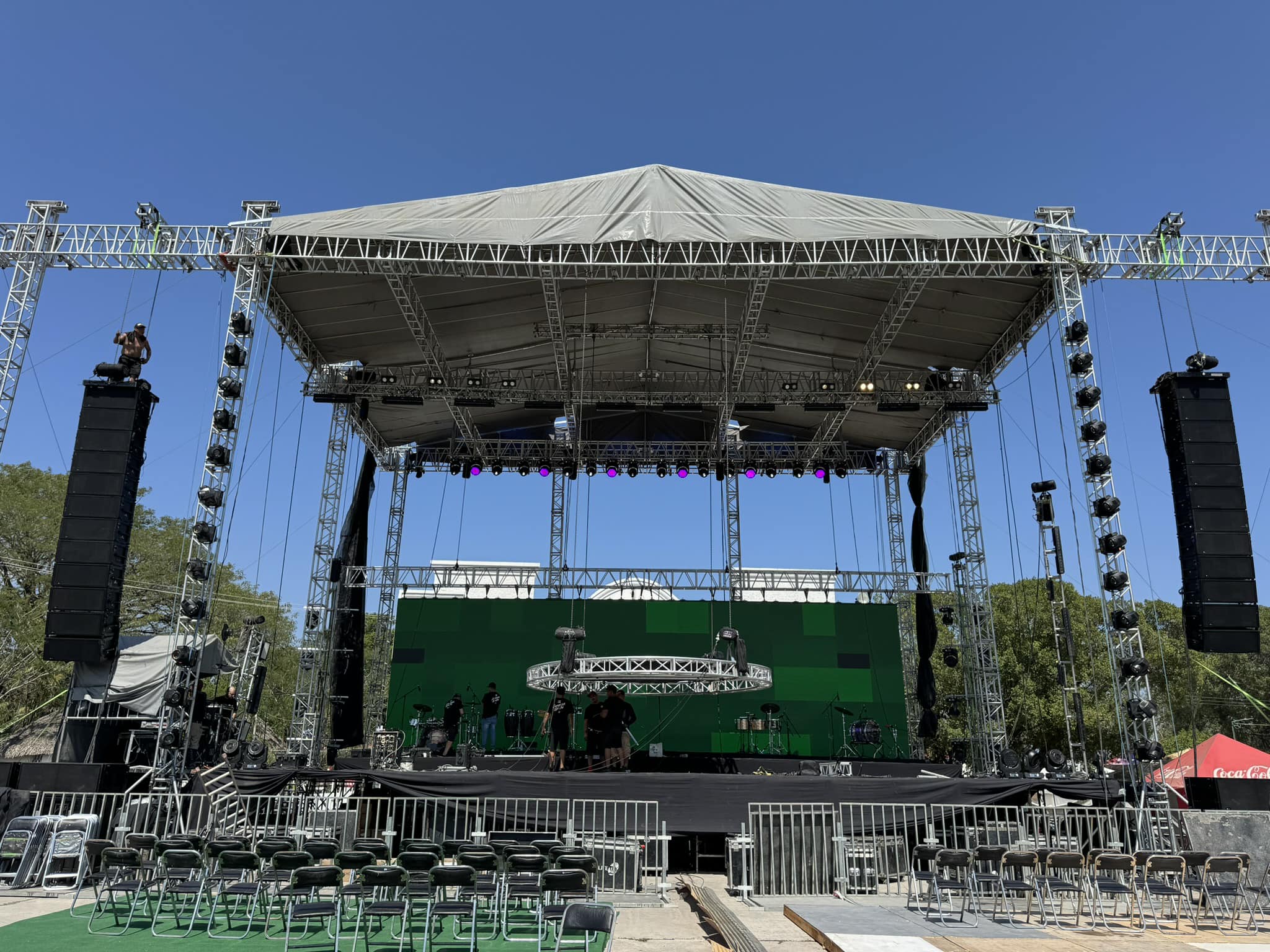

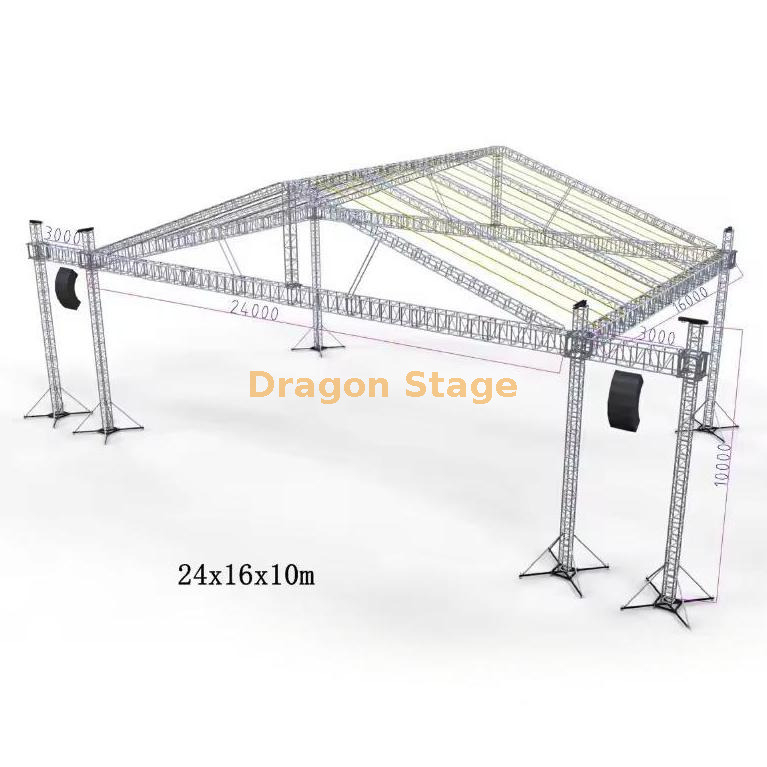

the overall net sizes are 24m long, 16m deep and 10m high, the line array truss is 3m wide.

Price: ￥ 199122


Availability:



Inquire

Brand:
Dragon Stage

Product Description

Large Concert Line Array Stage Roof Truss

packing weight: 4500kg

packing volume: 56cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
24.00 m Beam(front)	2 sets	3.00 m	50×4.0	CS600×760	16pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	0pcs
16.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS600×760	10pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	2pcs
9.00 m Pillar	4 sets	3.00 m	50×3.0	CS450×450	12pcs
		2.00 m	50×3.0	CS450×450	0pcs
		1.00 m	50×3.0	CS450×450	0pcs
beam cube	6 faces	CS600×760			0pcs
Frame Tower	Spigot Sleeve Block L				4pcs
	Steel Base L				4pcs
	Top Section L				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	2.40 m	50×3.0	CS389×389	2pcs
16.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	5pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	1pcs
12.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.20 m	50×3.0	CS389×389	4pcs
12.20 m Ladder truss	14 sets	3.00 m	50×3.0	CL40,389*50	42pcs
		2.00 m	50×3.0	CL40,389*50	14pcs
		1.20 m	50×3.0	CL40,389*50	14pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	0pcs
	1	Connect plate with clamp		CS389×389	2pcs
		Single clamp			28pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		576.16	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×4.0	CS600×760	2pcs
		2.00 m	50×4.0	CS600×760	0pcs
		1.00 m	50×4.0	CS600×760	0pcs
9.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS450×450	6pcs
		2.00 m	50×3.0	CS450×450	0pcs
		1.00 m	50×3.0	CS450×450	0pcs
Wings Tower	Spigot Sleeve Block L				2pcs
	Steel Base L				2pcs
	Top Section L				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
