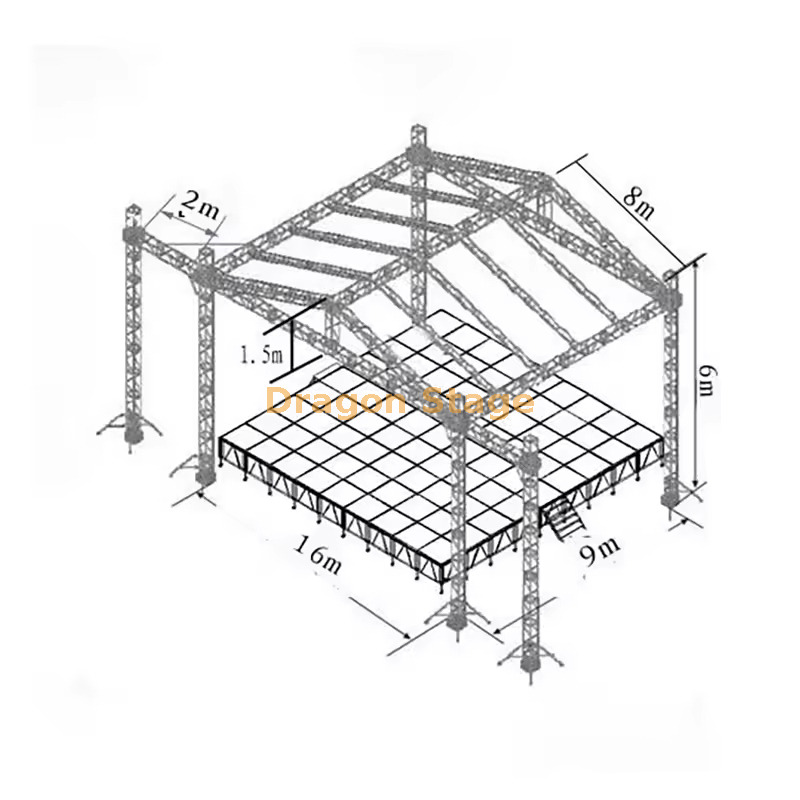

Event Concert Stage With Roof Truss 16x9x6m

5 0 Reviews

This is a custom Event Concert Stage with Roof Truss

total sizes are 16x9x6m with 2m wide speaker truss tower

Price: ￥ 88524


Availability:



Inquire

Brand:
Dragonstage

Product Description

Event Concert Stage With Roof Truss 16x9x6m

packing weight: 2230kg

packing volume: 20cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
16.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS389×389	10pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	2pcs
9.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	6pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.60 m	50×3.0	CS289×289	2pcs
9.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
8.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	8pcs
		1.20 m	50×3.0	CS289×289	4pcs
8.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	8pcs
		2.00 m	50×3.0	CL30,289*50	16pcs
		1.20 m	50×3.0	CL30,289*50	8pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			16pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		255.76	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set
