14x6x6m Portable LED Screen Truss System with Manual Chain Hoists

packing weight:990kg

packing volume:10cbm

The DragonStage 14m x 6m x 6m Portable LED Screen Truss System is a portable ground-support truss solution developed for customers who need to hang a large LED display in a temporary event environment.

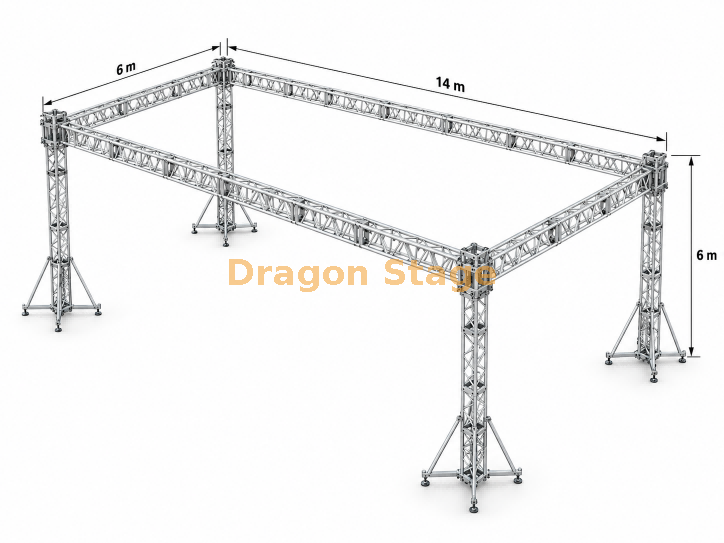

According to the customer’s request, the overall structure size is:

• 14 meters wide

• 6 meters high

• 6 meters deep

The target screen size is:

• 12 meters wide

• 4 meters high

The customer also stated an estimated LED screen weight of approximately:

• 1700kg

This product is intended as a complete portable truss solution similar in concept to the reference image, including the main aluminum truss frame, support towers, base support sections, bracing components, top beam arrangement, and manual chain hoists for lifting or positioning the LED screen.

For buyers who are comparing event truss systems, you can also review our Engineering Solution page for broader project references and system ideas.

What This Product Is

This product is essentially a portable aluminum LED screen hanging structure.

It is suitable for customers who need:

• a temporary LED display support structure

• a truss frame for events, outdoor promotions, sports viewing zones, exhibitions, or concert side visuals

• a freestanding solution that can be assembled and dismantled more easily than permanent structures

• a system that can work with manual chain hoists for screen lifting and positioning

Unlike a simple flat display frame, this configuration includes 6 meters of depth, which helps create a more stable ground-support layout and provides space for proper structural arrangement.

For related technical planning topics, customers can also review Safety Standards & Engineering Constraints and Installation Methodology for Modular Stage, Truss & Scaffold Systems.

Main Specifications

Key Features

Portable event-use structure
This system is intended for temporary use, which makes it suitable for event companies, rental companies, sports events, public viewing activities, concerts, exhibitions, and promotional activations.

Designed around a large LED screen requirement
The structure is being proposed around a customer requirement for a 12m x 4m LED screen with an approximate stated screen weight of 1700kg. This makes it suitable for large-format display projects rather than only small signage.

Manual chain hoist compatible
The customer specifically requested a solution including manual chain hoists. This makes the structure more practical where users want to lift, position, or adjust the screen without relying on electric hoists.

Ground support format
The system is not just a simple rectangular frame. It is a ground-supported truss structure with depth, towers, and support elements, making it more suitable for large event-screen use.

Custom-accessory supply
The system can be discussed as a package including the main truss body and related accessories similar to the reference picture, depending on the final confirmed requirement.

For more event-related application references, see Concert Event Applications and Stage Sound.

Typical Components of the System

A typical package for this kind of project may include:

• Main horizontal truss beams

• Vertical truss towers

• Top corner connections / junction blocks

• Ground support base sections

• Stabilizing braces or outriggers

• Manual chain hoists

• Connection hardware such as pins, clips, bolts, or spigots according to the truss series

• Related installation accessories required for the basic structure

The exact component list should be confirmed according to:

• actual truss series

• screen cabinet size and arrangement

• actual screen total weight

• lifting point arrangement

• indoor or outdoor use

• local installation conditions

Typical Applications

This product is suitable for applications such as:

• outdoor LED screen display structures

• sports event live viewing screens

• concert side screen support

• public event LED wall hanging

• exhibition and event display truss systems

• festival screen support structures

• branding and activation events

• temporary visual display systems

If the project also involves audio support or stage-related structures, customers may also refer to Typical Line Array Speakers and Engineering Solution for related ideas.

Why Choose This Type of Truss Solution

A portable LED screen truss system is often preferred because:

• it is easier to transport than a fixed civil structure

• it can be reused for multiple events

• it is more flexible for temporary event layouts

• it can be configured around different screen sizes

• it allows the structure and screen to be planned as one coordinated system

• manual hoists can make the screen-handling process more practical in some projects

This type of product is especially useful for rental companies and event contractors who need a repeatable solution.

Important Technical Note

The following information is confirmed from the customer request:

• overall structure size: 14m wide x 6m high x 6m deep

• target screen size: 12m x 4m

• target screen weight: about 1700kg

• portable truss solution requested

• manual chain hoist requested

• reference picture used for general configuration direction

However, the following items are not automatically confirmed and should not be assumed without project verification:

• allowable working load of the truss system

• wind rating

• ballast requirement

• anchoring requirement

• exact hoist quantity

• exact hoist positions

• exact truss series and section size

• engineering approval

• local compliance approval

• final accessory quantity

Those items depend on the actual project and should be confirmed before final quotation and production.

For technical reading, see Safety Standards & Engineering Constraints.

What We Need Before Final Quotation

To make the quotation more accurate, it is helpful if the customer can confirm:

• exact LED cabinet size

• exact total screen weight

• indoor or outdoor use

• whether the screen is front-hung or rear-supported

• preferred truss connection type

• whether ballast or ground anchoring will be used

• whether side banners or decorative panels are needed

• hoist quantity or preferred lifting arrangement

• installation country and site condition

This information helps turn the reference layout into a more accurate production quotation.

FAQ

Can this truss system hold a 12m x 4m LED screen?
This product is being discussed around that customer requirement, but the final structure still needs to be confirmed according to the actual LED cabinet arrangement, total weight, and installation conditions.

Is 1700kg the rated load of the truss system?
No. The 1700kg figure is the customer’s stated approximate screen weight, not a published structural rating of the truss system.

Are manual chain hoists included?
The customer requested manual chain hoists, and the system can be quoted with them. The exact quantity and arrangement should be confirmed.

Is this a portable solution?
Yes. This product is intended as a portable truss solution for temporary event use.

Can this be used outdoors?
It may be used for outdoor event projects, but the final structural solution, wind considerations, ballast, anchoring, and safety requirements must be checked according to the project.

Can the size be customized?
Yes. The width, height, depth, and screen-related arrangement can be customized according to project needs.

Does this include the LED screen itself?
Normally this product refers to the truss support structure and related accessories. The LED screen is usually quoted separately unless clearly included.

Can electric hoists be used instead of manual chain hoists?
That can be discussed as a customized option, depending on the project requirement.
