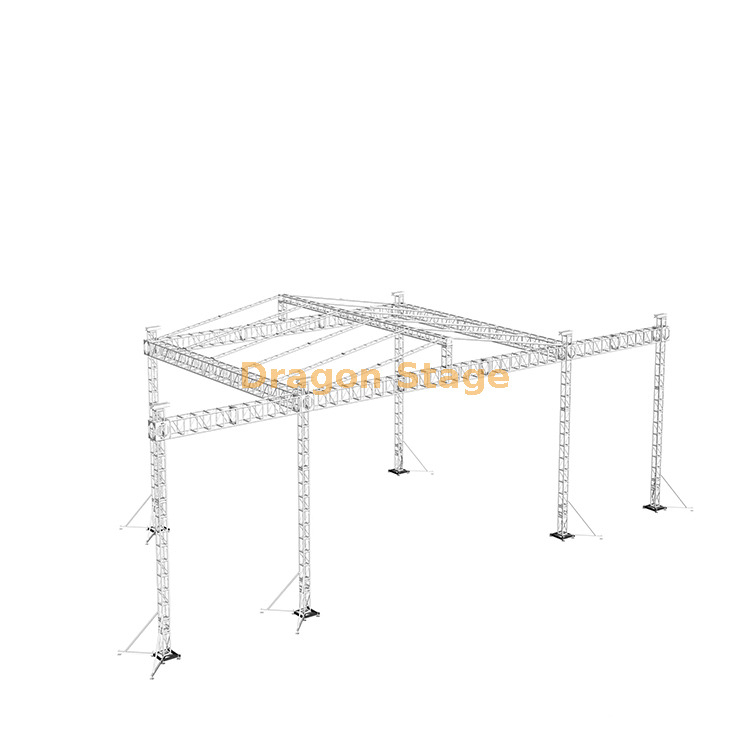

High-Capacity 9x6x6m Line Array Speaker Roof Truss System

1. Introduction: Engineering Sound & Shelter for Outdoor Events

For professional event producers, the aluminum roof truss system is more than just a frame; it’s the structural heart of a successful outdoor production. The challenge lies in securing high-value assets—like sophisticated line array speaker systems—while providing robust shelter and managing substantial cantilevered loads.

DragonStage’s 9x6x6m Line Array Speaker Roof Truss system is engineered precisely for this demand. Featuring a clear span of 9 meters wide, 6 meters deep, and 6 meters high, this custom structure integrates dedicated 2-meter wide side wings specifically designed for safe and precise speaker suspension. It delivers the critical combination of certified load capacity, rapid assembly, and essential weather protection that modern event construction requires.

2. Structural Integrity Meets Operational Efficiency

Event production managers face continuous pressure to ensure rapid setup without compromising audience and crew safety. Subpar materials or complicated connection systems are the primary pain points, leading to delays, increased labor costs, and elevated risk profiles.

DragonStage addresses these issues by leveraging CS289×289 Square Truss with 50×3.0mm main tubes across the entire structure. This robust aluminum specification provides a superior strength-to-weight ratio, crucial for heavy-duty lighting truss design and speaker rigging. The system features a full complement of technical components, including Spigot Sleeve Blocks, Steel Bases, and Top Sections for the four main pillars, ensuring a stable, ground-supported framework. This detailed component list is key to maximizing speed and structural reliability on site (Source:https://www.dragontruss.com/Download).

3. Advanced Features for Professional Rigging and Protection

This dedicated Line Array Speaker Roof Truss system offers specific design features that distinguish it as a professional-grade solution for complex audio-visual setups.

Integrated Speaker Wings for Audio Precision

Unlike generic roof structures, this 9x6x6m model includes two seamlessly integrated 2m Wings Beams and supporting Wings Pillars. These extensions are vital for suspending heavy line array speakers at the optimal height and distance from the main stage, improving sound coverage and dispersion without interfering with the stage lighting or video screen sightlines. The wings include dedicated 2-Ton Manual Hoists and Fibre Slings for secure, professional lifting (Source:https://www.prolyte.com/advice/loading-of-trusses).

Durable Weather Protection

Outdoor events require reliable overhead protection. The system includes a high-quality PVC roof canopy material, which is UV-resistant and waterproof, covering the 9x6m footprint. This coverage shields expensive equipment, performers, and the stage deck from adverse weather, ensuring show continuity and prolonging the life of electronic assets.

Comprehensive Ground Support and Stability

Stability under load and wind is non-negotiable for large-span truss. The structure incorporates Long Outriggers and Steel Bases at the tower points, providing a wide footprint for anchorage and counterbalancing the forces exerted by the roof, lighting, and suspended speakers. The use of a Spigot Hinge Section facilitates safer, easier ground assembly of the vertical towers before they are lifted into place.

4. Practical FAQ for Stage Riggers & Organizers

5. Strong Call to Action (CTA)

Equip your next major event with a certified, precision-engineered line array roof truss system built for maximum safety and efficiency.

Contact DragonStage’s technical sales team today to confirm load capacities and secure your high-capacity 9x6x6m aluminum roof truss structure.
