12x10m Ringlock Concert Stage with 2x6m Runway, LED Side Structures and 400mm Circular Truss

12x10m Ringlock Concert Stage with 2x6m Runway, LED Side Structures and 400mm Circular Truss

5 0 Reviews

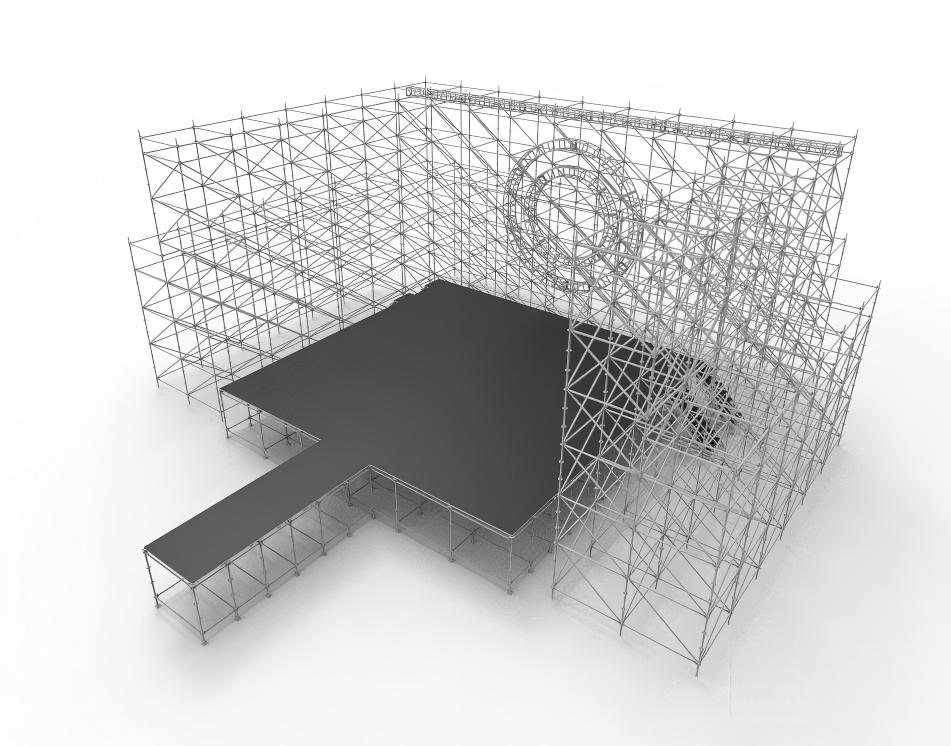

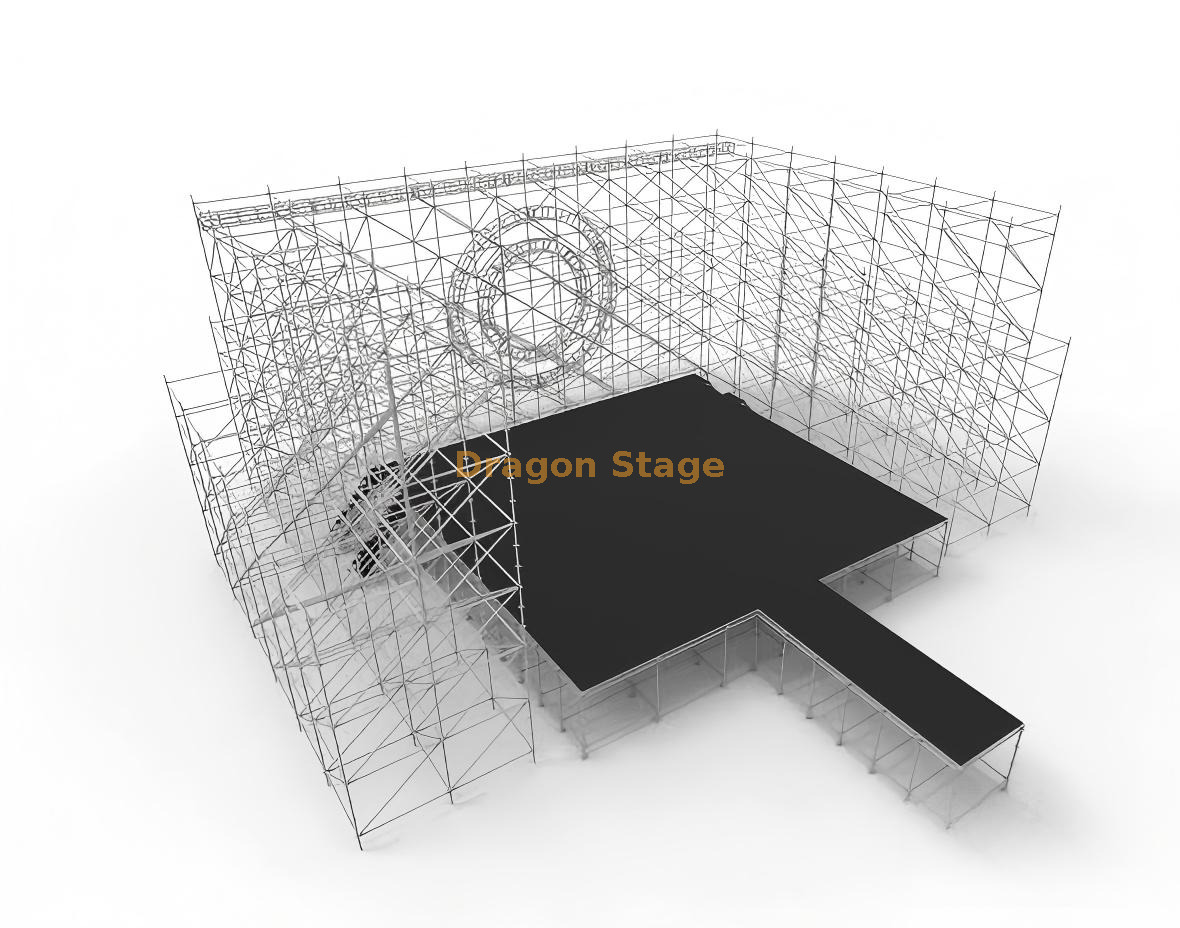

This customized 12m × 10m Ringlock concert stage system combines a 2m-high main stage, a 2m × 6m runway, four access stairs, three-sided Ringlock wall structures, approximately 4m-wide LED support areas on both sides, and a customized 400 × 400mm aluminum truss package above the stage.For other modular configurations, see our Ringlock Stage System

Price: ￥ 5380 - 152710


fea:	main stage with 4 stairs runway stage ringlock system 16m 400mm spigot truss 6m round truss 4m round truss
Availability:



Inquire

Brand:
Dragon Stage

Product Description

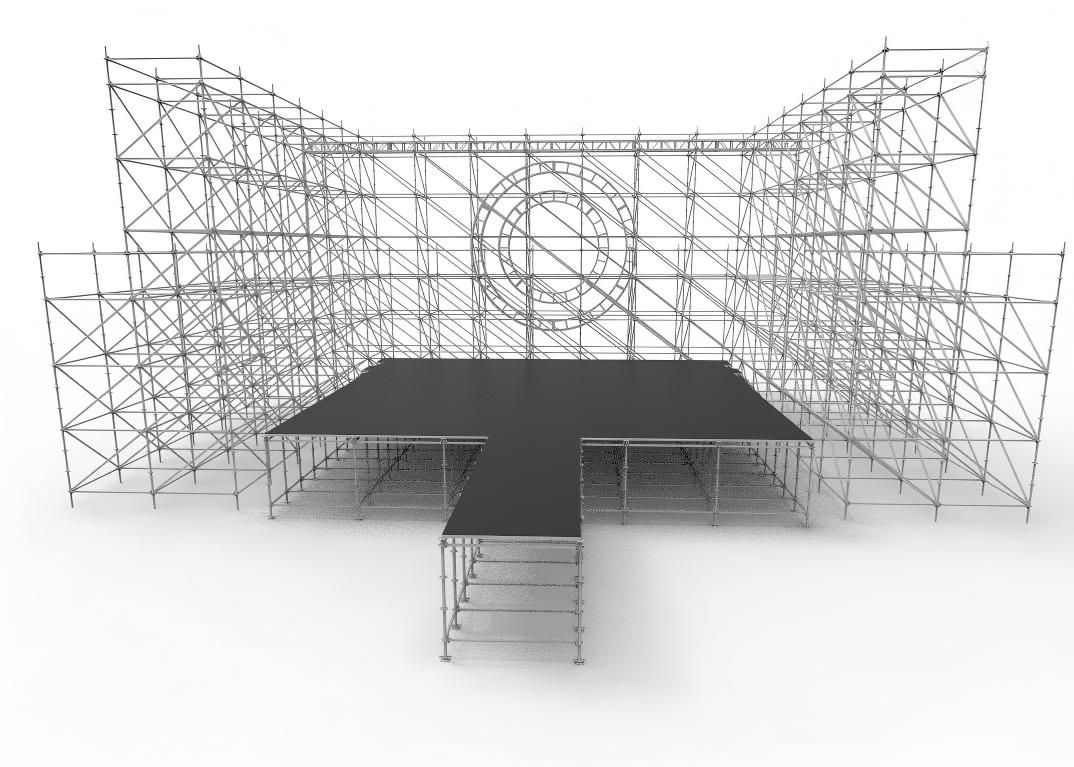

12x10m Ringlock Concert Stage with 2x6m Runway, LED Side Supports and Circular Aluminum Truss.jpg

main stage with 4 stairs

packing weight:5900kg

packing volume:16cbm

Item	Specification				Quantity
steel assembly stage	topping: 3.3x6.6ft (1x2m)		wooden		60 pcs
	LR01,pillar and inner tube		L=	2.00m	77 pcs
	LR02,horizontal pipe,length:2m				132 pcs
	LR02,horizontal pipe,length:1m				140 pcs
	LR03,diagonal pipe(long side)		L=	2.83	66 pcs
	LR03,diagonal pipe(short side)		L=	2.24	70 pcs
	Fork				77 pcs
	clamp				66 pcs
	Stage adjustable base				77 pcs
Stage Stair	wooden topping	total	8	steps	4 pcs
Stair handrail	length	3.2	meters		8 pcs

runway stage

packing weight:1140kg

packing volume:3cbm

Item	Specification			Quantity
steel assembly stage	topping: 3.3x6.6ft (1x2m)	wooden		10 pcs
	LR01,pillar and inner tube	L=	2.00m	18 pcs
	LR02,horizontal pipe,length:2m			30 pcs
	LR02,horizontal pipe,length:1m			24 pcs
	LR03,diagonal pipe(long side)	L=	2.83	15 pcs
	LR03,diagonal pipe(short side)	L=	2.24	12 pcs
	Fork			18 pcs
	clamp			15 pcs
	Stage adjustable base			18 pcs

ringlock system 12m and 8m

packing weight:13.2+9cbm

packing volume:8160+5840kg

Item	Specification	Quantity
Layer truss	Horizontal Pipe, L:2M	247 pcs*2
	Diagonal Pipe, LR3,L:2.44M	210 pcs*2
	Pillar,LR1, L:2m	112 pcs*2
	adjustable base,LR4, H:0.25m	27 pcs*2

Item	Specification	Quantity
Layer truss	Horizontal Pipe, L:2M	364 pcs
	Diagonal Pipe, LR3,L:2.44M	309 pcs
	Pillar,LR1, L:2m	144 pcs
	adjustable base,LR4, H:0.25m	38 pcs

16m 400mm spigot truss

packing weight: 136kg

packing volume: 3cbm

5piecs 3m+ 1p 1m

6m round truss

packing weight:185kg

packing volume:7cbm

Item	Specification(squre truss)			Qty
	angle	main tube(mm)	size(mm)
Arc Truss	45.00 degree	50×3.0	CS389×389	8 pcs


Truss Accessory	Conical coupler & Safrty clip & pin			whole set

4m round truss

packing weight:123kg

packing volume:5.5cbm

Item	Specification(squre truss)			Qty
	angle	main tube(mm)	size(mm)
Arc Truss	60.00 degree	50×3.0	CS389×389	6 pcs


Truss Accessory	Conical coupler & Safrty clip & pin			whole set

Main Specifications

Item	Specification
Product Type	Custom Ringlock Concert Stage System
Main Stage Size	12m × 10m
Main Stage Height	2m
Runway Size	2m × 6m
Stage Deck Size	2m × 1m
Access Stairs	4 pcs
Main Support System	Steel Ringlock
Wall Configuration	Rear Wall + Two Side Walls
Internal Clear Width	Approx. 14m
Rear Outer Width	Approx. 22m
Internal Clear Depth	Approx. 10m
LED Support Area	Approx. 4m Wide on Each Side
Straight Aluminum Truss	400 × 400mm × 16m
Large Circular Truss	Approx. 400mm Section × 6m Diameter
Small Circular Truss	Approx. 400mm Section × 4m Diameter
Application	Concert / Festival / Live Event
Custom Production	Available

Complete Product Supply

This product is not sold only as a Ringlock wall or only as an individual aluminum truss.

The customized supply package can include:

Main Stage we supplies Steel Ringlock Stage Platform systems in different sizes and heights according to project requirements.

12m × 10m Ringlock platform
2m stage height
2m × 1m decks

Runway

2m × 6m
Matching Ringlock structure and decks

Access

Four stair units

Ringlock Structure The modular principle behind using common components across temporary event systems is explained in our Modular System Logic for Stage, Truss and Scaffold.

Rear wall
Two side walls
LED support zones
Required standards, ledgers, braces, and bases

Aluminum Truss Dragonstage supplies a broader range of Aluminum Truss products for customized event systems.

16m × 400 × 400mm straight truss
6m diameter circular truss
4m diameter circular truss
Corresponding connection components

This is the key DragonTruss product value: customers can source several compatible temporary-event product systems from the same manufacturer rather than purchasing the stage, Ringlock, and truss separately. For non-standard stage projects, see our Custom Stage Production capability.

FAQ

What is the size of the main stage?

The main stage is approximately 12m × 10m × 2m high.

What size stage decks are used?

The main stage and runway use 2m × 1m modular stage decks.

What is the runway size?

The runway is approximately 2m wide × 6m long.

How many stairs are included?

The customer's configuration includes four stair units.

Is the Ringlock wall included in the stage package?

Yes. This customized product combines the main Ringlock stage with rear and side Ringlock wall structures.

What are the 4m-wide side areas used for?

They are intended as LED screen support areas. The final LED dimensions and weights should be provided before manufacture.

Is the upper Ringlock structure designed for speakers?

The customer indicated that equipment may be installed there, but the final function has not yet been confirmed. Equipment type, weight, hanging position, and connection method must be provided before the configuration can be finalized.

What aluminum truss is included?

The current configuration includes a 16m-long 400 × 400mm straight truss, a 6m-diameter circular truss, and a 4m-diameter circular truss.

Can the circle truss diameters be customized?

Yes. Diameter, truss section, segmentation, finish, and connection configuration can be customized according to project requirements.

Can DragonStage prepare a complete BOQ?

Yes. After the final stage drawing, Ringlock wall dimensions, LED requirements, truss configuration, equipment information, stairs, and accessories are confirmed, DragonStage can prepare the corresponding product and component list. For other concert equipment and temporary stage applications, see Concert Event.
