Short Description
Professional adjustable LED screen truss pad block designed to support positioning and leveling between rental LED cabinets and stage truss structures. Features a threaded adjustment spindle and locking nut for fine spacing adjustment during video wall installation, concert production, and temporary event setup.
Secure your video wall with the professional Rental LED Screen Pad Block. This heavy-duty mounting accessory features an adjustable threaded spindle and secure locking nut, allowing for precision alignment between LED cabinets and stage trussing. Designed for rapid deployment, stability, and pixel-perfect screen leveling at concerts and events.
Product Description

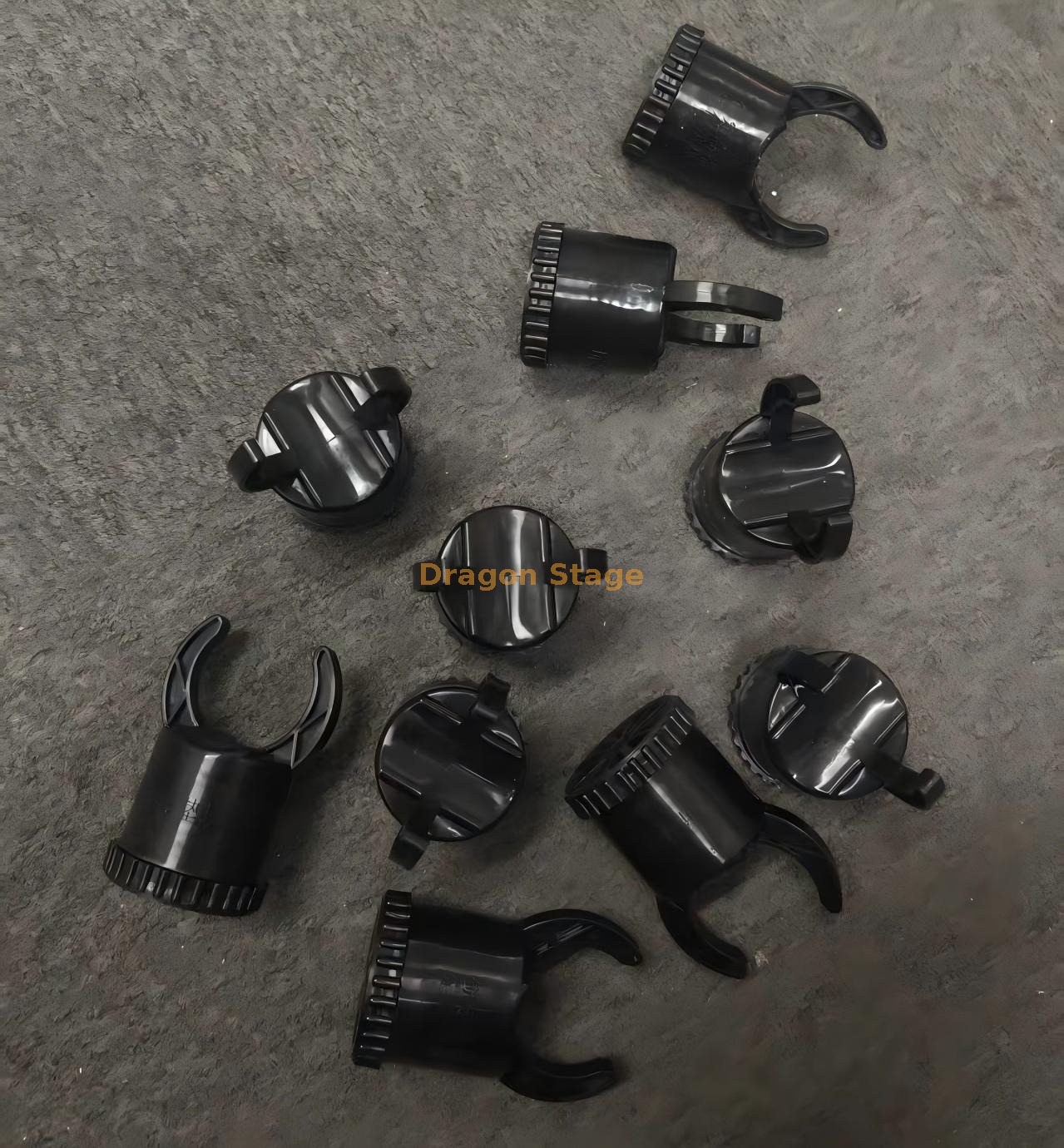

The DragonStage Adjustable LED Screen Truss Pad Block is a small but practical mounting accessory used when installing rental LED screen cabinets onto stage truss structures.
Its function is to provide an adjustable contact and positioning point between the LED screen system and the supporting truss structure.
The product uses an adjustable threaded spindle with locking nut, allowing installers to make fine spacing adjustments during assembly and then lock the required position.
This is particularly useful when multiple LED cabinets need to be aligned into one continuous video wall and small differences in installation position need to be corrected on site.
For complete LED-support products, see our LED Stage Truss systems.
Main Features
Adjustable Threaded Spindle

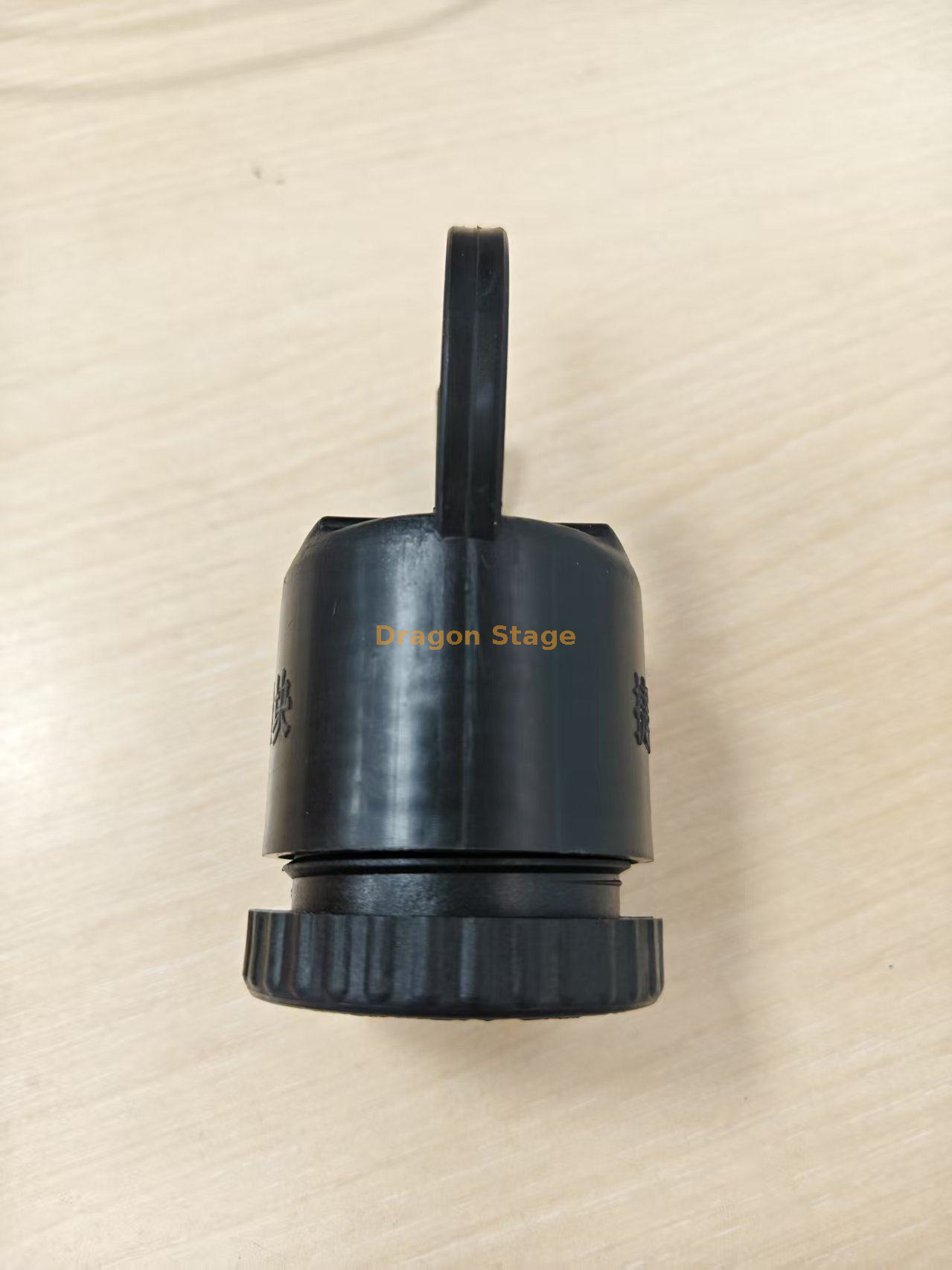

The pad block includes a threaded adjustment section.
By rotating the threaded spindle, the installer can adjust the working position of the support block instead of relying only on fixed-distance mounting hardware.
This makes it useful when the actual gap between:
LED cabinet → support point → truss structure
requires minor adjustment during installation.
Locking Nut for Position Fixing
After the required adjustment position is reached, the locking nut can be tightened to help maintain that setting.
This gives the installer a simple sequence:
adjust → align → lock
rather than repeatedly adding temporary packing pieces or modifying the truss position.
U-Shaped Truss Contact Support

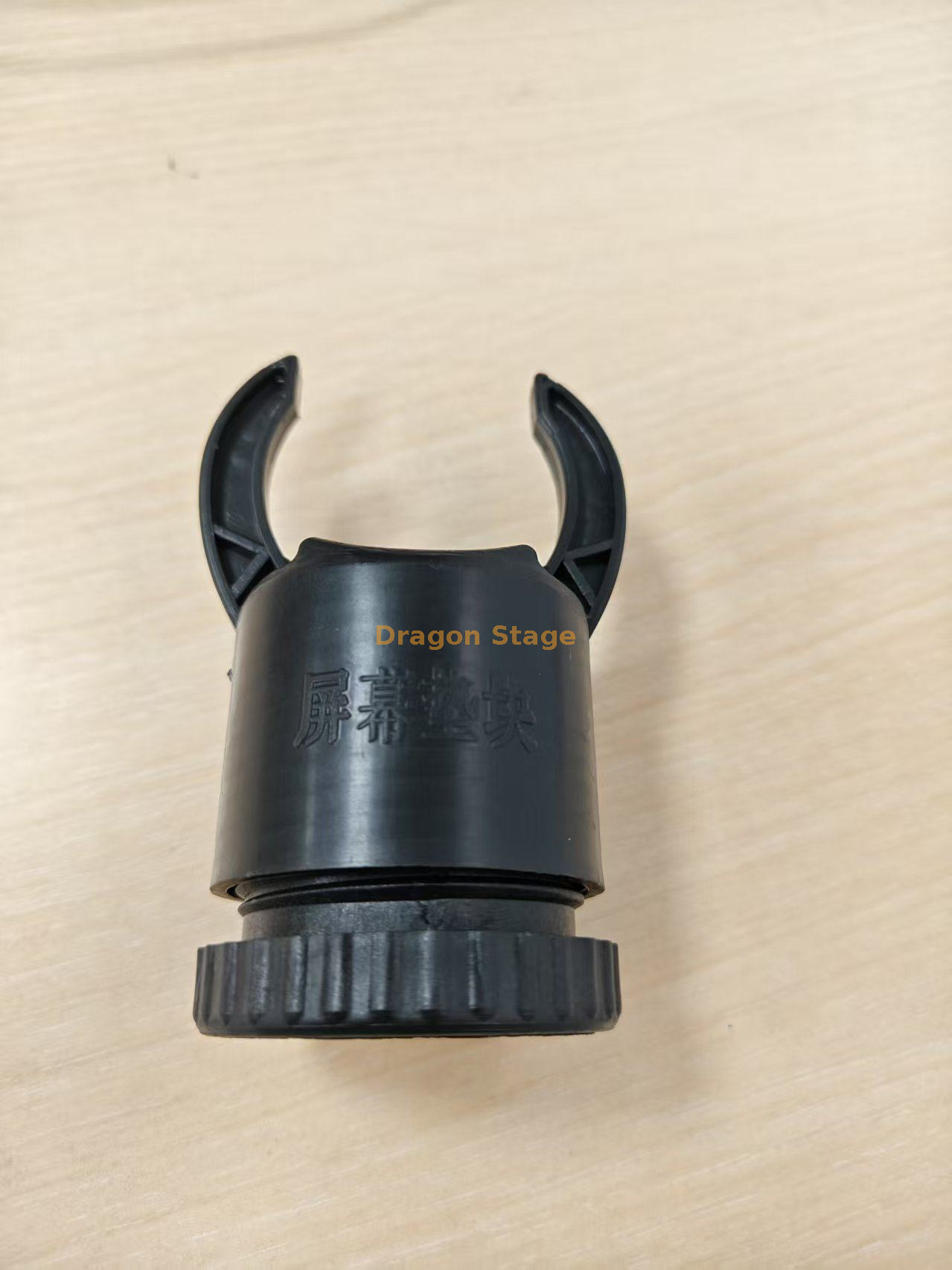

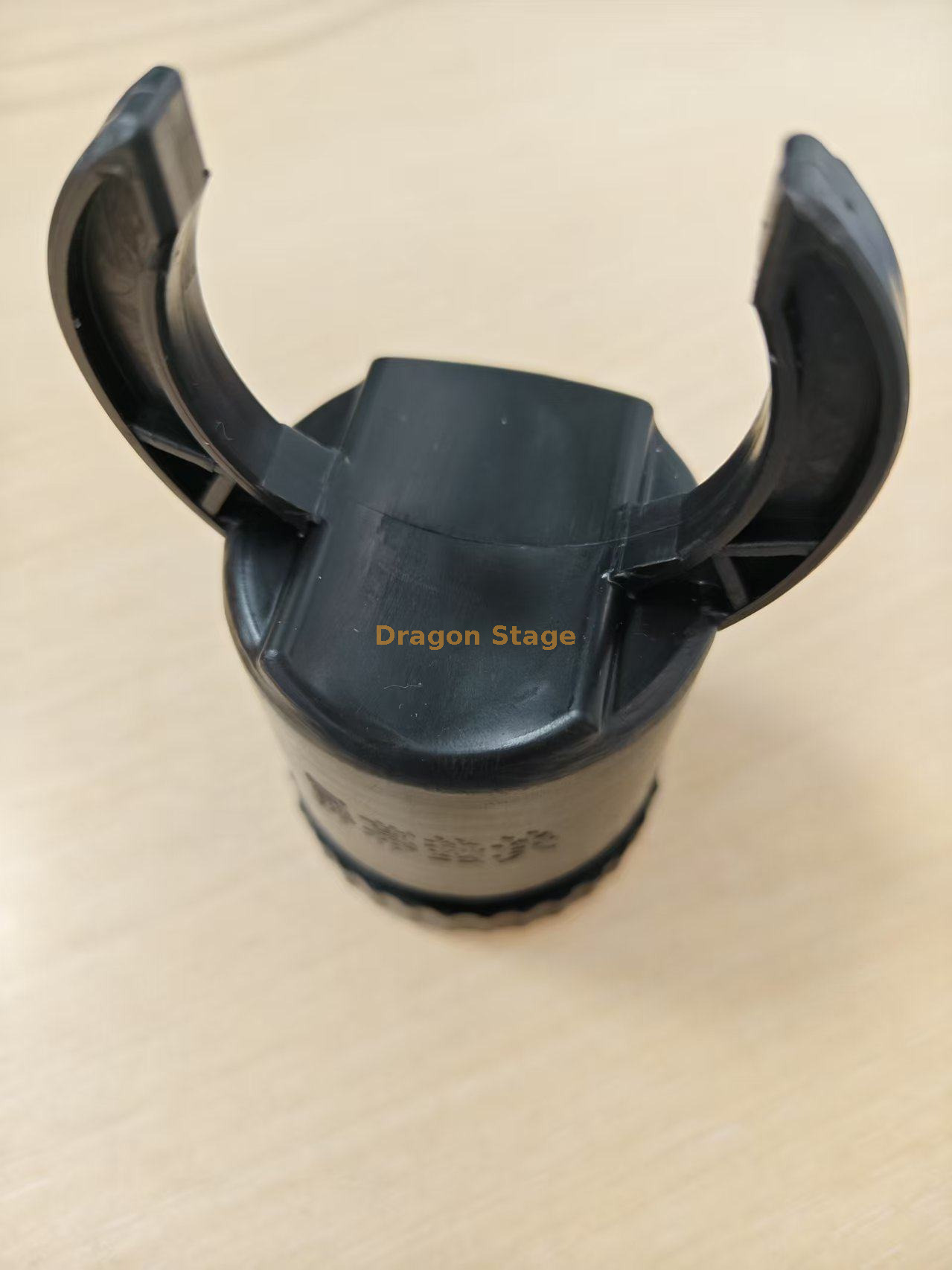

The upper part of the product uses a curved, open support shape that fits around the corresponding truss tube contact area.
This allows the pad block to sit between the LED installation system and the truss structure while retaining a defined positioning point.
Because truss dimensions and tube diameters vary between systems, the actual compatibility should be confirmed before ordering.
DragonStage supplies different Aluminum Truss systems, so customers ordering these pad blocks together with truss should provide the intended truss model or dimensions.
Designed for Rental LED Screen Installation
Rental LED screen systems are repeatedly:
Small installation accessories therefore have to be practical for repeated event use.

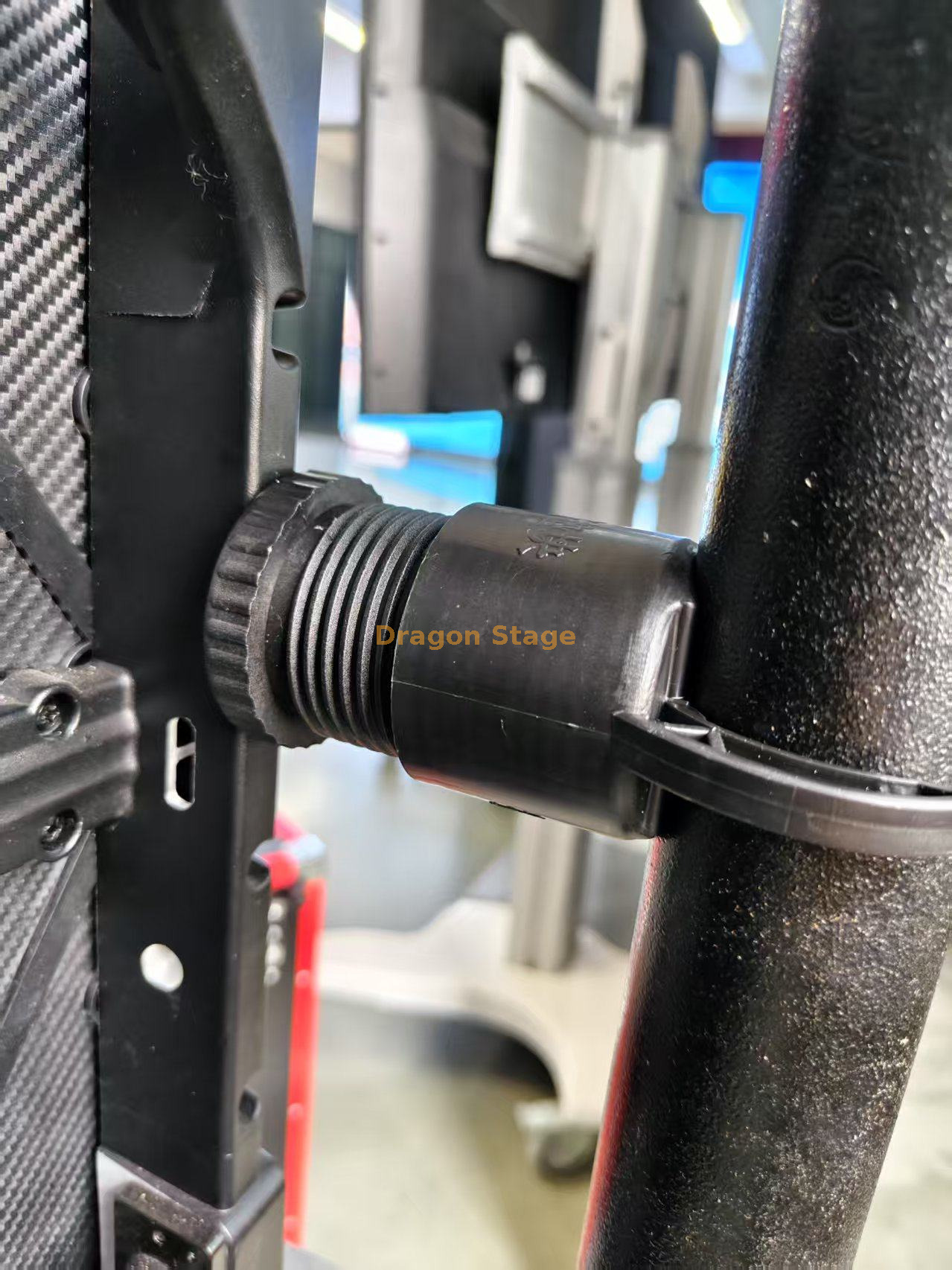

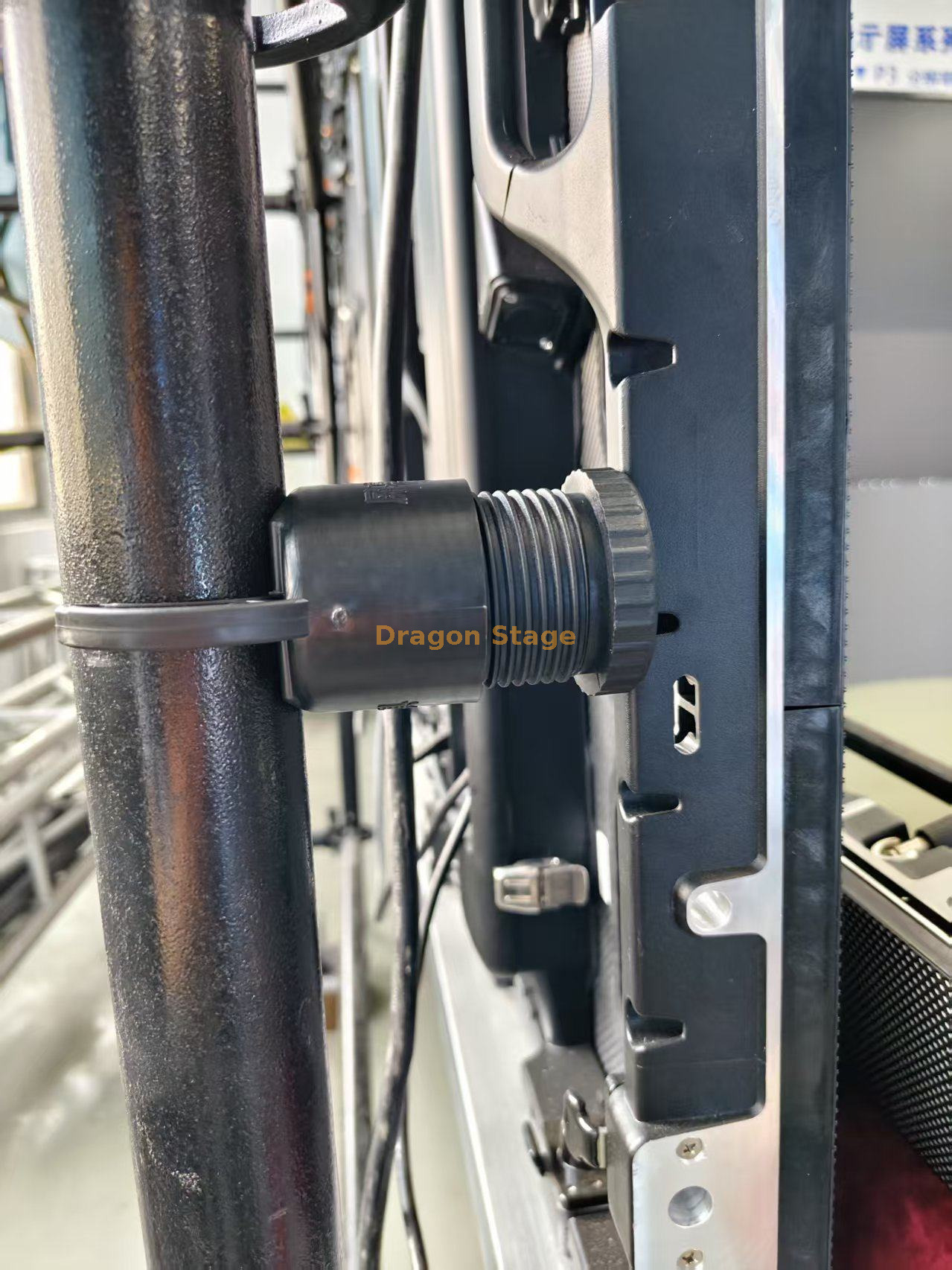

This pad block is intended for temporary LED video-wall installations where technicians need to position the LED screen relative to the supporting stage-truss structure.
Typical applications include:
Concert LED walls
Festival video screens
Stage background LED screens
Rental LED display systems
Exhibition LED installations
Corporate event video walls
Temporary event display structures
For larger ground-supported LED structures, see our Typical LED Ground Support Truss systems.
Why Is Adjustable Spacing Useful?
When a large LED wall is assembled from many individual cabinets, the final display surface depends on the relative position of all cabinets.
Even if the main truss structure is correctly assembled, installers may still need small adjustments at individual support positions.
An adjustable pad block provides a simple mechanical way to compensate for small spacing differences without changing the overall truss geometry.
The purpose is not to replace proper truss installation or LED cabinet locking systems.
It is an installation adjustment accessory used as part of the complete LED screen support arrangement.
Product Information
| Item | Description |
| Product Type | LED Screen Truss Pad Block |
| Main Function | Adjustable positioning / spacing support |
| Adjustment Method | Threaded spindle |
| Position Fixing | Locking nut |
| Upper Contact Form | Curved / U-shaped support |
| Application | Rental LED Screen + Stage Truss Installation |
| Typical Use | Concerts, Events, Video Walls, Rental Production |
| Custom Compatibility | Available |
| Brand | DragonStage |
Used with LED Truss Systems
This product is normally not purchased as an isolated structural system.
It is used together with:
For different LED-support configurations, customers can also browse our LED Truss product range.
For a quotation involving both the truss structure and LED mounting accessories, it is better to provide the complete installation drawing rather than ordering individual accessories only by appearance.
What Should Be Confirmed Before Ordering?
Because LED screen systems and truss dimensions are not all identical, please provide:
LED cabinet model
LED cabinet dimensions
Truss model
Truss tube diameter or relevant contact dimensions
Required adjustment range, if known
Installation drawing or reference photo
Required quantity
If you are replacing an existing pad block, sending photos and measured dimensions of the original part is usually the fastest way to confirm compatibility.
Custom Manufacturing and Supply
DragonStage supplies LED screen truss structures and related installation accessories for temporary event applications.
For non-standard requirements, the pad block or related mounting components can be discussed according to:
Truss dimensions
LED cabinet arrangement
Installation spacing
Connection method
Project quantity
This allows the accessory to be matched to the actual event system rather than assuming that one small component is universal for every LED wall.
Important Compatibility Note
The product shown on this page is an installation and positioning accessory.
The information currently available does not establish:
These details should be confirmed against the actual LED screen and supporting truss configuration before ordering.
FAQ
What is an LED screen truss pad block?
It is an adjustable mounting accessory positioned between an LED screen installation system and its supporting stage truss. It helps installers adjust spacing and alignment during installation.
How is the position adjusted?
The product uses a threaded spindle. Rotating the threaded section changes the support position, and the locking nut is then used to secure the selected setting.
Is this used for rental LED screens?
Yes. It is intended for professional rental LED screen and temporary event installation applications.
Can it be used with any aluminum truss?
Compatibility should be confirmed according to the actual truss dimensions and contact position. Different truss systems may require different pad-block configurations.
Can DragonStage supply the truss together with these blocks?
Yes. DragonStage supplies LED-support truss systems and related accessories, allowing the mounting components to be discussed together with the complete project.
What information should I provide for a replacement part?
Please send the original part dimensions, truss dimensions, LED cabinet model, installation photos, and required quantity.
