Secure your digital displays with this professional LED screen truss steel wire rope bundling tool. Featuring a high-tension steel wire cable and an auxiliary tightening buckle, this essential rigging accessory ensures precise, stable, and safe screen mounting on any stage truss system. Ideal for rapid event setup and heavy-duty display alignment.
LED Screen Tensioning Wire Tool for Truss Installation
Short Product Description

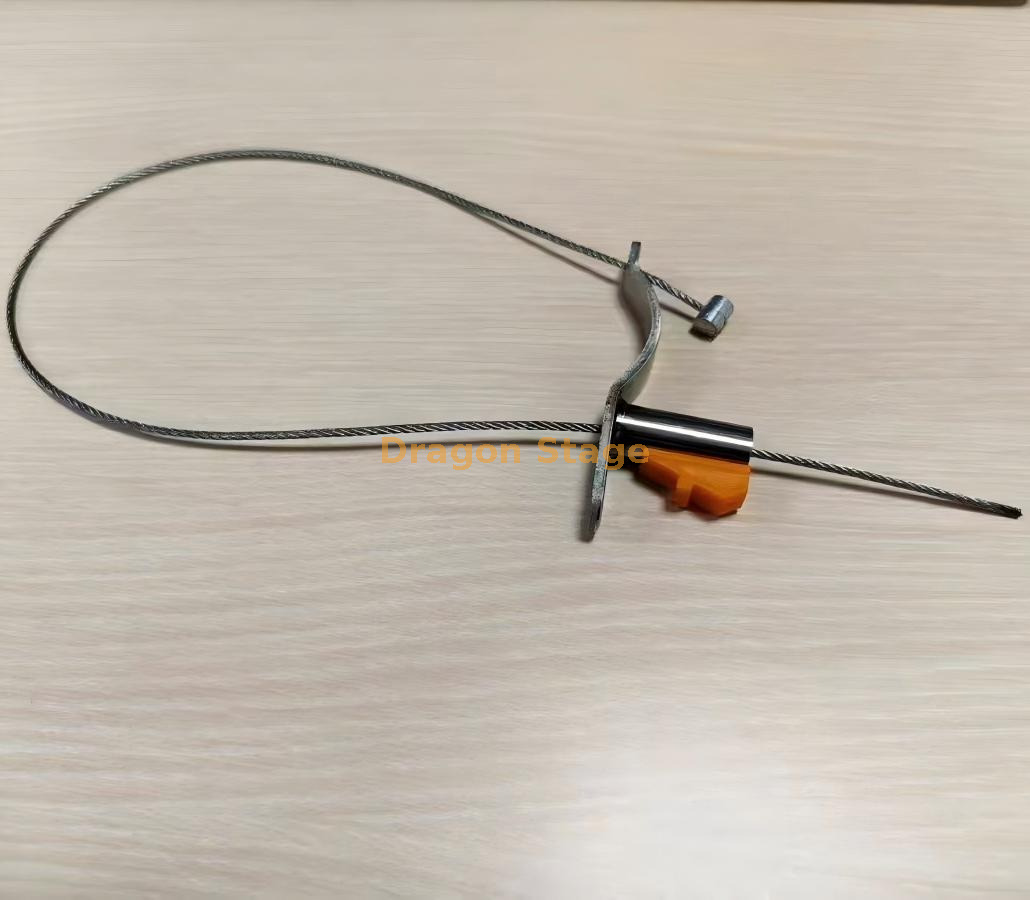

This LED screen tensioning wire tool is an auxiliary installation accessory used to draw an LED cabinet or display frame toward its supporting truss structure.

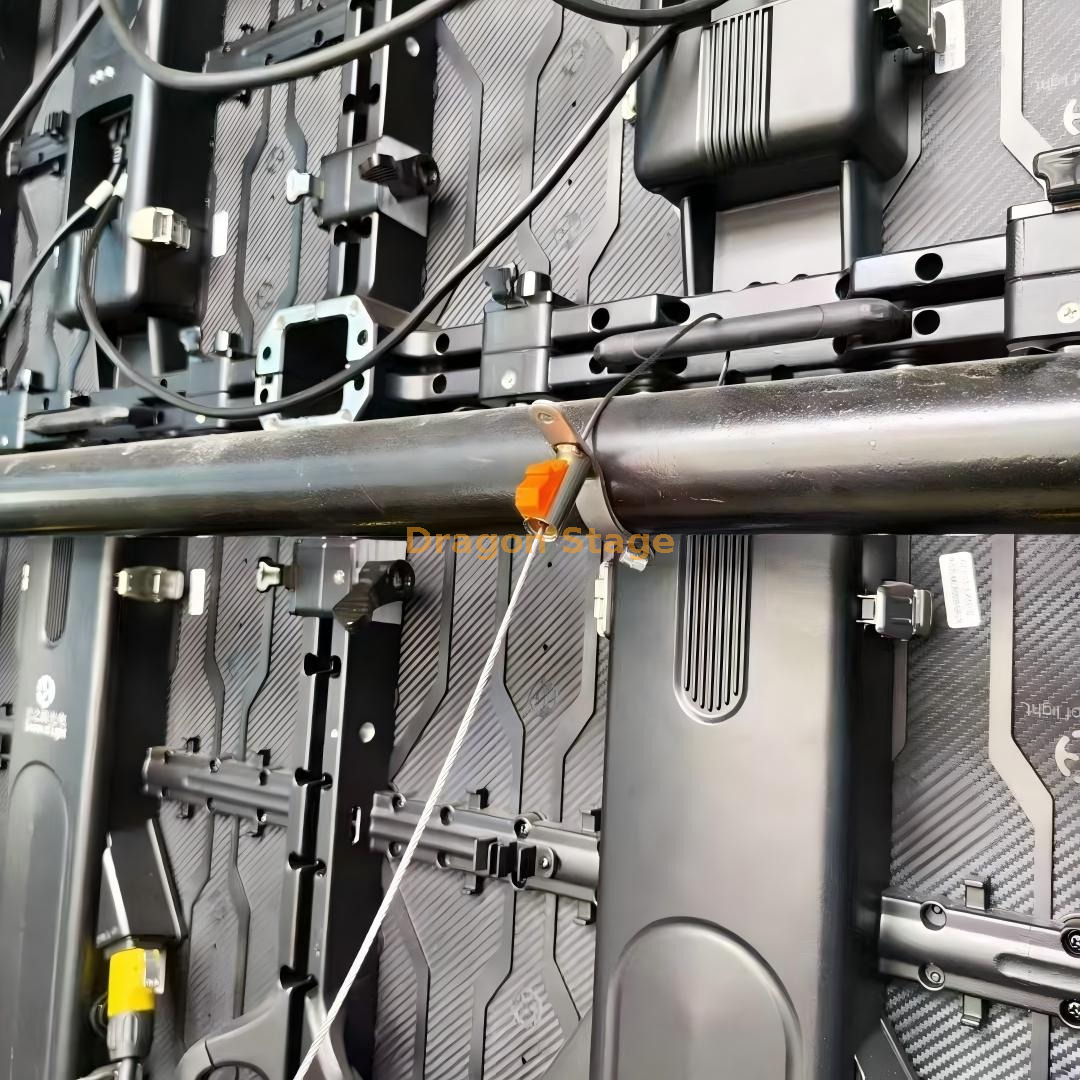

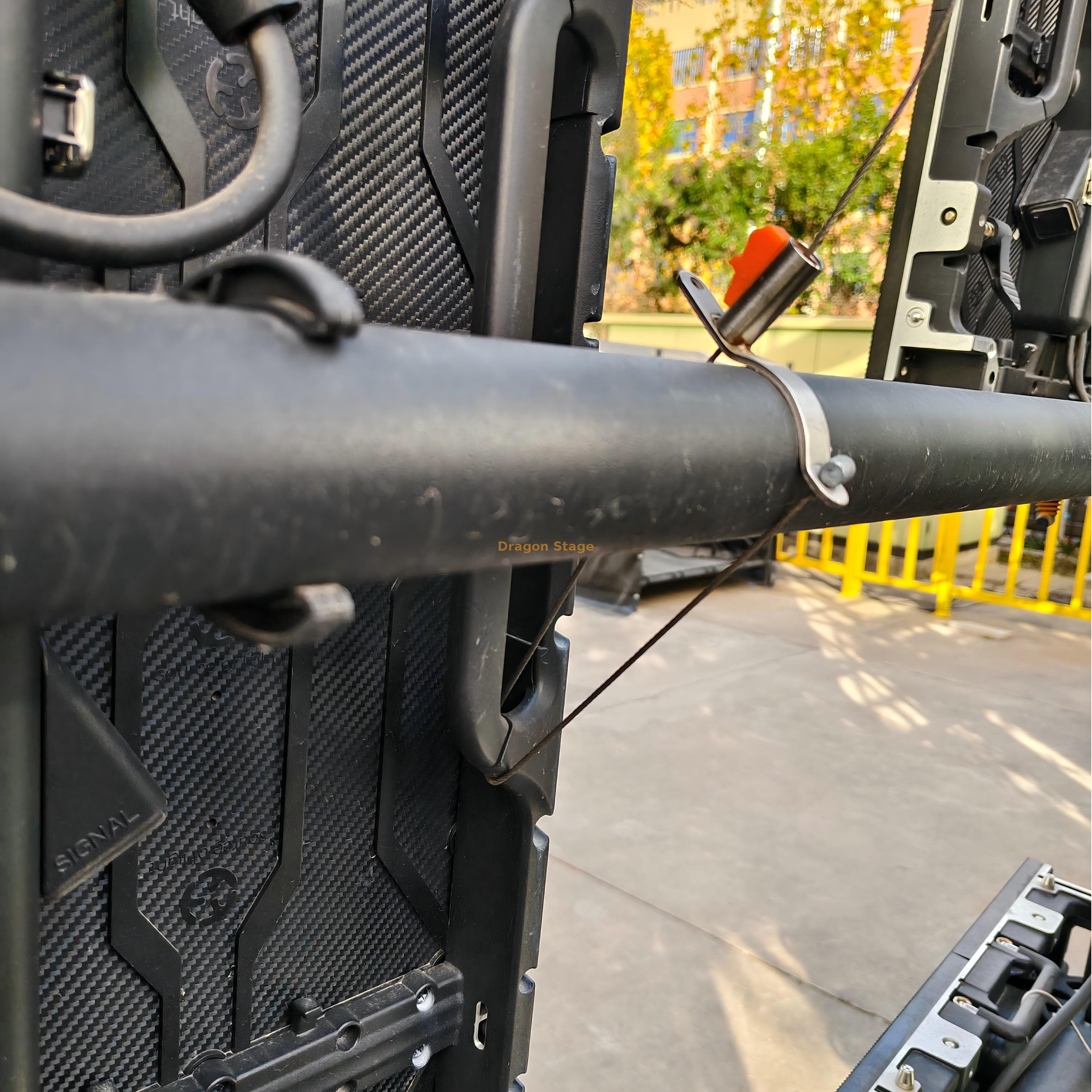

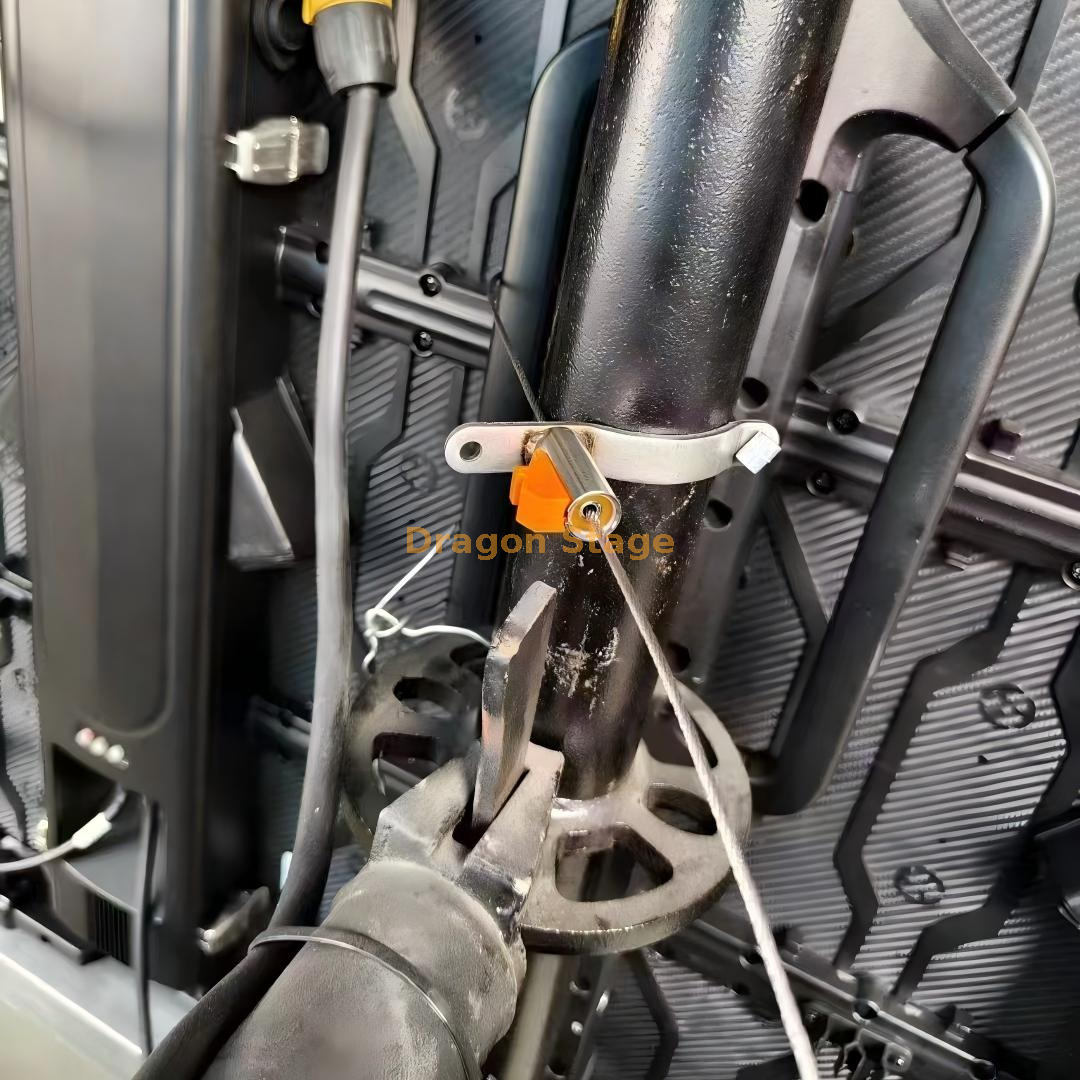

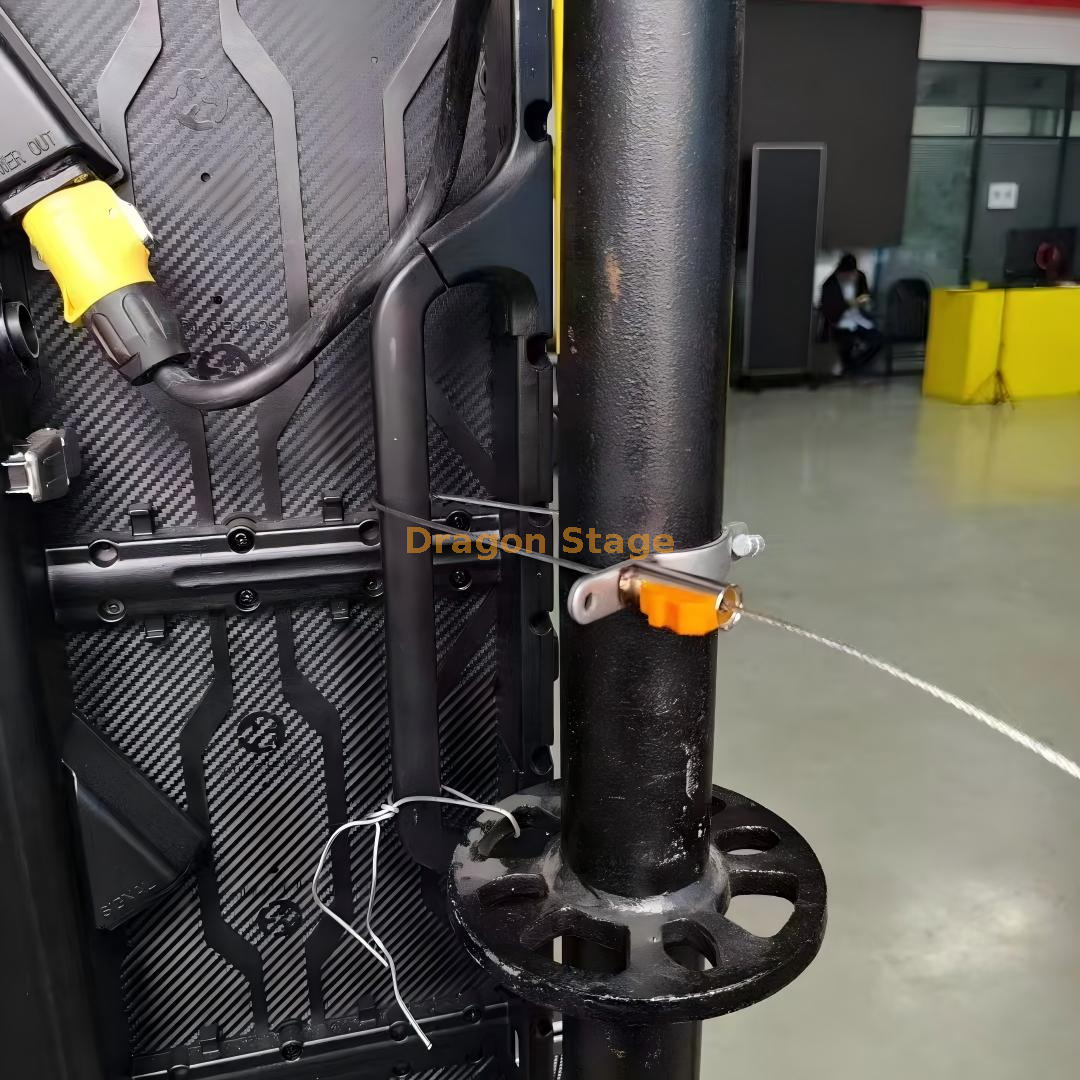

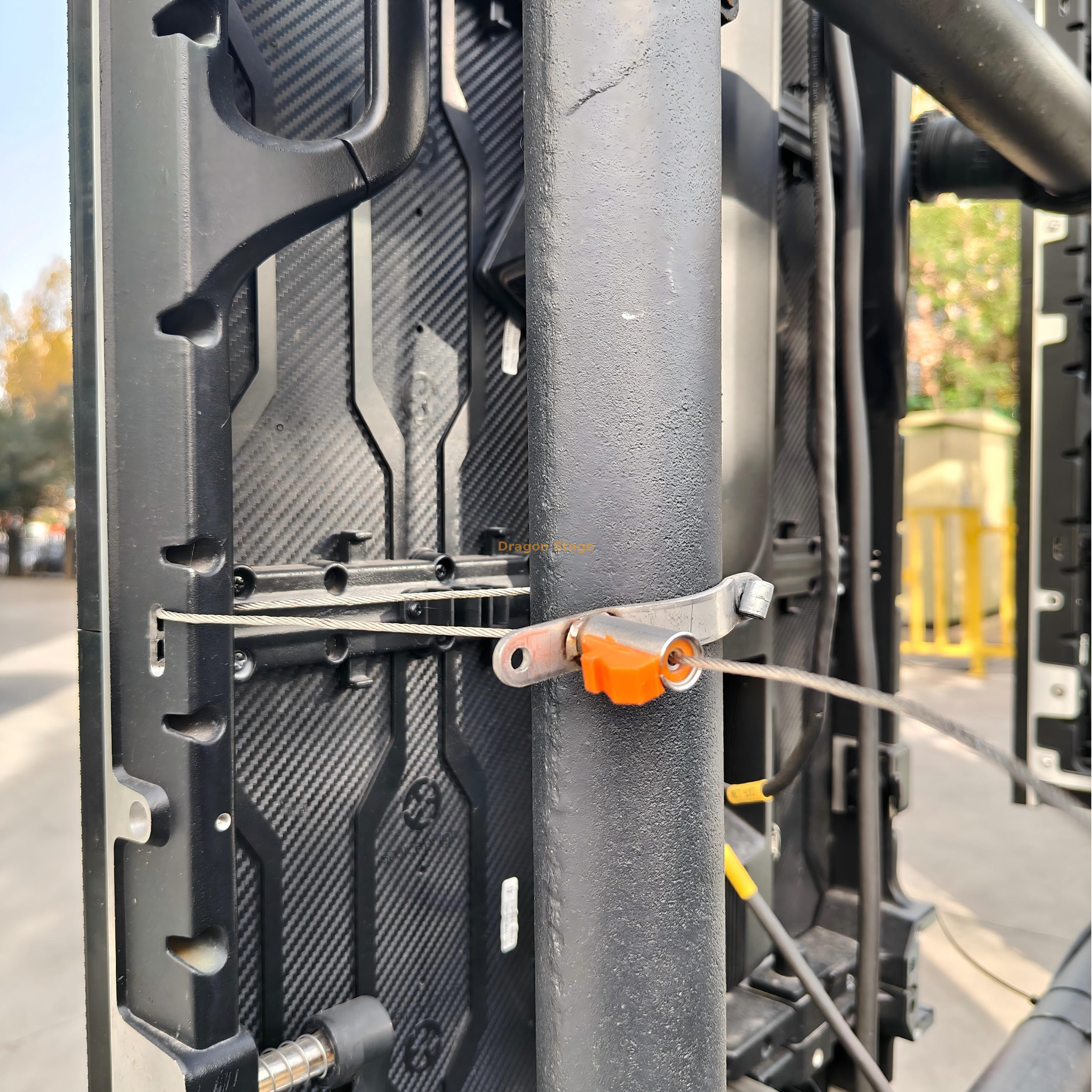

The steel wire cable passes around a suitable attachment point on the LED cabinet, while the metal bracket is secured to the supporting tube. Pulling the cable through the self-locking mechanism helps installers adjust the cabinet position and maintain closer contact between the display and its support structure.
It is intended as an installation and positioning aid. It should not replace the LED cabinet’s specified hanging hardware, safety cables or primary load-bearing connections.
Auxiliary Tensioning Tool for LED Screen Installation
Installing a modular LED screen on a stage truss or steel support structure may require additional control between the rear of the LED cabinets and the supporting frame.
This tensioning tool provides a simple way to apply controlled pulling force during installation. Its steel wire cable and locking mechanism allow the installation crew to draw the LED cabinet toward the supporting tube and make positional adjustments from behind the screen.
It can be used for temporary event displays, stage LED walls, touring productions and other installations where the LED screen manufacturer’s approved attachment points and the supporting structure are compatible with the tool.
Key Features
Steel wire cable for repeated installation use
Self-locking cable mechanism for convenient adjustment
Metal bracket designed for attachment to a supporting tube
Compact design for use behind modular LED cabinets
Helps with cabinet positioning and installation adjustment
Suitable for temporary LED screen and stage display applications
Custom dimensions may be available for different installation requirements
Typical Applications
This tool may be used as an auxiliary installation accessory for:
Stage LED screen systems
Ground-supported LED walls
Truss-mounted digital displays
Temporary concert and festival screens
Touring LED display systems
Exhibition and corporate event video walls
Compatibility must be checked according to the LED cabinet attachment point, supporting tube diameter, cable path and installation configuration.
How It Works
Secure the metal bracket to a suitable tube on the supporting structure.
Route the steel wire cable through an approved attachment point on the LED cabinet or display frame.
Insert and pull the cable through the locking mechanism.
Apply only the tension required to assist positioning.
Check the cabinet’s primary connections and safety devices before completing the installation.
The exact installation procedure must follow the instructions provided for the LED cabinet and supporting structure.
Important Safety Information
This product is an auxiliary positioning and tensioning tool. It should not be presented or used as a certified lifting sling, fall-arrest device or primary suspension point unless the relevant rated-capacity documentation specifically confirms that application.
The LED cabinets must remain connected using their specified locks, hanging bars, safety cables or other approved primary connections.
Before use, inspect the steel wire, locking mechanism, bracket and attachment points for damage, deformation or excessive wear. Do not use a damaged component.
Product Specifications
| Parameter | Description |
| Product Type | Auxiliary LED screen tensioning wire tool |
| Main Application | LED cabinet positioning and stabilization |
| Cable Material | Steel wire rope — specification to be confirmed |
| Cable Diameter | To be confirmed |
| Cable Length | To be confirmed |
| Locking Method | Self-locking cable mechanism |
| Bracket Material | To be confirmed |
| Compatible Tube Diameter | To be confirmed |
| Rated Tension Capacity | Publish only after technical verification |
| Surface Treatment | To be confirmed |
| Package Quantity | To be confirmed |
| Customization | Available subject to installation requirements |
Product-Specific FAQ
Is this tool used to suspend the weight of the LED screen?
No. It is designed as an auxiliary tool for positioning and tensioning an LED cabinet against its supporting structure. The LED screen must still use the cabinet manufacturer’s specified hanging hardware, cabinet locks, safety cables and other required primary connections.
Do not describe the tool as a load-bearing suspension component unless a verified rated capacity and the relevant documentation are available for that specific application.
Will this tensioning tool fit every LED cabinet and truss system?
Not necessarily. Compatibility depends on the LED cabinet’s available attachment point, the supporting tube diameter, the required cable length and the space behind the screen.
Customers can provide photos or drawings of the LED cabinet, the tube dimensions and the proposed installation arrangement. Dragon Stage can then recommend a suitable configuration based on manufacturing and project experience. This does not replace project-specific structural verification where such verification is required.
How much tension can the steel wire tool apply?
The permitted tension depends on the steel wire specification, locking mechanism, bracket construction and the attachment points used in the installation. A universal capacity should not be stated without verified product test data.
The installer should apply only the tension necessary for positioning and should not use the tool to replace the screen’s primary supporting or safety components.
