packing weight;3700kg

packing volume: 40cbm

3m 400mm bolt truss 100p

4m 400mm bolt truss 5p

1m 400mm bolt truss 10p

steel base for 400mm truss 10p

cube 400mm 20p

2 way connector 10p

3 way connector 2p

4 way connector 3p

double clamp 40p

canopy 1p

Main Specifications

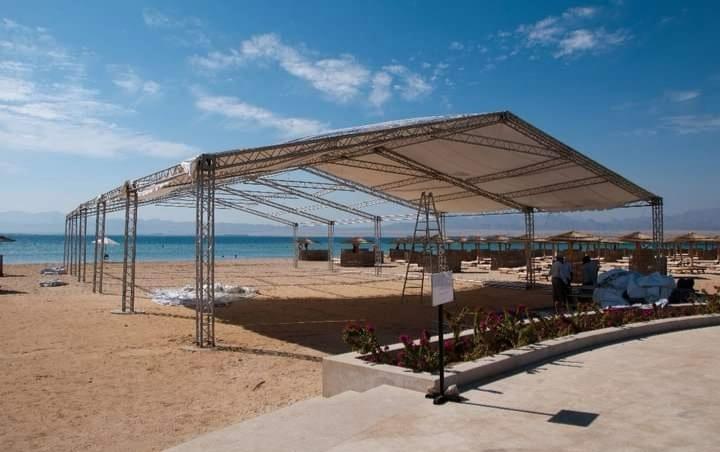

24m × 24m Large Span Aluminum Truss Structure

This customized truss tent provides a 24m × 24m covered outdoor space without internal supporting columns inside the main usable area.

The structure is manufactured using modular aluminum truss components, including:

• Vertical truss columns

• Perimeter roof truss

• Internal roof supporting truss

• Roof connection components

• Cover fixing accessories

The modular design allows DragonStage to customize the dimensions, layout, and configuration according to different outdoor applications.

For other large-span truss solutions, see our Roof Truss product range.

Pyramid Roof Design

The structure uses a four-side pyramid roof configuration.

Compared with a flat roof design, the pyramid shape provides:

• A more architectural appearance

• A cleaner visual profile

• A suitable surface shape for waterproof covering

• A practical solution for outdoor terrace applications

The final roof geometry, connection details, and covering method can be customized according to project requirements.

400mm Aluminum Screw Truss System

The main framework uses 400mm aluminum screw truss as the structural component.

Aluminum screw truss is widely used in:

• Outdoor event structures

• Exhibition structures

• Temporary covered areas

• Stage roof systems

• Large decorative structures

DragonStage can provide matching:

• Straight truss sections

• Corner connections

• Base components

• Roof connection parts

• Related accessories

according to the confirmed project design.

White Waterproof PVC Tarpaulin Cover

The roof covering uses a white waterproof PVC tarpaulin.

The cover provides:

• Weather protection for the covered area

• A clean white appearance

• Suitability for outdoor commercial applications

The customer can specify additional requirements such as:

• Cover color

• Logo printing

• Side curtains

• Partial enclosure

• Additional weather protection

according to the application.

Outdoor Terrace and Event Applications

This type of aluminum truss tent structure is suitable for:

• Resort terraces

• Beach restaurants

• Outdoor dining areas

• Corporate events

• Wedding venues

• Festival areas

• Temporary hospitality spaces

• Outdoor exhibitions

Compared with conventional tent structures, aluminum truss solutions provide a more customized architectural appearance and can be adapted to larger dimensions.

Customized Manufacturing by DragonStage

The shown 24m × 24m × 6m leg height configuration is a customized project requirement.

DragonStage can customize:

• Overall width and length

• Column height

• Roof shape

• Truss size

• Number of support columns

• Cover material

• Cover color

• Side walls

• Entrance design

• Additional event equipment support

For customized event structures, see our Custom Stage Production service.

Complete Supply Scope

Depending on the confirmed project requirements, DragonStage can supply:

Aluminum Truss Structure

• 400mm aluminum screw truss

• Vertical columns

• Roof beams

• Connection components

• Base components

Roof Cover System

• Waterproof PVC tarpaulin

• Cover fixing accessories

• Customized finishing options

Optional Accessories

• Side curtains

• Lighting support components

• Decorative elements

• Additional event accessories

The final supply list will be prepared according to the approved drawing and project requirements.

Information Required Before Quotation

For a large-span outdoor truss tent, please provide:

• Installation location

• Indoor or outdoor installation

• Required usage period

• Ground condition

• Wind environment information

• Whether side walls are required

• Roof cover requirements

• Lighting or equipment installation requirements

• Local installation restrictions

• Available drawings or site information

These details help DragonStage prepare the correct structure configuration and quotation.

Engineering Information Notice

The dimensions and configuration on this page are based on the customer's current requirements:

• 24m × 24m overall size

• 6m leg height

• 400mm aluminum screw truss

• 10 support columns

• Pyramid roof

• White waterproof PVC cover

The information does not define:

• Wind resistance rating

• Ballast requirement

• Foundation design

• Structural load capacity

• Equipment hanging capacity

• Local approval requirements

These items depend on the actual installation location, environmental conditions, final design, and required engineering verification.

FAQ

What is the size of this aluminum truss tent?

The requested size is 24m × 24m with a 6m leg height.

What type of roof does this structure use?

It uses a pyramid roof design with a waterproof PVC cover.

What truss size is used?

The customer requested a 400mm aluminum screw truss system.

How many support columns are included?

The current configuration includes 10 aluminum truss columns.

Can the size be customized?

Yes. DragonStage can customize the width, length, height, roof design, truss configuration, and covering system.

Is this suitable for outdoor terraces?

Yes. This type of structure is suitable for outdoor terraces, resorts, restaurants, events, and temporary hospitality spaces.

Can side walls be added?

Yes. Side curtains or enclosure systems can be added according to weather protection and application requirements.
