Understanding the Safety Inspection Process Behind Stadium Concert Structures

A completed stadium concert stage may appear ready once:

• LED screens are installed.

• Speakers are suspended.

• Lighting fixtures are programmed.

• Backstage areas are prepared.

However, from an engineering perspective, the structure is not ready simply because it looks complete.

Before a large temporary event structure is opened for operation, engineers must verify that every structural system, connection point and safety component performs as intended.

A temporary concert venue is a complex combination of:

• Main stage structures.

• Hydraulic roof systems.

• Ringlock towers.

• LED support structures.

• FOH platforms.

• Relay speaker towers.

• Temporary stages.

• Rigging systems.

• Ballast systems.

• Audience access facilities.

Each component has a specific load path and stability requirement.

The purpose of inspection is not only to confirm that the structure exists.

It is to confirm:

The structure has been assembled correctly, the loads are transferred through the intended paths, and all safety systems are ready before people, equipment and performers enter the venue.

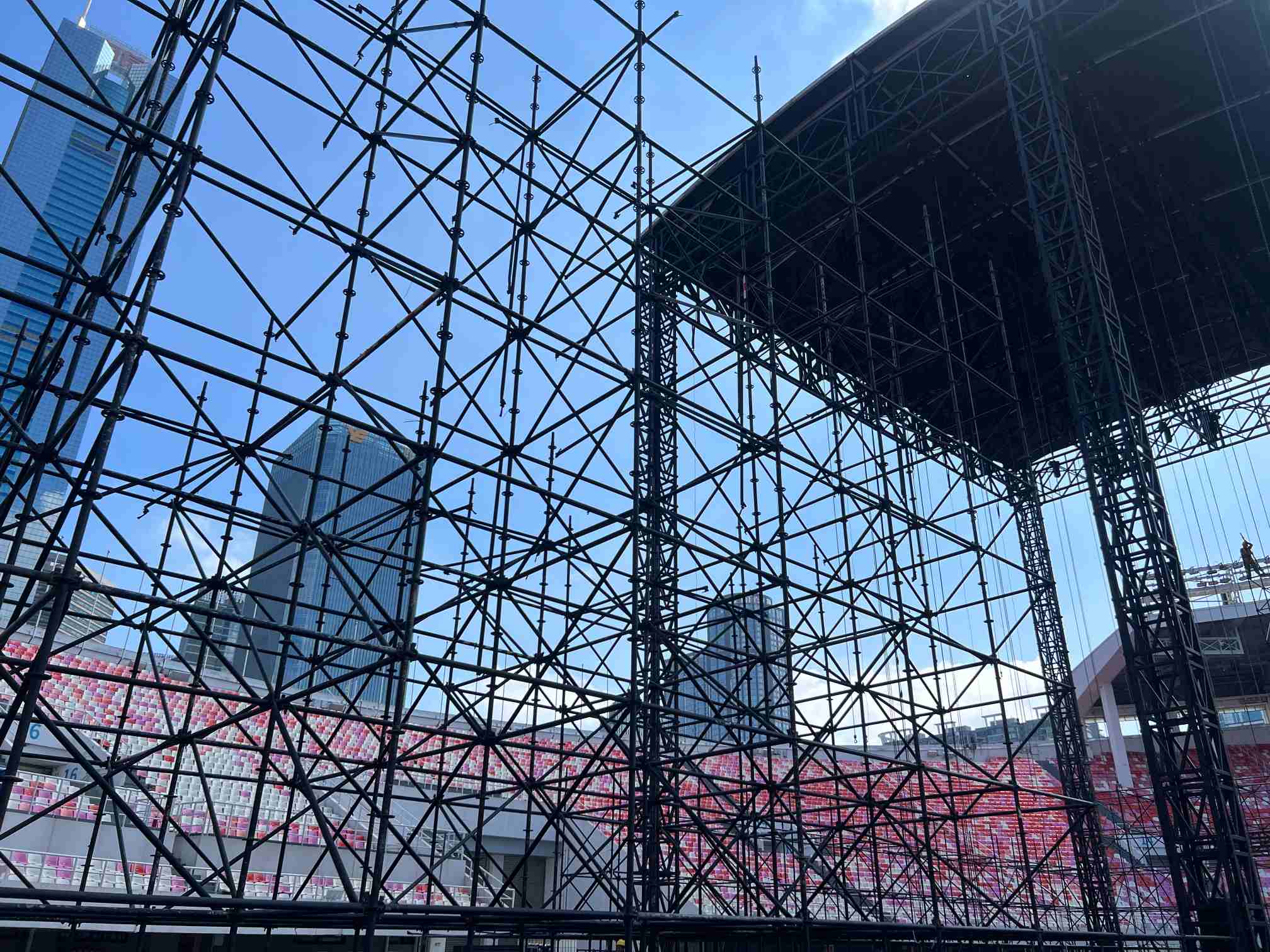

During the construction of the 2026 Guangzhou Pearl Beer Festival Music Festival, several safety-related structural details were observed, including:

• Adjustable base systems.

• Structural bracing.

• Safety cables.

• Water ballast systems.

• Guy wire systems.

• Rigging points.

• Temporary access structures.

Although a complete inspection checklist was not publicly available, these visible elements demonstrate the main principles engineers consider before operation.

The relationship between construction stages and inspection timing is discussed in From Empty Stadium to Concert Venue: Construction Sequence of a Stadium Concert Stage.

Why Is Temporary Structure Inspection Necessary?

A common misunderstanding is:

“The structure has already been installed, so why inspect it again?”

The reason is that temporary structures are assembled systems.

Unlike permanent buildings, they are often:

• Transported in sections.

• Installed within a short period.

• Connected by multiple modular components.

• Adjusted on site.

• Loaded gradually as equipment is added.

During installation, small issues may occur:

• A connection may not be fully secured.

• A brace may be missing.

• A base may require adjustment.

• A rigging point may not match the planned position.

• A ballast system may not be correctly installed.

Inspection provides a final verification before operation.

Inspection Should Follow the Load Path

The most effective way to inspect a temporary structure is to follow the load path.

For example:

LED Screen Support

LED Cabinet

↓

Support Beam

↓

Ringlock Structure

↓

Base System

↓

Ground Protection

↓

Ground

Inspection should therefore check:

• LED fixing.

• Support beam condition.

• Ringlock connections.

• Base adjustment.

• Ground support.

Suspended Speaker System

Line Array

↓

Rigging Hardware

↓

Truss / Beam

↓

Main Structure

↓

Foundation / Ballast

Inspection should check:

• Rigging connection.

• Hoist.

• Safety cable.

• Load point.

• Supporting structure.

The inspection process is therefore not only visual checking.

It is verification of the complete engineering system.

Structural Inspection

1. Base System Inspection

The base is where the entire structure transfers loads to the ground.

Important inspection points include:

• Base plates.

• Adjustable screw jacks.

• Base height adjustment.

• Contact condition.

• Ground protection.

During the Guangzhou stadium project, Ringlock structures used standard base systems including:

• Base plates.

• Adjustable jacks.

• Supporting pads.

The purpose is to:

• Level the structure.

• Distribute loads.

• Compensate for minor ground irregularities.

A structure can be strong above, but unstable if the base condition is incorrect.

2. Connection Inspection

Temporary structures rely heavily on modular connections.

Examples include:

• Ringlock rosette connections.

• Bolted truss connections.

• Roof frame connections.

• Rigging points.

Engineers check:

• Correct component installation.

• Connection locking.

• Bolt condition.

• Missing parts.

• Visible deformation.

A connection is not only a mechanical joint.

It is part of the load-transfer system.

The importance of modular connection systems is discussed in:

Connection Material System.

3. Bracing Inspection

Bracing controls structural stability.

Without sufficient bracing, a structure may support vertical loads but remain vulnerable to horizontal forces.

Inspection includes:

• Diagonal braces.

• Horizontal bracing.

• Structural reinforcement members.

This is especially important for:

• Tall Ringlock structures.

• FOH towers.

• Relay towers.

• Large LED support structures.

The wind stability principles behind these systems are explained in:

How Do Temporary Concert Structures Resist Wind Loads?.

4. Verticality and Alignment Inspection

Tall temporary structures require accurate alignment.

Examples:

• Relay speaker towers.

• FOH towers.

• Ringlock LED structures.

• Main roof columns.

Engineers check:

• Vertical alignment.

• Structural deformation.

• Uneven settlement.

• Connection alignment.

A small deviation at the bottom can become significant at higher levels.

5. Truss Alignment Inspection

Truss systems must maintain correct geometry.

Inspection points include:

• Beam alignment.

• Connection points.

• Suspension positions.

• Support locations.

This is especially important for:

• Lighting trusses.

• Roof structures.

• LED support frames.

Incorrect alignment may affect:

• Load distribution.

• Equipment positioning.

• Visual appearance.

Rigging Inspection

Large concerts contain many suspended loads:

• Line arrays.

• Lighting fixtures.

• LED elements.

• Production equipment.

Rigging inspection is therefore one of the most important safety checks.

1. Safety Cable Inspection

Safety cables are secondary protection systems.

They are designed to prevent equipment from falling if the primary connection fails.

Inspection includes:

• Correct installation.

• Proper attachment points.

• No visible damage.

• Appropriate positioning.

During the project, safety cables were observed on:

• LED structures.

• Roof-mounted equipment.

• Suspended production systems.

2. Hoist Inspection

Large productions often use:

• Electric motors.

• Chain hoists.

• Manual lifting systems.

Inspection includes:

• Correct installation.

• Load rating.

• Connection points.

• Safety devices.

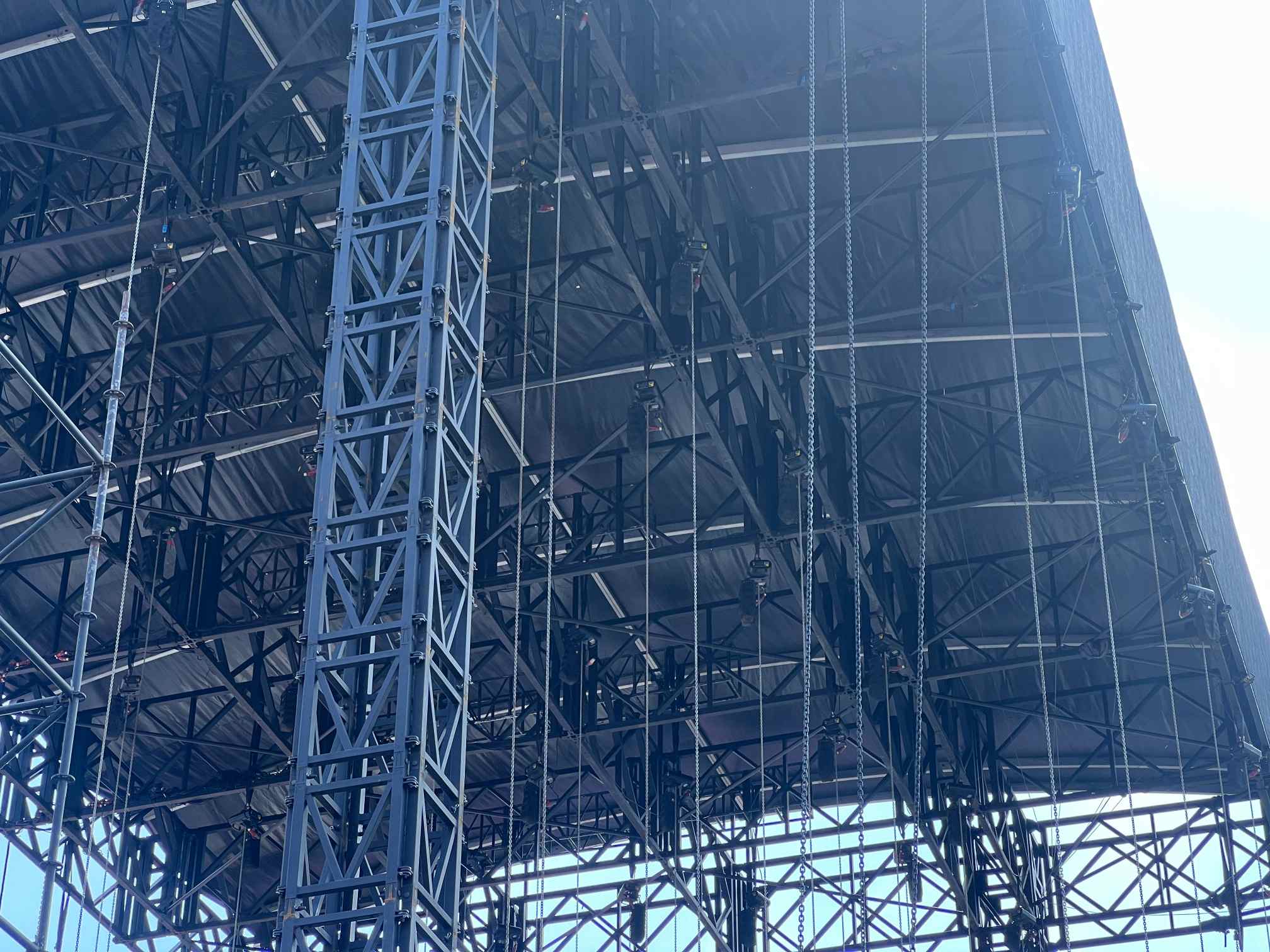

The main roof system used multiple motors for lifting and supporting production equipment.

Because hoists are directly involved in suspended loads, they require careful verification.

3. Load Point Inspection

A common mistake is assuming any structural member can support equipment.

In reality, each load point must be designed for a specific purpose.

Inspection confirms:

• Correct suspension location.

• Correct load direction.

• Proper connection.

• No unexpected additional loads.

This principle is closely related to heavy equipment load management:

How Are Heavy Equipment Loads Managed in Large Concert Structures?.

Stage Structure Inspection

The stage is not only a performance surface.

It is also a structural platform supporting:

• Performers.

• Equipment.

• LED systems.

• Walkway structures.

Inspection includes:

1. Deck Level Inspection

Engineers check:

• Platform flatness.

• Panel connections.

• Height consistency.

• Surface stability.

A level stage is important for:

• Performer safety.

• Equipment operation.

• Visual quality.

2. Stair and Ramp Inspection

Large concert stages require multiple access routes.

Inspection includes:

• Stair stability.

• Ramp angle.

• Handrails.

• Connection points.

This applies to:

• Main stage stairs.

• Walkway access.

• Backstage routes.

3. Guardrail Inspection

Where elevated platforms exist, guardrails provide protection for:

• Workers.

• Technicians.

• Performers.

Inspection confirms:

• Correct installation.

• Secure connections.

• Appropriate coverage.

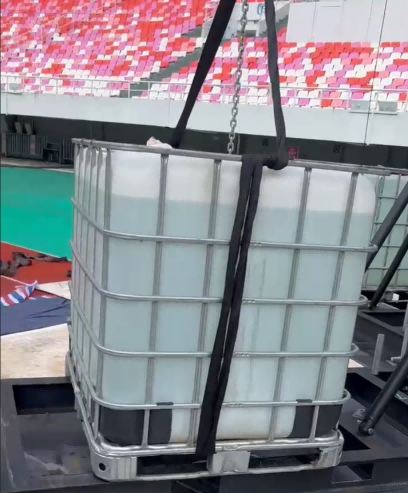

Ballast System Inspection

Ballast is a critical part of temporary structure stability.

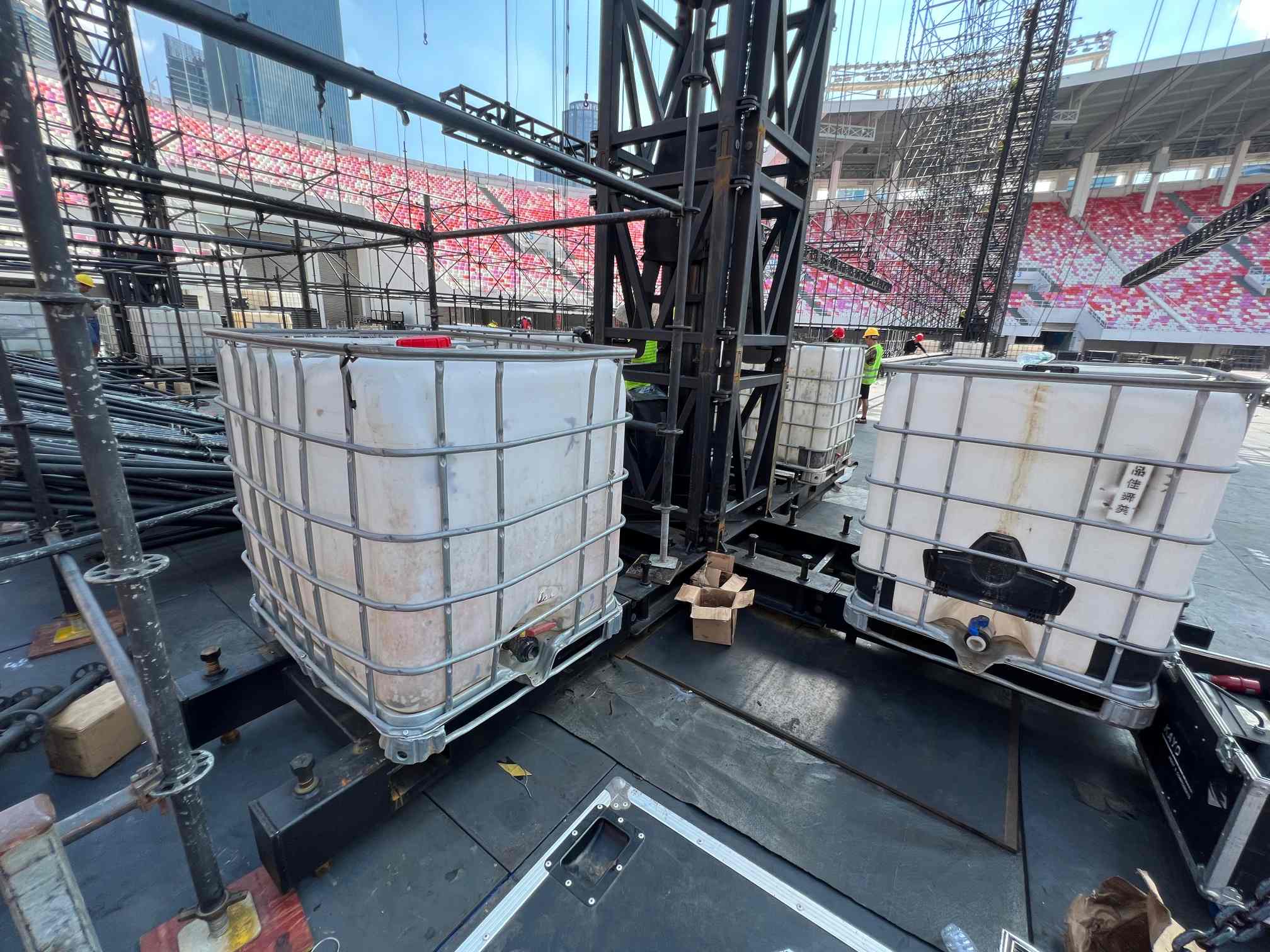

During this project, water ballast systems were observed on:

• Relay towers.

• Ringlock structures.

• Other stability-critical areas.

Inspection includes:

• Tank position.

• Supporting platform.

• Filling condition.

• Connection with restraint systems.

The water tanks observed were approximately:

• 1 cubic metre capacity.

• Installed at lower Ringlock levels.

• Supported by platforms.

They were not simply placed directly on structural members.

The correct ballast principle is:

Water Tank

↓

Supporting Platform

↓

Structural Member

↓

Base System

This prevents local overload and deformation.

Guy Wire Inspection

Guy wires provide additional lateral stability.

They are especially important for:

• Relay towers.

• Tall temporary structures.

• Large exposed frames.

Inspection includes:

• Cable condition.

• Connection points.

• Tension.

• Direction.

• Ballast connection.

The relationship between ballast and guy wires is explained in:

How Do Temporary Concert Structures Resist Wind Loads?.

Inspection Must Continue During Construction

Inspection is not only performed at the end.

Large projects require continuous checking.

For example:

After Structural Assembly

Check:

• Geometry.

• Connections.

• Bracing.

After Equipment Installation

Check:

• Added loads.

• Rigging.

• Cable management.

Before Operation

Check:

• Complete system condition.

• Safety access.

• Emergency routes.

This is why a large concert requires many days of preparation.

The construction timeline includes not only assembly but also testing and verification.

More details:

Why Does Construction Take Nearly Two Weeks for a Stadium Concert?

Temporary Structure Inspection Checklist

A simplified engineering checklist:

Engineering Lessons from Temporary Structure Inspection

1. Inspection Is About Load Control

The purpose is not only finding visible defects.

It is confirming that every load travels through the correct path.

2. Small Components Can Have Large Safety Effects

Examples:

• A missing brace.

• An incorrect base adjustment.

• A loose connection.

• A damaged safety cable.

Small details can influence the entire system.

3. Temporary Does Not Mean Less Strict

A temporary concert structure may exist for only a few days.

However, it supports:

• Thousands of people.

• Heavy equipment.

• Suspended systems.

• Large wind-exposed surfaces.

Therefore, inspection standards must remain rigorous.

4. Safety Comes from System Coordination

A safe event structure is not created by one strong component.

It requires:

• Correct design.

• Proper installation.

• Suitable materials.

• Accurate loading.

• Final inspection.

Conclusion

Temporary structure inspection is the final engineering step before a concert venue becomes an operating environment.

A large stadium concert structure combines many independent systems:

• Main stages.

• Roof structures.

• Ringlock towers.

• LED supports.

• Audio systems.

• Rigging.

• Ballast systems.

Before operation, engineers must verify that these systems work together safely.

The inspection process covers:

• Structural stability.

• Connections.

• Bracing.

• Alignment.

• Rigging.

• Stage safety.

• Ballast.

• Guy wires.

• Access systems.

The audience sees the finished performance.

Engineers see the invisible system behind it:

A successful temporary structure is not only built correctly. It is inspected, verified and confirmed ready before people enter the venue.
