15x13x6m Aluminum Outdoor Concert Stage Truss System

5 0 Reviews

Elevate your large-scale events with our heavy-duty aluminum outdoor concert stage truss system. Measuring 15m L x 13m D x 6m H, this durable, TUV-certified modular structure provides a reliable framework for lighting, audio, and LED displays at festivals, concerts, and exhibitions. Easy to assemble and built to last, it's the ideal solution for professional event production.

Price: ￥ 72760


Availability:



Inquire

Brand:
Dragonstage

Product Description

Our 15m x 13m x 6m Aluminum Outdoor Concert Stage Truss is a professional-grade ground support system engineered for superior strength and versatility in large-scale event production. Constructed from high-grade, lightweight 6061-T6 aluminum alloy, this modular stage platform and truss structure is designed for quick assembly and dismantling, making it highly portable for touring and events.

The robust quad (box) truss design ensures exceptional loading capacity for suspending heavy audio equipment, lighting rigs, video walls, and decorative elements safely at height. The system includes the structural framework, vertical support pillars, and the integrated stage platform with a non-slip surface for performer safety.

Key Features:

Dimensions: 15m Length x 13m Depth x 6m Height
Material: High-strength 6061-T6 Aluminum Alloy
Structure: Ground Support System with vertical towers and a flat roof design
Assembly: Features a fast and easy spigot/bolt connection system for efficient setup
Application: Ideal for large outdoor concerts, music festivals, corporate events, and exhibitions

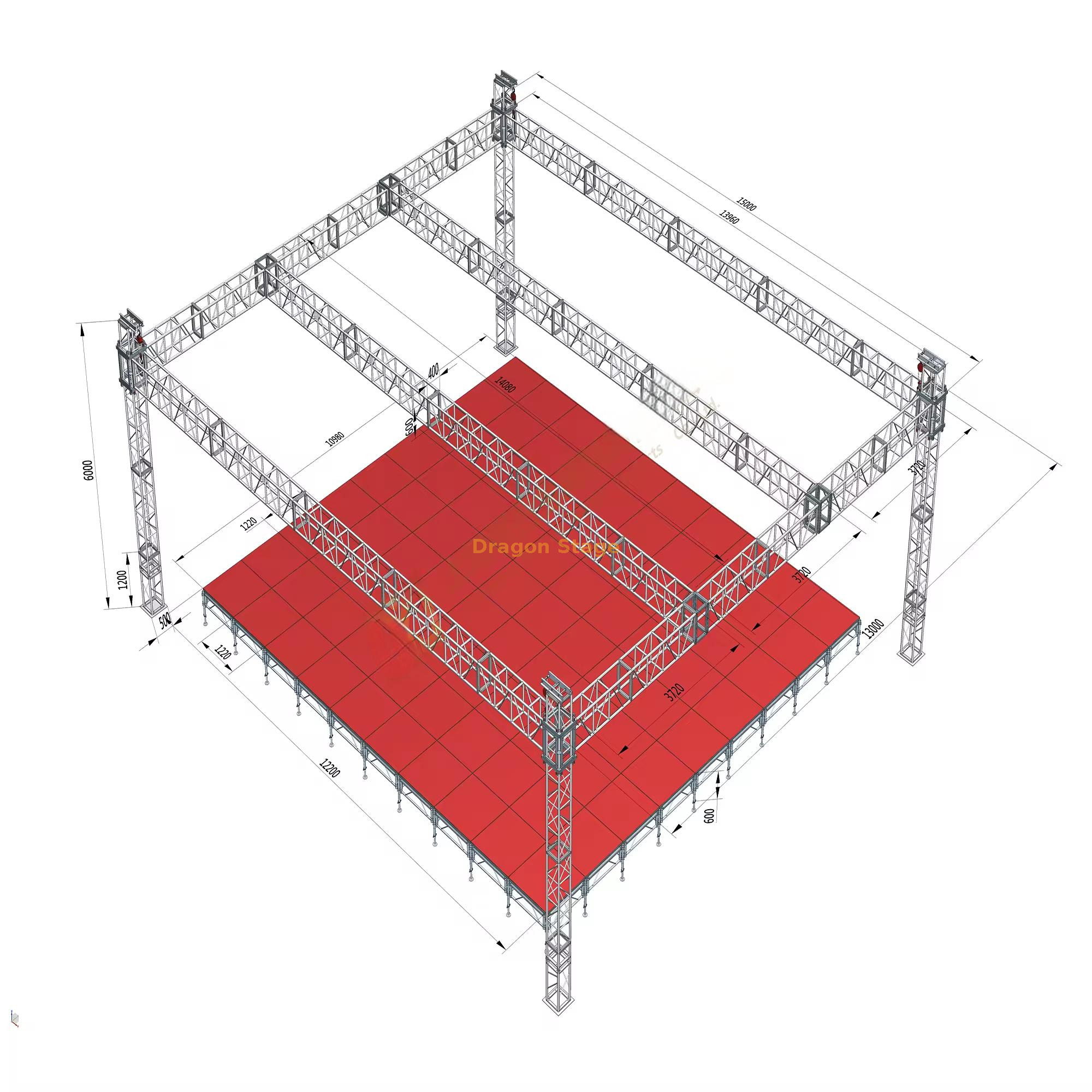

15x13x6m Aluminum Outdoor Concert Stage Truss System

packing weight:1800kg

packing volume:30cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
15.00 m Beam(front)	4 sets	3.00 m	50×3.0	CS500×600	20pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
13.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	6pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	6pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			4pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
