Understanding the Real Timeline Behind a Large Temporary Concert Venue
When audiences enter a stadium for a large concert, they usually see only the finished result:
A huge main stage.
Giant LED screens.
Suspended speakers.
Lighting systems.
Audience areas.
Professional backstage facilities.
The venue may appear to have been created overnight.
However, a large stadium concert is actually a temporary engineering project that requires careful planning, transportation, structural installation, production integration and final restoration.
During the 2026 Guangzhou Pearl Beer Festival Music Festival, the overall project period extended from 10 July to 21 July.
At first glance, nearly two weeks may seem like a long time to build a temporary stage.
However, this period did not represent only stage construction.
It included:
Material transportation.
Site preparation.

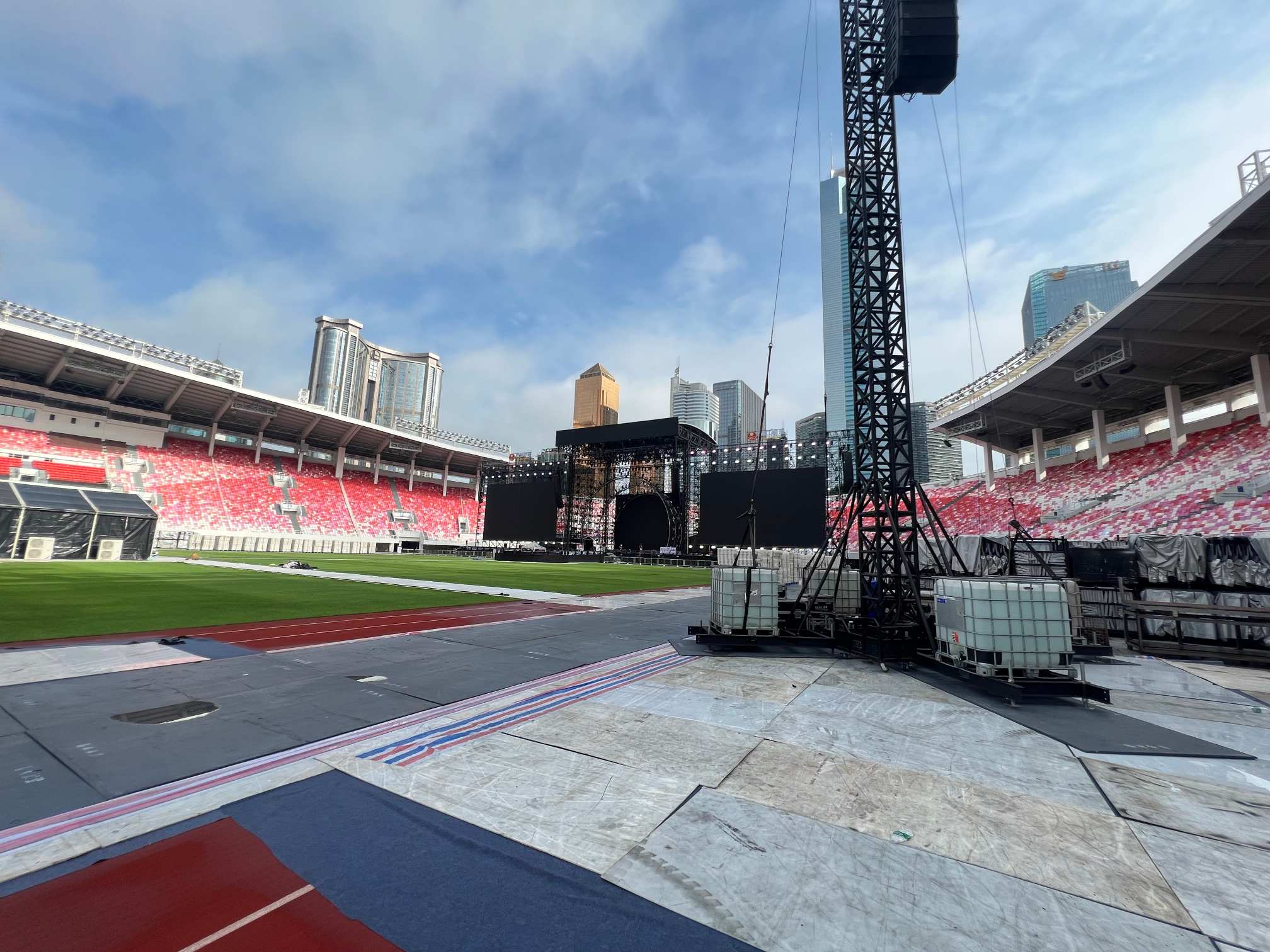

Ground protection.
Structural installation.
Roof assembly.
Ringlock construction.
LED installation.
Audio installation.
Lighting installation.
System testing.
Rehearsals.
Event operation.
Stage dismantling.
Stadium restoration.
Therefore:
The timeline of a stadium concert is not the time required to build a stage. It is the complete lifecycle of creating, operating and removing a temporary venue.
The overall construction sequence can be understood in Construction Sequence of a Stadium Concert Stage: From Empty Venue to Complete Event Structure.
The Complete Project Timeline: 10 July to 21 July
A stadium concert project can be divided into several phases.
Installing a large curved roof membrane requires suitable weather conditions.
Operating lifting equipment during strong winds may create unacceptable risks.
Installing electrical systems during heavy rain requires additional protection.
Therefore, construction schedules must include weather considerations.
The project timeline is not controlled only by manpower.
It is also controlled by the environment.
Construction Time Is a Balance Between Speed and Safety
A professional event company does not simply try to build as quickly as possible.
The goal is:
Safe installation.
Correct structural assembly.
Reliable operation.
On-time event delivery.
Efficient dismantling.
Reducing construction time without proper control may create:
Structural risks.
Installation errors.
Equipment problems.
Safety issues.
Temporary does not mean simple.
A structure used for only one day still requires the same engineering discipline as a permanent structure.
Why Does Dismantling Also Require Time?
After the concert ends, the project is not finished.
The venue must return to its original condition.
Dismantling follows a controlled reverse sequence.
Usually:
Remove performers’ equipment.
Remove lighting and audio systems.
Remove LED screens.
Remove rigging.
Dismantle Ringlock structures.
Lower and disassemble roof systems.
Remove stage decks.
Remove ground protection.
Restore the stadium area.
The dismantling process must be as carefully planned as installation.
Removing a temporary structure incorrectly can damage:
Equipment.
Stadium surfaces.
Components.
It can also create safety hazards.
Engineering Lessons from the Two-Week Timeline
1. A Concert Is a Temporary Construction Project
Although the event lasts only one day, the engineering lifecycle lasts much longer.
2. Structural Installation Is Only One Part of the Timeline
Transportation, testing, rehearsal, operation and restoration all require time.
3. Weather Is a Major Engineering Variable
Outdoor temporary structures are always affected by:
Heat.
Rain.
Wind.
4. Urban Events Require More Than Technical Planning
A stadium concert must also consider:
Regulations.
Noise.
Public safety.
Traffic.
Neighbouring environments.
Conclusion
The reason a stadium concert stage requires nearly two weeks is not because the structure itself is difficult to assemble alone.
The timeline includes the complete process of transforming a stadium into a temporary performance venue.
From 10 July to 21 July, the project involved:
Transportation.
Ground protection.
Structural construction.
Roof installation.
Ringlock systems.
LED installation.
Audio and lighting integration.
Rehearsal.
Concert operation.
Dismantling.
Site restoration.
In addition, the construction schedule had to adapt to:
Guangzhou summer heat.
Urban night-work restrictions.
Guangdong typhoon and rainfall conditions.
A large concert is therefore not simply a performance.
It is a temporary engineering project operating under structural, environmental and operational constraints.
The audience sees one night of entertainment. Engineers manage nearly two weeks of planning, construction, operation and restoration to make that night possible.
