packing weight:1650kg
packing volume:15cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 13.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.30 m | 50×3.0 | CS289×289 | 2pcs |
| 7.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 1pcs |
| 6.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.70 m | 50×3.0 | CS289×289 | 4pcs |
| 6.70 m Ladder truss | 6 sets | 3.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 6pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 6pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 12pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 177.66 | 1pcs |

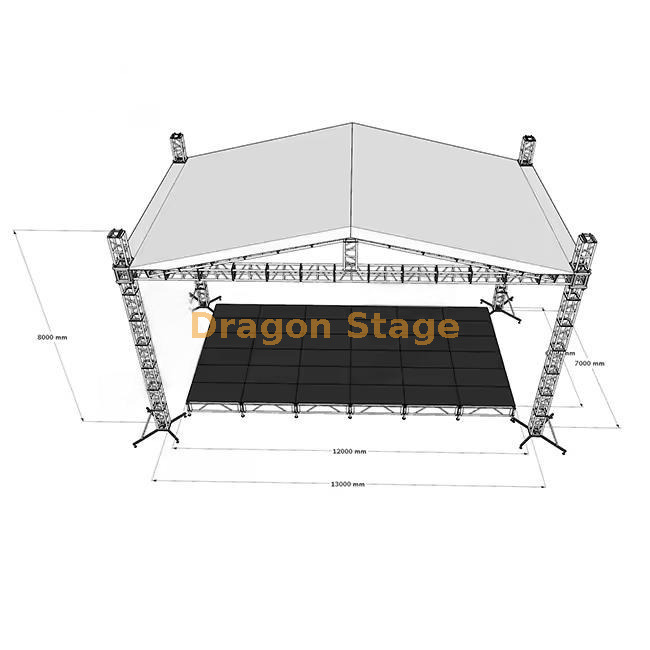

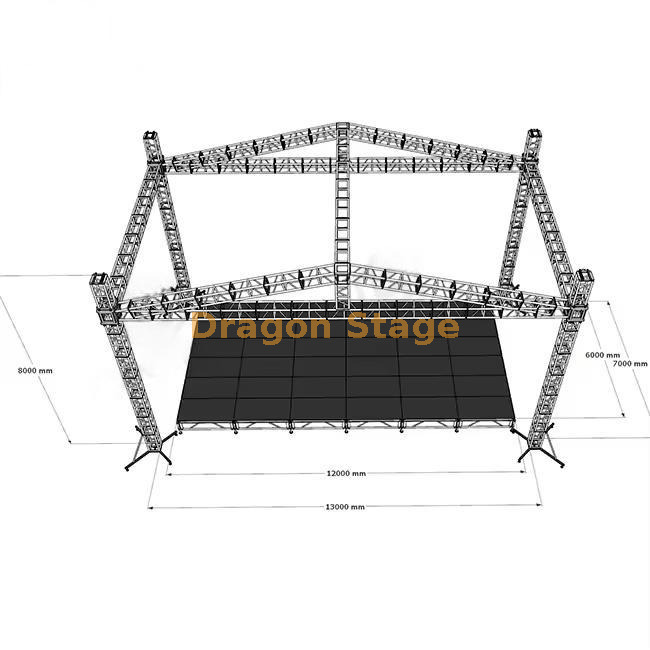

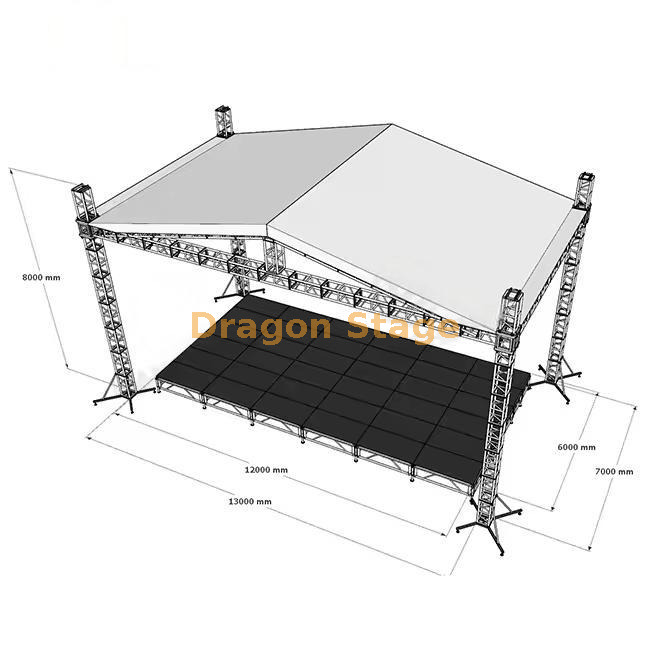

The 13m × 7m × 8m Peak Roof Truss System is a complete, ready-to-use outdoor stage solution designed for mid-sized concerts, festivals, corporate events, school performances, and regional tours.
Featuring a classic peaked roof for superior weather protection and wind resistance, this all-aluminum spigot truss system includes a full raised stage platform, four reinforced corner towers, and optional PVC canopy. With a generous 13-meter front width, 8-meter internal height, and compact 7-meter depth, it offers excellent sightlines and rigging space for lighting, LED screens, and sound while fitting perfectly into smaller venues or budgets.
Fast assembly with conical connectors, TUV-certified materials, and proven reliability make this one of the most popular mid-range stage roofs among rental companies and event organizers worldwide.
