packing weight:3440kg
packing volume: 55cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 21.00 m Beam(front) | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 14pcs |
| 2.00 m | 50×4.0 | CS600×760 | 0pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 14.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 8pcs |
| 2.00 m | 50×4.0 | CS600×760 | 2pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 9.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS450×450 | 12pcs |
| 2.00 m | 50×3.0 | CS450×450 | 0pcs |
| 1.00 m | 50×3.0 | CS450×450 | 0pcs |
| beam cube | 6 faces | CS600×760 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 2.10 m | 50×3.0 | CS389×389 | 2pcs |
| 14.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 1pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.70 m | 50×3.0 | CS389×389 | 4pcs |
| 10.70 m Ladder truss | 12 sets | 3.00 m | 50×3.0 | CL40,389*50 | 36pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 0pcs |
| 1.70 m | 50×3.0 | CL40,389*50 | 12pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 0pcs |
| 1 | Connect plate with clamp | CS389×389 | 2pcs |
| Single clamp | 24pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 456.26 | 1pcs |

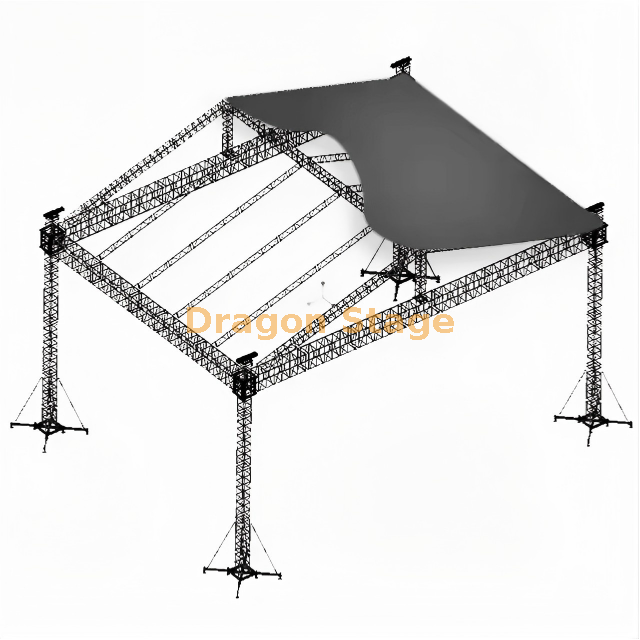

Elevate your large-scale event with our Professional Aluminum Alloy Pitched Roof Truss System. Measuring an impressive 21 meters in length, 14 meters in depth, and standing 10 meters high, this structure is specifically designed for the demands of major outdoor concerts, festivals, and high-profile corporate events.
Key Features:
Massive Dimensions: Provides an expansive, protected area for stage performances, with a 10m height that allows for dramatic lighting and clear sightlines.
Superior Load Capacity: Constructed from high-strength aluminum alloy (6061-T6), it is engineered to safely support heavy-duty moving head lights.
Modular Pitch Roof Design: The double-pitched roof effectively manages water runoff and offers a professional, touring-grade aesthetic.
Mobile & Portable: Despite its scale, the system is modular for efficient transportation and features a user-friendly assembly process using spigot or bolt connections.
Versatile Rigging: Integrated points for speaker wings and line arrays, making it a complete solution for sound, lighting, and weather protection.
Applications: Ideal for world-class outdoor tours, stadium events, large-scale exhibitions, and professional stage productions requiring the highest standards of safety and structural integrity.
