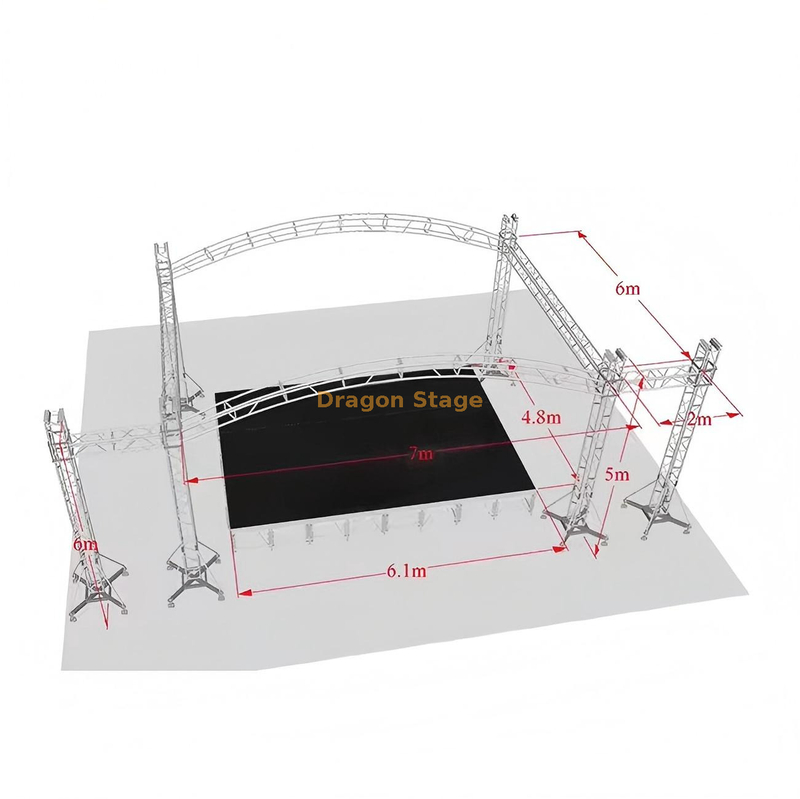

7x6x5m Aluminum Curved Roof Stage Truss System with 2m Speaker Wings

5 0 Reviews

Upgrade your outdoor events with our 7m x 6m x 5m Aluminum Alloy Curved Roof Stage. This professional mobile truss system features integrated 2m wide speaker wings, providing a heavy-duty, modular solution for concerts, festivals, and exhibitions.

Price: ￥ 52586


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:1440kg

packing volume:11cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
7.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	2 pcs
6.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	4 pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.70 m	50×3.0	CS289×289	2 pcs
6.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
9.00 m Arch Beam	2 sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		2.50 m	50×3.0	CS289×289	pcs
9.00 m Ladder truss	2 sets	3.00 m	50×3.0	CL30,289*50	pcs
		2.00 m	50×3.0	CL30,289*50	4 pcs
		2.50 m	50×3.0	CL30,289*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	2 pcs
		Connect plate with clamp			2 pcs
		Single clamp			16 pcs
		Double clamp			8 pcs
		roof canopy material:pvc, Blue Colour or customized.		113.24	1 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
2.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	2 pcs
		1.00 m	50×3.0	CS289×289	pcs
5.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	2 pcs
Wings Tower	Spigot Sleeve Block S				2 pcs
	Steel Base S				2 pcs
	Top Section S				2 pcs
	Manual hoist,BA05 2Tons				2 pcs
	Spigot Hinge Section,Height 1m				2 pcs
	Fibre sling,BA04,2 tons 3m				2 pcs
	Long outrigger				8 pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

Our Curved Roof Assembly Aluminum Alloy Mobile Stage is a high-performance rigging solution designed for event professionals who require a professional look with rapid deployment. This system combines a spacious 7m wide by 6m deep footprint with a commanding 5m vertical clearance, making it ideal for mid-sized outdoor festivals, corporate events, and live performances.

Key Features

Integrated Sound Support: Includes two specialized 2m wide side wings specifically engineered for hanging line array speakers or branding banners, ensuring optimal audio dispersion without sacrificing stage space.
Durable & Lightweight: Fabricated from high-grade aluminum alloy (6061-T6/6082-T6), providing exceptional load-bearing capacity while remaining half the weight of traditional iron trusses for easier transport.
Advanced Roof Design: The curved (arch) roof structure not only provides a modern aesthetic but also offers superior strength and improved water runoff for outdoor environments.
Modular Assembly: Utilizes a standard spigot or bolt connection system for quick, secure installation and easy breakdown.

Technical Specifications

Feature	Dimension/Detail
Main Stage Area	7m (Length) x 6m (Depth) [User]
Clear Height	5m [User]
Speaker Wings	2m Wide (Each side)
Material	Aluminum Alloy 6061-T6 or 6082-T6
Tube Size	Typically 50x3mm main tube
Application	Concerts, Festivals, Exhibitions, Trade Shows
