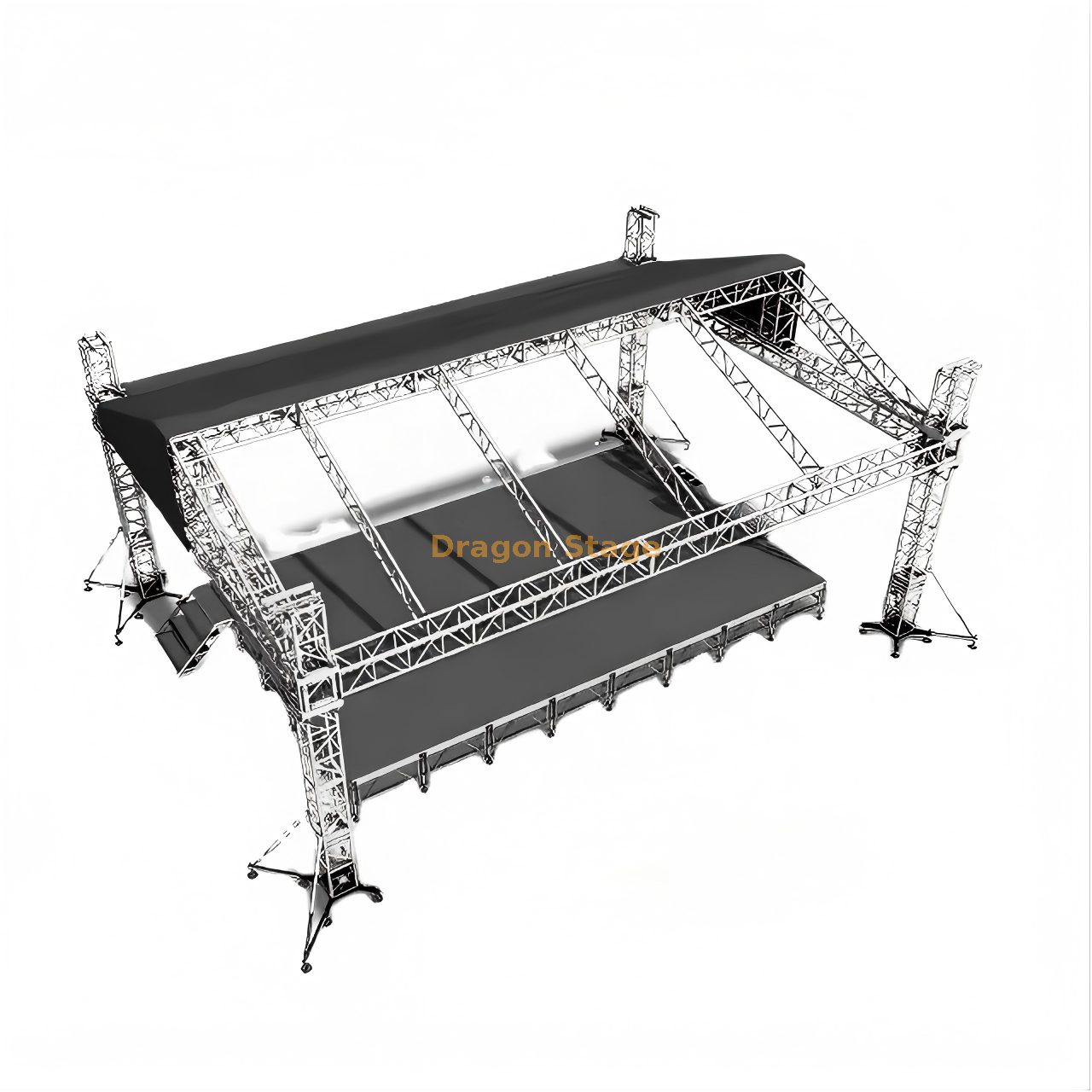

11x8x6m Professional Aluminum Saddle Roof Stage Truss System for Outdoor Events

5 0 Reviews

Looking for a durable, professional stage setup? Our 11m x 8m Aluminum Alloy Saddle Roof Truss offers a high-load capacity and sleek design. Perfect for outdoor concerts, festivals, and mobile events. Lightweight, easy to assemble, and built for performance. Shop now for the ultimate event infrastructure!

Price: ￥ 57702


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:1470kg

packing volume:11cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
8.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
11.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS289×289			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.80 m	50×3.0	CS289×289	2pcs
11.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	3pcs
		2.00 m	50×3.0	CS289×289	1pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.20 m	50×3.0	CS289×289	4pcs
4.20 m Ladder truss	10 sets	3.00 m	50×3.0	CL30,289*50	10pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.20 m	50×3.0	CL30,289*50	10pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			20pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		157.36	1pcs

11x8x6m Professional Aluminum Saddle Roof Stage Truss System for Outdoor Events

Elevate your next production with our Professional Aluminum Alloy Saddle Roof Mobile Stage. This high-performance truss system is engineered for durability and aesthetic appeal, featuring a distinctive curved "saddle" roof design that provides excellent water drainage and superior overhead clearance for lighting rigs and audio equipment.

Key Features

Premium Material: Constructed from high-strength Aluminum Alloy, ensuring a lightweight yet incredibly robust structure that is resistant to corrosion.
Optimized Dimensions: With a spacious 11m length, 8m depth, and 6m peak height, this stage provides ample room for performers and complex equipment setups.
Saddle Roof Design: The curved roof profile not only looks modern but is specifically designed to handle outdoor weather conditions by preventing water pooling.
Easy Assembly: Designed for portability, the bolt/spigot connection system allows for efficient setup and teardown, making it ideal for touring and mobile event companies.
Versatile Application: The perfect solution for outdoor festivals, corporate events, wedding ceremonies, and mid-sized concert productions.

Technical Specifications
