14x10x9m Outdoor Aluminum Peak Roof Truss System – 9m High Stage Rigging with Dual 8m Audio/LED Wings

5 0 Reviews

Host world-class events with our 14m x 10m x 9m Aluminum Peak Roof Truss. Featuring dual 8m side wings for speakers and LED screens, this high-strength mobile stage system is designed for massive load-bearing and rapid outdoor assembly.

Price: ￥ 135430


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:3600kg

packing volume:35cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
14.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	3pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS389×389			0pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.40 m	50×3.0	CS289×289	3pcs
10.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		2.20 m	50×3.0	CS289×289	6pcs
7.20 m Ladder truss	6 sets	3.00 m	50×3.0	CL30,289*50	6pcs
		2.00 m	50×3.0	CL30,289*50	6pcs
		2.20 m	50×3.0	CL30,289*50	6pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
	1	Connect plate with clamp		CS289×289	3pcs
		Single clamp			12pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		241.36	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
11.00 m Wings Beam	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
8.00 m Wings Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

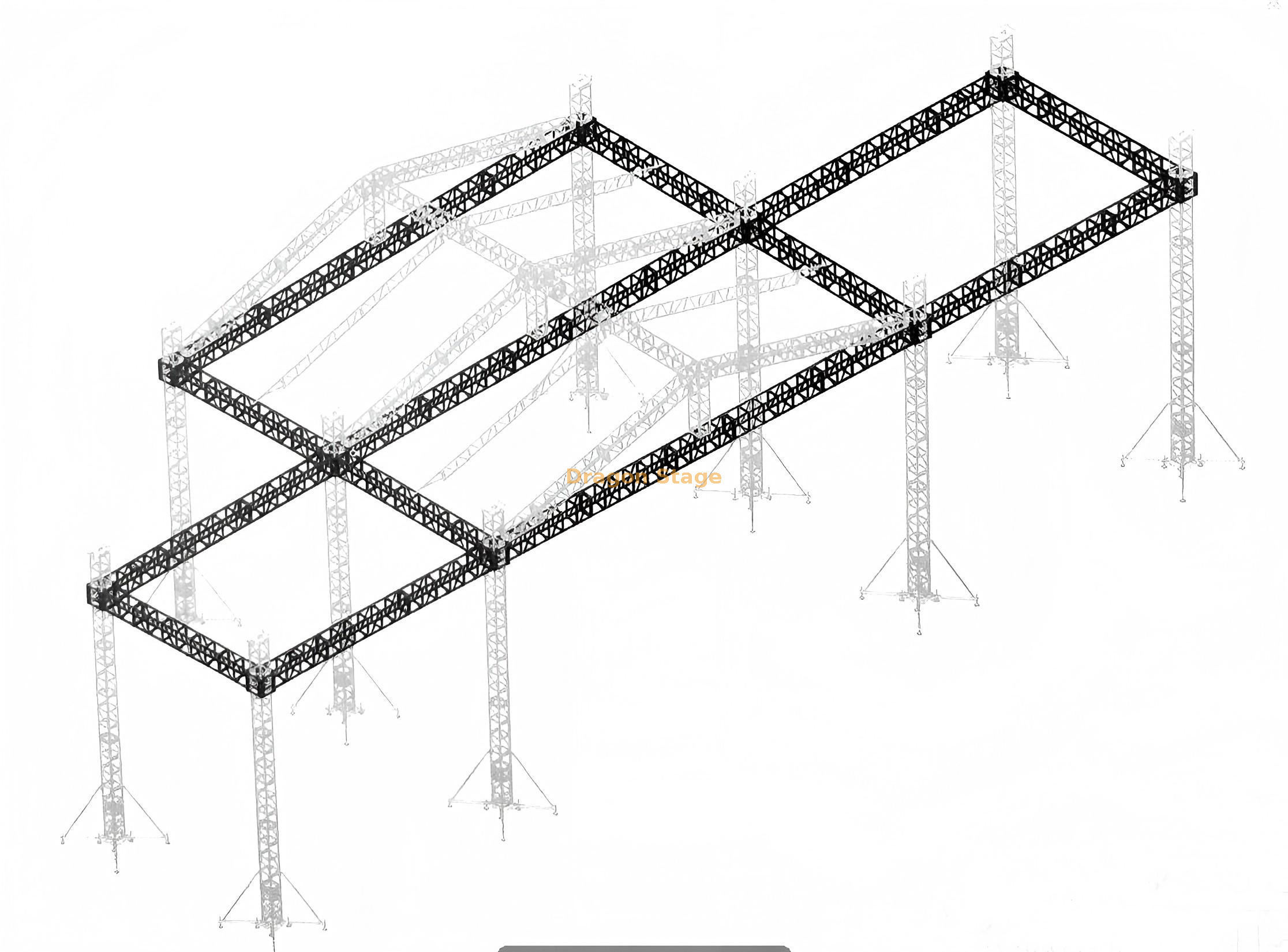

16x10x9m Outdoor Aluminum Peak Roof Truss System

Deliver a professional festival-grade experience with our 14m x 10m Peak Roof Aluminum Alloy Stage Truss System. Standing at an impressive 9 meters tall, this flagship structure is engineered for stadium-level concerts, major outdoor festivals, and large-scale corporate events that require massive overhead clearance and heavy equipment rigging.

Key Features:

Massive Span & Height: A 14m length and 10m depth provide a vast covered stage area, while the 9m height ensures maximum visibility and professional-grade clearance for complex lighting rigs.
Integrated Side Wings: Features two dedicated 8m wide side wings, specifically designed to securely hang heavy line array speaker systems and large-format LED video walls.
Weather-Resistant Peak Roof: The aerodynamic peak roof design facilitates efficient water runoff and provides superior structural integrity against wind loads compared to flat-roof systems.
Heavy-Duty Lifting Towers: Equipped with high-stability ground support towers and outriggers, allowing for the safe hoisting of the entire roof grid once fully rigged.
6082-T6 Aluminum Construction: Built with industry-standard, high-grade aluminum alloy for a rust-proof finish and an exceptional strength-to-weight ratio.

Specifications:

Main Dimensions: 14m (L) x 10m (D) x 9m (H)
Side Wings: 2x 8m wide wings for Speaker/LED hanging
Material: Aluminum Alloy 6061-T6
Roof Type: Sloped Peak / A-Frame Assembly
Application: Music festivals, stadium tours, large political rallies, and massive outdoor trade fairs.
