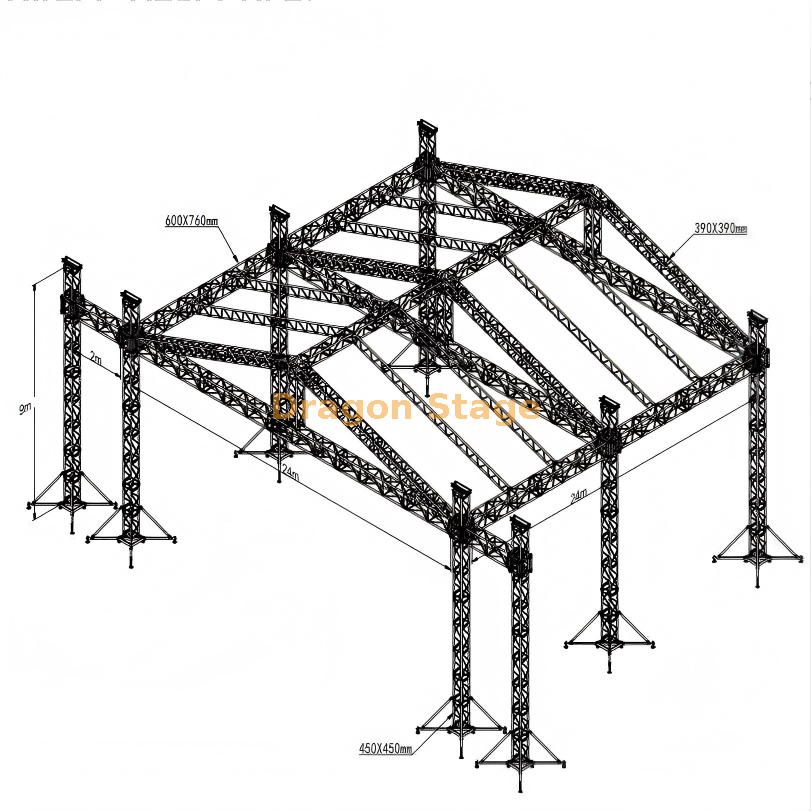

What is the 24x24x9m Large Outdoor Concert Stage Roof Truss System with Side Wings?
It is a robust, heavy-duty aluminum alloy roof truss system designed for large outdoor concerts and festivals. The 24m × 24m main roof with 9m clearance and extended side wings provides ample space for lighting rigs, line array speakers, and LED screens while offering structural stability and partial weather protection.
Why Choose This Large Concert Roof Truss?
✅ Massive 24m × 24m coverage with 9m height ✅ Heavy-duty aluminum alloy construction ✅ Integrated side wings for lighting & audio support ✅ Peak roof design for better load distribution and drainage ✅ Modular system for fast, safe assembly
packing weight:5600kg
packing volume:65cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 24.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS600×760 | 24pcs |
| 2.00 m | 50×4.0 | CS600×760 | 0pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 24.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 16pcs |
| 2.00 m | 50×4.0 | CS600×760 | 0pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS450×450 | 8pcs |
| 2.00 m | 50×3.0 | CS450×450 | 4pcs |
| 1.00 m | 50×3.0 | CS450×450 | 0pcs |
| beam cube | 6 faces | CS600×760 | 2pcs |
| Frame Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L | 4pcs |
| Top Section L | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.40 m | 50×3.0 | CS389×389 | 3pcs |
| 24.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 4pcs |
| 1.20 m | 50×3.0 | CS389×389 | 4pcs |
| 12.20 m Ladder truss | 22 sets | 3.00 m | 50×3.0 | CL40,389*50 | 66pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 22pcs |
| 1.20 m | 50×3.0 | CL40,389*50 | 22pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 1pcs |
| 1 | Connect plate with clamp | CS389×389 | 3pcs |
| Single clamp | 44pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 790.56 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×4.0 | CS600×760 | 0pcs |
| 2.00 m | 50×4.0 | CS600×760 | 2pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 8.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS450×450 | 4pcs |
| 2.00 m | 50×3.0 | CS450×450 | 2pcs |
| 1.00 m | 50×3.0 | CS450×450 | 0pcs |
| Wings Tower | Spigot Sleeve Block L | 2pcs |
| Steel Base L | 2pcs |
| Top Section L | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Professional 24m x 24m Peak Roof Truss – The Ultimate Solution for Large-Scale Events
Engineered for Performance
Constructed from high-grade 6082-T6 aluminum alloy, this system provides incredible
load-bearing capacity for heavy lighting rigs and LED screens. The Peak Roof design ensures efficient water drainage and superior aerodynamics for outdoor stability.
Extended Audio Capabilities
This configuration includes two 2-meter wide side wings, specifically designed for line-array speaker systems. This allows for a clean stage look while providing the necessary height and
structural integrity for professional sound projection.
Technical Specifications:
Dimensions: 24 meters (Length) x 24 meters (Depth)
Clearance Height: 9 meters
Speaker Wings: 2x Side Wings (2m wide each)
Material: High-strength Aluminum Alloy (Bolt/Spigot available)
Main Truss Profile: 600mm x 760mm heavy-duty sections
Roof Truss Profile: 390mm x 390mm / 450mm x 450mm bracing
Application: Festivals, Concerts, Stadium Events, and Large Exhibitions
Key Benefits:
Modular Design: Easy to transport and assemble with standard tools.
Weather Resistant: Anti-corrosion aluminum finish for long-term outdoor use.
Versatile Mounting: Integrated points for speakers, moving heads, and stage backdrops.
1. What are the exact dimensions of this concert roof truss system?
The main roof measures 24m × 24m with a height of 9m, plus extended side wings for additional lighting and speaker support.
2. Is this roof truss system suitable for outdoor concerts?
Yes. Its heavy-duty aluminum alloy construction and peak roof design make it highly stable and weather-resistant, ideal for large outdoor festivals and concerts. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How difficult is it to assemble this large roof truss?
With its modular design and clear connection points, professional crews can assemble the system efficiently. For practical installation steps, check How To Install A Heavy-Duty Concert Roof Stage.
