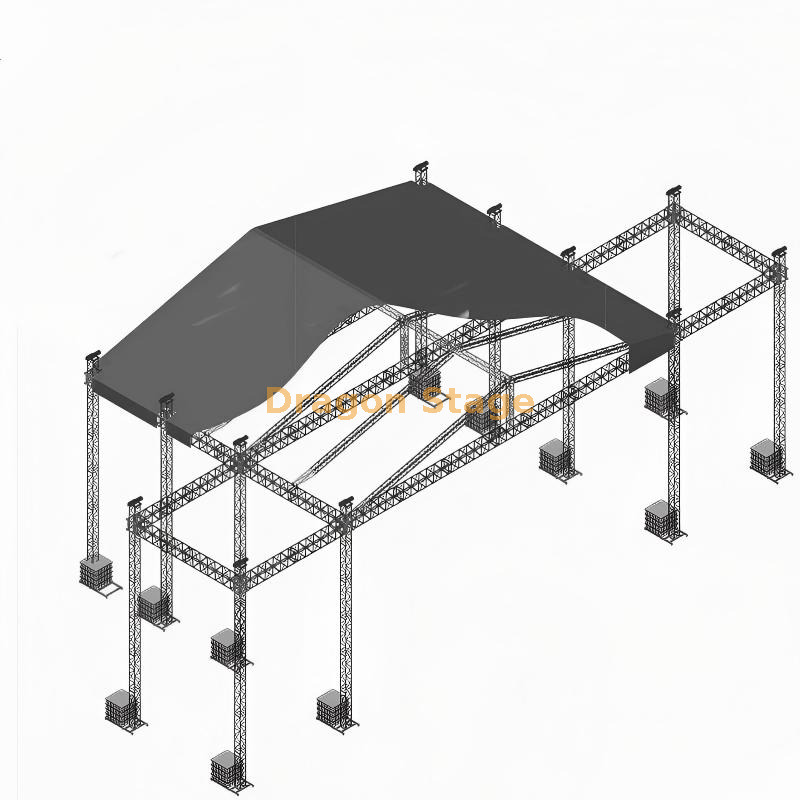

What is the 21x18x12m Large Scale Aluminum Saddle Roof Stage Truss with 6m Audio Side Wings?It is a robust, heavy-duty aluminum saddle roof truss system engineered for major outdoor concerts and festivals. The 21m × 18m main roof with 12m height provides generous performance space, while the integrated 6m audio side wings ensure powerful and balanced sound distribution from line array speakers.
Why Choose This Large Scale Saddle Roof Truss?
✅ Massive 21m × 18m coverage with 12m height ✅ Heavy-duty aluminum alloy construction ✅ Extended 6m audio side wings for line array support ✅ Saddle roof design for enhanced stability and drainage ✅ Ideal for large outdoor concerts and festivals
packing weight:8600kg
packing volume:94cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 21.00 m Beam(front) | 4 sets | 3.00 m | 50×4.0 | CS600×760 | 28pcs |
| 2.00 m | 50×4.0 | CS600×760 | 0pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 18.00 m Beam(side) | 3 sets | 3.00 m | 50×4.0 | CS600×760 | 18pcs |
| 2.00 m | 50×4.0 | CS600×760 | 0pcs |
| 1.00 m | 50×4.0 | CS600×760 | 0pcs |
| 11.00 m Pillar | 8 sets | 3.00 m | FALSE | CS450×450 | 24pcs |
| 2.00 m | FALSE | CS450×450 | 8pcs |
| 1.00 m | FALSE | CS450×450 | 0pcs |
| beam cube | Spigot cube 600x760 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 8pcs |
| Steel Base L + ballast base | 8pcs |
| Top Section L | 8pcs |
1. Dragon stage brand, Load:2000kg,
2. Chain length:25m,
3. lifting speed:4m/min,
4. 380V-3phrase-50HZ
5. Double brake
6. G100 load chain, meeting 8:1/10:1 safety factor.
7. With 0.5M 4Pin-16A Europe plug
8. waterproof: IP54 | 8pcs |
| 1control 8pcs, with Handle case | 2pcs |
| Spigot Hinge Section,Height 1m | 8pcs |
| Fibre sling,BA04,2 tons 3m | 8pcs |
| Long outrigger | 32pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 4 sets | 2.10 m | 50×3.0 | CS289×289 | 4pcs |
| 18.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 10.70 m Oblique Beam | 8 sets | 3.00 m | 50×3.0 | CS289×289 | 16pcs |
| 2.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.70 m | 50×3.0 | CS289×289 | 8pcs |
| 10.70 m Ladder truss | 12 sets | 3.00 m | 50×3.0 | CL30,289*50 | 24pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 12pcs |
| 2.70 m | 50×3.0 | CL30,289*50 | 12pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 2pcs |
| Connect plate with clamp | 4pcs |
| Single clamp | 24pcs |
| Double clamp | 16pcs |
| roof canopy material:pvc, Blue Colour or customized. | 551.46 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 9.00 m Wings Beam | 4 sets | 3.00 m | 50×4.0 | CS520×760 | 12pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 11.00 m Wings Pillar | 4 sets | 3.00 m | FALSE | CS450×450 | 12pcs |
| 2.00 m | FALSE | CS450×450 | 4pcs |
| 1.00 m | FALSE | CS450×450 | 0pcs |
| Wings Tower | Spigot Sleeve Block L | 4pcs |
| Steel Base L + ballast base | 4pcs |
| Top Section L | 4pcs |
1. Dragon stage brand, Load:2000kg,
2. Chain length:25m,
3. lifting speed:4m/min,
4. 380V-3phrase-50HZ
5. Double brake
6. G100 load chain, meeting 8:1/10:1 safety factor.
7. With 0.5M 4Pin-16A Europe plug
8. waterproof: IP54 | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |
Dominate the festival circuit with our Large-Scale Aluminum Alloy Saddle Roof Stage. Specifically designed for high-profile outdoor productions, this massive 21m x 18m structure provides a professional-grade environment for performers, lighting designers, and audio engineers. The iconic saddle roof provides superior weather protection and an impressive visual profile that defines any event space.
Key Features
Massive Footprint: A sprawling 21m length and 18m depth provide a vast performance area, while the 12m height allows for complex vertical lighting and scenic designs.
Integrated Audio/Visual Wings: Features two dedicated 6m wide side wings (PA wings), perfect for hanging heavy line array speaker systems or mounting large-scale LED video walls.
Superior Load Capacity: Constructed from high-grade Aluminum Alloy, this truss is built to support massive weight loads across the entire span, ensuring safety for complex rigging.
Saddle Roof Engineering: The aerodynamic curved roof minimizes wind resistance and ensures efficient water runoff, making it the reliable choice for unpredictable outdoor environments.
Professional Ballast System: Designed with reinforced base plates and tower supports to ensure structural integrity at its full 12m height.
Technical Specifications
Main Stage Dimensions: 21m (L) x 18m (D)
Total Height: 12 Meters
Extension Wings: 2 x 6m wide (12m total extra width)
Material: High-strength Aluminum Alloy (6061-T6 or similar)
Function: Ideal for Music Festivals, Large Concerts, and Stadium Events.
FAQs
1. What are the exact dimensions of this saddle roof truss system?The main roof measures 21m × 18m with a height of 12m, plus 6m audio side wings on both sides for optimal line array speaker support and sound coverage.
2. Is this aluminum saddle roof truss suitable for large outdoor concerts?Yes. Its heavy-duty aluminum alloy construction and saddle roof design provide excellent stability and weather resistance, making it ideal for major festivals and concerts. Learn more in How to Choose Aluminum Truss for Outdoor Events (Safety & Load Guide).
3. How long does it take to assemble this large concert roof truss?With its modular design, professional crews can complete assembly efficiently. For practical installation steps, check How To Install A Heavy-Duty Concert Roof Stage.
