packing weight:1470kg
packing volume:14cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 11.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.10 m | 50×3.0 | CS289×289 | 2pcs |
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 5.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| .70 m | 50×3.0 | CS289×289 | 4pcs |
| 5.70 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 4pcs |
| .70 m | 50×3.0 | CL30,289*50 | 4pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 8pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 137.86 | 1pcs |

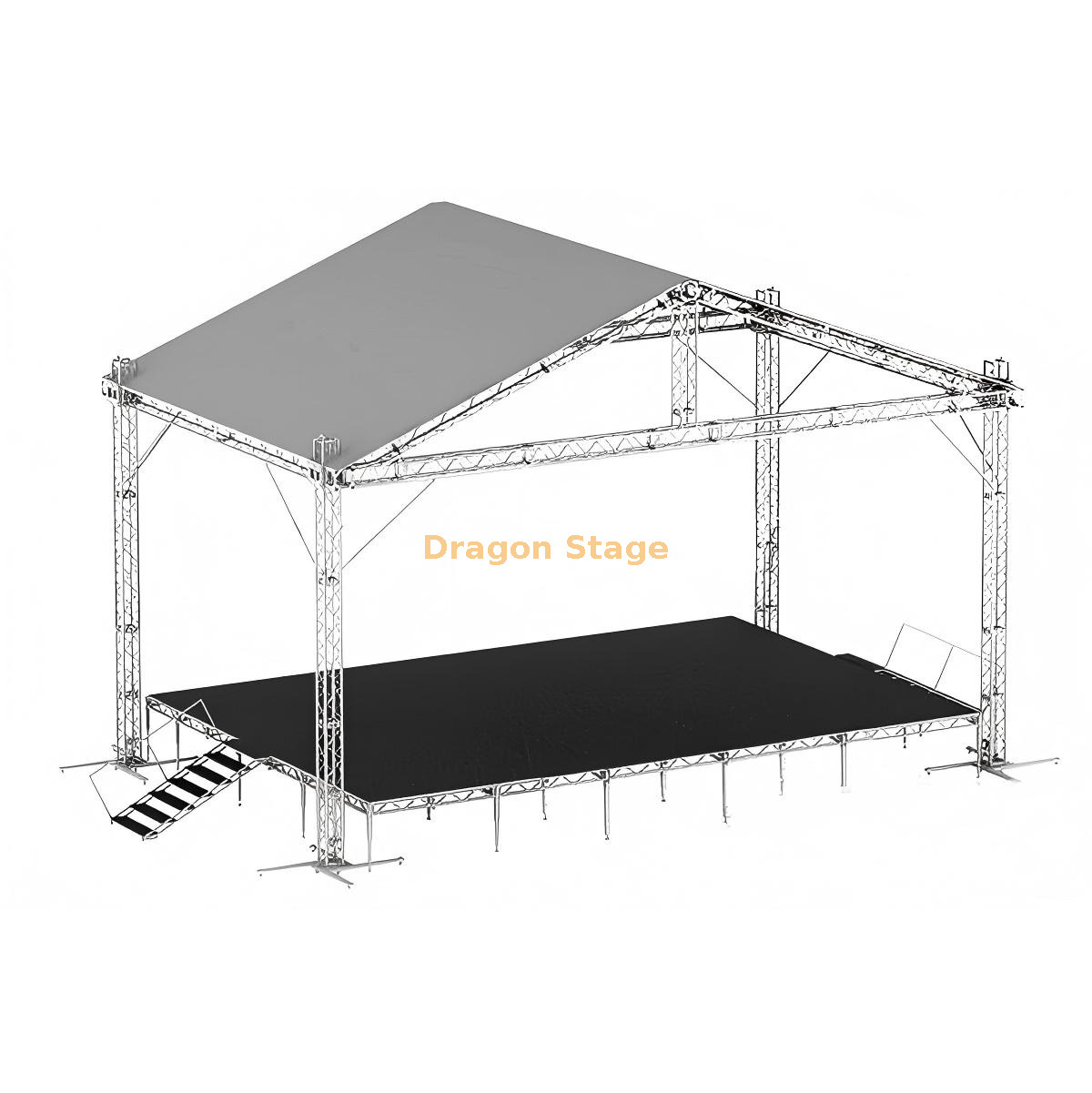

11m x 6m Professional Aluminum Saddle Roof Stage System
Engineered for large-scale outdoor impact, our Saddle Roof Truss Assembly combines a sleek, modern aesthetic with industrial-grade strength. The
peaked saddle design is not only visually striking but also offers superior water runoff and increased vertical clearance for complex lighting and audio setups.
Key Technical Specifications:
Dimensions: 11m (Length) x 6m (Depth) — a versatile footprint for mid-to-large-sized performances.
Impressive Height: 8m total height, providing an expansive "pro-stage" look and plenty of room for high-flying line arrays and vertical banners.
Structure: High-strength Aluminum Alloy construction, offering a high load-bearing-to-weight ratio for safety and ease of transport.
Saddle Roof Design: The peaked roof provides better tension for the PVC canopy, ensuring excellent weather protection and structural rigidity.
Features at a Glance:
Professional Clearance: The 8m height makes this system ideal for touring acts and festivals that require professional-grade lighting rigs.
Rapid Deployment: Modular bolt or spigot connection points allow for fast assembly and teardown by a small crew.
Mobile & Portable: Designed for the event rental industry, all components are lightweight for easy transport in standard trucks.
Weather Resistant: Anti-corrosion aluminum alloy ensures a long lifespan even with frequent outdoor use in coastal or humid environments.
