20x14x10m Full System Spigot Roof Stage with Black Pitched Roof | Aluminum Concert Roof Truss System

5 0 Reviews

20m x 14m full system spigot roof stage with black pitched roof and aluminum truss structure. Designed for concerts, festivals, and outdoor event staging with high load capacity and modular engineering.

Price: ￥ 145090


Availability:



Inquire

Brand:
Dragon Stage

Product Description

20m x 14m Full System Spigot Roof Stage with Black Pitched Roof

This full system spigot roof stage is a 20m wide × 14m deep × 10m high aluminum concert roof structure featuring a black pitched roof design, engineered for outdoor concerts, festivals, and large-scale event staging requiring professional rigging and weather protection.

This full system spigot roof stage is a large-scale outdoor concert structure combining aluminum truss roofing, modular staging, and professional event rigging into one integrated solution.

With an overall size of 20 meters width, 14 meters depth, and 10 meters height, the system provides a spacious covered performance area suitable for concerts, festivals, touring productions, and large public events.

The structure adopts a pitched roof truss design, which improves rainwater drainage and structural load distribution while creating a more professional stage appearance. The black roof configuration also enhances visual presentation for lighting and stage production environments.

The entire system is constructed using heavy-duty aluminum spigot truss, widely recognized in the event industry for its:

Fast modular assembly
High structural stability
Excellent load-bearing performance
Efficient transportation and installation

You can explore related systems in:

Unlike smaller event roofs, this full system integrates:

Main roof truss structure
Stage platform system
Ground support towers
Rigging positions for lighting and LED systems
Outdoor weather protection

This makes it suitable for complete concert and touring productions.

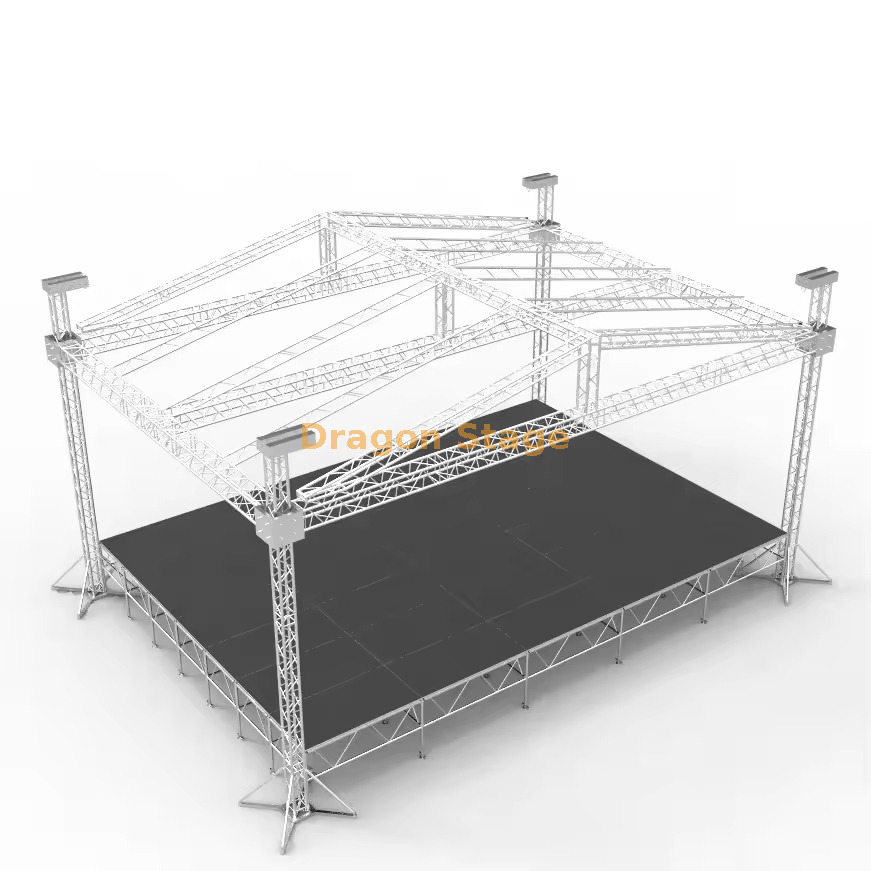

20x14x10m Full System Spigot Roof Stage with Black Pitched Roof.jpg

packing weight:3200kg

packing volume: 35cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
20.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS500×600	18pcs
		2.00 m	50×3.0	CS500×600	3pcs
		1.00 m	50×3.0	CS500×600	0pcs
14.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	8pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
9.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			2pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	2.00 m	50×3.0	CS389×389	3pcs
14.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	1pcs
		1.00 m	50×3.0	CS389×389	0pcs
10.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	4pcs
		2.20 m	50×3.0	CS389×389	4pcs
10.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL40,389*50	24pcs
		2.00 m	50×3.0	CL40,389*50	12pcs
		2.20 m	50×3.0	CL40,389*50	12pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	1pcs
	1	Connect plate with clamp		CS389×389	3pcs
		Single clamp			24pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		434.56	1pcs
