packing weight:2050kg

packing volume:19cbm

This Professional 16m x 12m Pitched Roof Truss System is a premier structural solution for large outdoor events requiring a massive, weather-resistant performance area. Its double-pitched gable design provides exceptional water drainage and a towering aesthetic for major festival stages.

• Massive Performance Footprint: Offers an expansive 16-meter length and 12-meter depth, providing ample space for full-scale concert productions, orchestral performances, and large corporate events.

• Professional Elevation: Stands at a towering 8-meter height, allowing for optimal lighting angles and high-impact visual displays that remain visible across large crowds.

• Reinforced Roof Structure: The pitched "A-frame" roof is designed with multiple cross-beams to support heavy distributed loads, including massive LED screens, line arrays, and complex lighting rigs.

• Industrial-Grade Ground Support: Utilizes a six-tower configuration with heavy-duty ground support bases and reinforced outriggers to ensure maximum stability on uneven outdoor surfaces.

• Durable Aluminum Build: Constructed from certified 6061-T6 aluminum alloy, offering an industry-leading strength-to-weight ratio and natural resistance to corrosion and outdoor environmental wear.

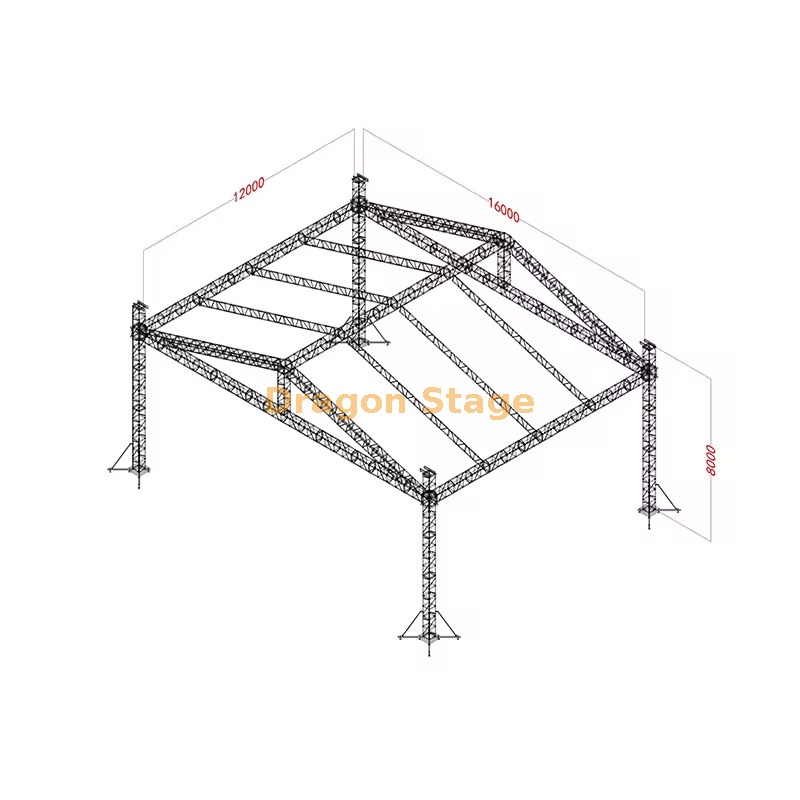

Professional 16x12x8m Heavy-Duty Aluminum Pitched Roof Stage Truss System (8m Height)

1. Introduction

For marquee festival productions and professional outdoor concerts, the stage structure must be a bastion of safety and technical flexibility. The 16x12x8m Heavy-Duty Aluminum Pitched Roof Stage Truss System by DragonStage is a premier engineering solution, providing a massive 192 square meters of covered performance area. With a commanding 8-meter vertical clearance and a high-strength 16-meter clear span, this system is optimized for elite technical riders requiring significant overhead volume. Utilizing the high-precision spigot connection system and industrial-grade aluminum, this structure delivers a stadium-scale presence with the rapid deployment capabilities required for modern event touring.

2. Challenges & Solutions

A major challenge for 16-meter horizontal spans is managing structural "sag" or deflection under the combined weight of the roof and rigged technical equipment. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which offers significantly higher hardness and yield strength than standard alloys, ensuring the 16-meter beams remain rigid under load. Another critical concern for 8-meter high structures is stability against lateral wind loads.

Our ground support towers feature reinforced bases with extended outriggers and heavy-duty leveling jacks to provide a secure center of gravity. To mitigate weather risks, the pitched roof geometry facilitates high-velocity water runoff, preventing the dangerous weight accumulation of water pockets on the PVC canopy during heavy rain.

3. Key Features & Benefits

The 16x12x8m system is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material is solution heat-treated and cold-worked to provide the ultimate strength-to-weight ratio, ensuring the structure remains a professional, long-term asset (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The system features a professional 4-tower ground support lift. This allows the entire 16x12m grid to be rigged with lighting, audio line arrays, and cabling at waist height before being safely hoisted to its 8-meter apex. According to international safety standards, the use of a spigot (conical) connection system is superior for high-vibration concert environments because it creates a solid, unified join that eliminates structural "chatter" (Source:https://www.plasa.org).

To provide a complete venue environment, this trussing is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: Is 16x12m a suitable size for headlining festival acts?A: Absolutely. This size provides a professional 192sqm footprint that comfortably accommodates full backline setups, large bands, and side-stage technical positions.

Q: Can this 8-meter structure support heavy LED screens?A: Yes. The 6061-T8 heavy-duty box truss is specifically engineered for high-capacity rigging. For your specific panel weight, please contact our engineers for a verified load-calculation report.

Q: Is the PVC canopy fire-retardant and waterproof?A: Yes. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets international B1/M2 fire-retardant safety standards.

Q: How do we raise the 16-meter span?A: Due to the scale and weight, we strongly recommend using synchronized 1-ton electric chain hoists to ensure a safe, level, and efficient lift.

5. Strong Call to Action (CTA)

Ensure your next large-scale production is built on a foundation of elite engineering and industrial safety. Contact DragonStage’s engineering team today for a custom quote on the 16x12x8m Heavy-Duty Pitched Roof Stage Truss System. Download our technical specifications and start planning your most successful concert season yet.
