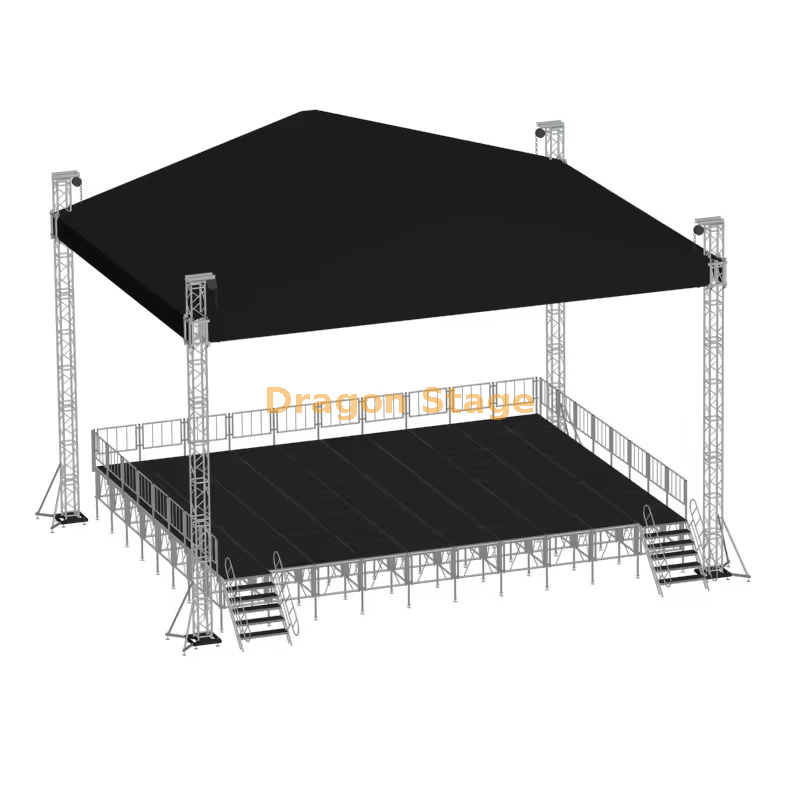

15x6x7m Aluminum Alloy Stage Truss System with Pitch Roof Cover

5 0 Reviews

For medium-scale festival productions and professional outdoor concerts, the stage structure must be a bastion of safety and technical flexibility. The 15x6x7m Aluminum Alloy Stage Truss System by DragonStage is a premier engineering solution, providing a massive 90 square meters of covered performance area. With a commanding 7-meter vertical clearance and a high-strength 15-meter clear span, this system is optimized for technical riders requiring significant overhead volume. Utilizing the high-precision spigot connection system and industrial-grade aluminum, this structure delivers a professional presence with the rapid deployment capabilities required for modern event touring.

Price: ￥ 75314


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:1900kg

packing volume:20cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
15.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS500×600	10pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
6.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	4pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	1.50 m	50×3.0	CS289×289	2pcs
6.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		2.70 m	50×3.0	CS289×289	4pcs
7.70 m Ladder truss	4 sets	3.00 m	50×3.0	CL30,289*50	4pcs
		2.00 m	50×3.0	CL30,289*50	4pcs
		2.70 m	50×3.0	CL30,289*50	4pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			8pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		186.66	1pcs

A major challenge for 15-meter horizontal spans is managing structural "sag" or deflection under the weight of rigged technical equipment. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which offers significantly higher hardness and yield strength than standard alloys, ensuring the 15-meter beams remain rigid under load. Another critical concern for 7-meter high structures is stability against lateral wind loads.

Our ground support towers feature reinforced bases with extended outriggers and heavy-duty leveling jacks to provide a secure center of gravity. To mitigate weather risks, the pitched roof geometry facilitates high-velocity water runoff, preventing the dangerous weight accumulation of water pockets on the PVC canopy during heavy rain
