9x6x7m Pitched/Gable Roof Aluminum Stage Truss Kit (7m Height)

5 0 Reviews

Modular 9m wide, 6m deep, and 7m high-pitched roof aluminum truss stage kit. Designed for efficient setup and breakdown. Perfect for medium-sized outdoor events, roadshows, temporary stages, and festival satellite stages.

Price: ￥ 61730


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:1700kg

packing volume:13cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
9.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	8pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	6 faces	CS289×289			0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.90 m	50×3.0	CS289×289	2pcs
6.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.70 m	50×3.0	CS289×289	4pcs
4.70 m Ladder truss	4 sets	3.00 m	50×3.0	CL30,289*50	4pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.70 m	50×3.0	CL30,289*50	4pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			8pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		114.66	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
3.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
6.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

9x6x7m PitchedGable Roof Aluminum Stage Truss Kit

This highly portable and structurally robust Pitched/Gable Roof Aluminum Stage Truss Kit is an ideal solution for events requiring a professional overhead structure without the footprint of a massive stage. The design balances ease of transportation with essential load-bearing capability.

Key Dimensions: The system is perfectly sized for medium-scale events, featuring a 9-meter width, a 6-meter depth, and a significant 7-meter clear height, which offers excellent visibility and rigging space.
Efficient Roof Design: The classic pitched (gable) roof structure is explicitly engineered for outdoor use, ensuring quick and effective drainage of rainwater, thereby enhancing safety and protecting equipment beneath.

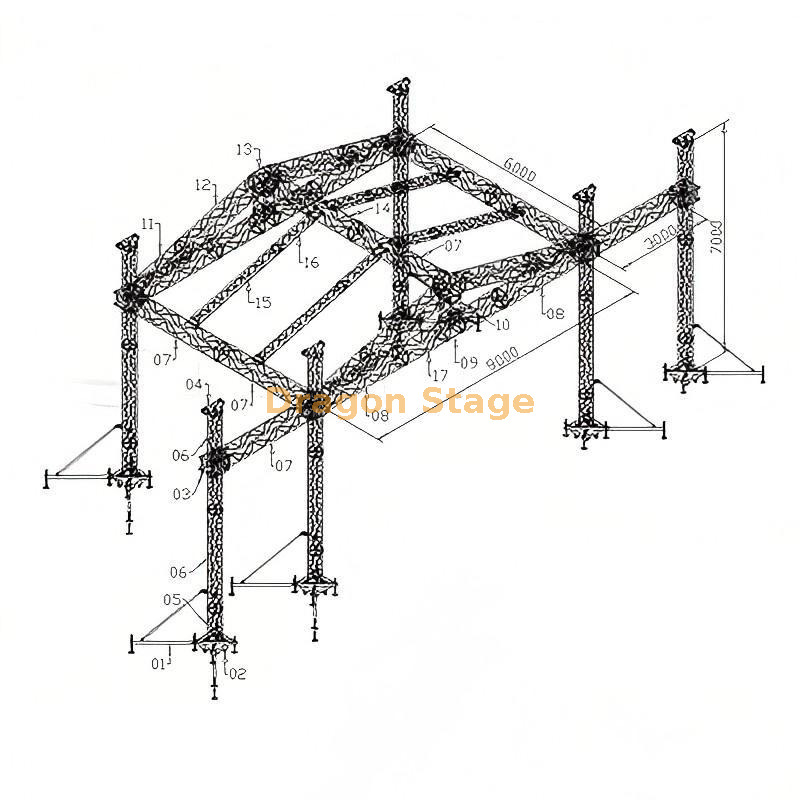

Modular Assembly: The included technical drawing highlights the modularity of the system, using standard box truss components, which ensures straightforward and reliable assembly with robust connection points (e.g., bolt connection).
Versatile Application: Excellent for band performances, corporate event stages, outdoor markets, DJ booths, and temporary coverings. The structure provides a solid frame for rigging lighting, sound, and banners.
Durable Material: Constructed from high-strength, certified 6061 aluminum alloy, offering long-lasting performance, resistance to rust, and a favorable strength-to-weight ratio.
