packing weight:3300kg
packing volume:40cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 18.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 8pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 4pcs |
| beam cube | 6 faces | CS500×600 | 2pcs |
| Frame Tower | Spigot Sleeve Block M | 4pcs |
| Steel Base M | 4pcs |
| Top Section M | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.80 m | 50×3.0 | CS289×289 | 3pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 9.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 9.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 20pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 10pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 10pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| 1 | Connect plate with clamp | CS289×289 | 3pcs |
| Single clamp | 20pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 350.16 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 0pcs |
| 2.00 m | 50×3.0 | CS500×600 | 2pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 7.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 2pcs |
| Wings Tower | Spigot Sleeve Block M | 2pcs |
| Steel Base M | 2pcs |
| Top Section M | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

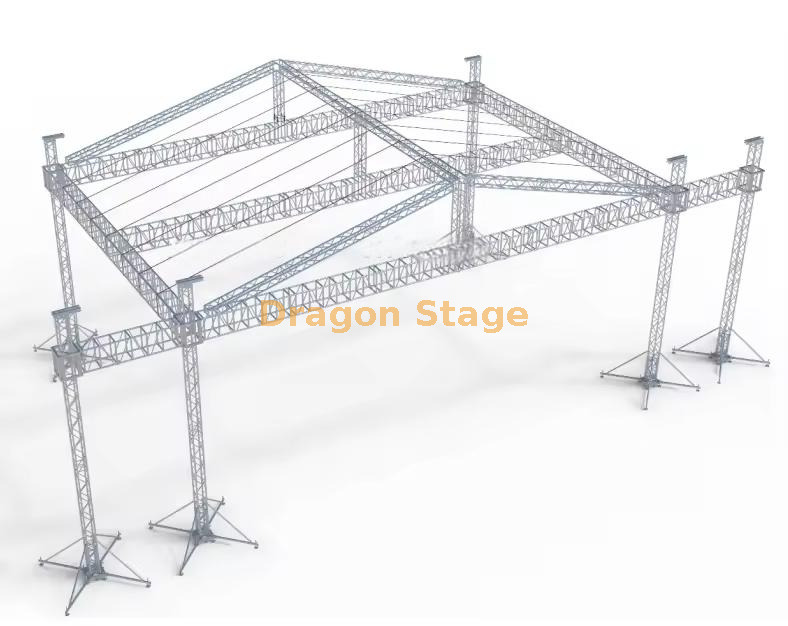

The 18m × 12m × 8m Heavy-Duty Peak Roof Truss System is a proven, high-performance outdoor stage roofing solution trusted worldwide for major concerts, music festivals, corporate events, and touring productions.
Featuring a classic peaked (hip-end) design for excellent water runoff and wind resistance, this all-aluminum spigot truss system delivers an impressive 18-meter front width, 12-meter depth, and 8-meter internal height with outstanding uniformly distributed load capacity – perfect for large LED video walls, heavy line-array PA systems, and extensive lighting rigs.
Fast conical connector assembly, reinforced corner towers with outriggers, and full canopy bracing ensure maximum safety and quick setup by experienced crews. Optional PVC or transparent canopy available. When you need a reliable, great-looking mid-to-large stage roof that performs flawlessly show after show, this 18×12m peaked system is the professional choice.
