packing weight:3800kg
packing volume:75cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 25.00 m Beam(front) | 3 sets | 3.00 m | 50×5.0 | CS680×1010 | 24pcs | |||
| 2.00 m | 50×5.0 | CS680×1010 | 0pcs | |||||
| 1.00 m | 50×5.0 | CS680×1010 | 3pcs | |||||
| 14.00 m Beam(side) | 2 sets | 3.00 m | 50×5.0 | CS680×1010 | 8pcs | |||
| 2.00 m | 50×5.0 | CS680×1010 | 0pcs | |||||
| 1.00 m | 50×5.0 | CS680×1010 | 4pcs | |||||
| 11.00 m Pillar | 6 sets | 3.00 m | FALSE | CS520×520 | 18pcs | |||
| 2.00 m | FALSE | CS520×520 | 0pcs | |||||
| 1.00 m | FALSE | CS520×520 | 0pcs | |||||
| beam cube | 6 faces | CS680×1010 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block L | 6pcs | ||||||
| Steel Base L | 6pcs | |||||||
| Top Section L | 6pcs | |||||||
| Manual hoist,BA05 2Tons | 6pcs | |||||||
| Spigot Hinge Section,Height 1m | 6pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 6pcs | |||||||
| Long outrigger | 24pcs | |||||||

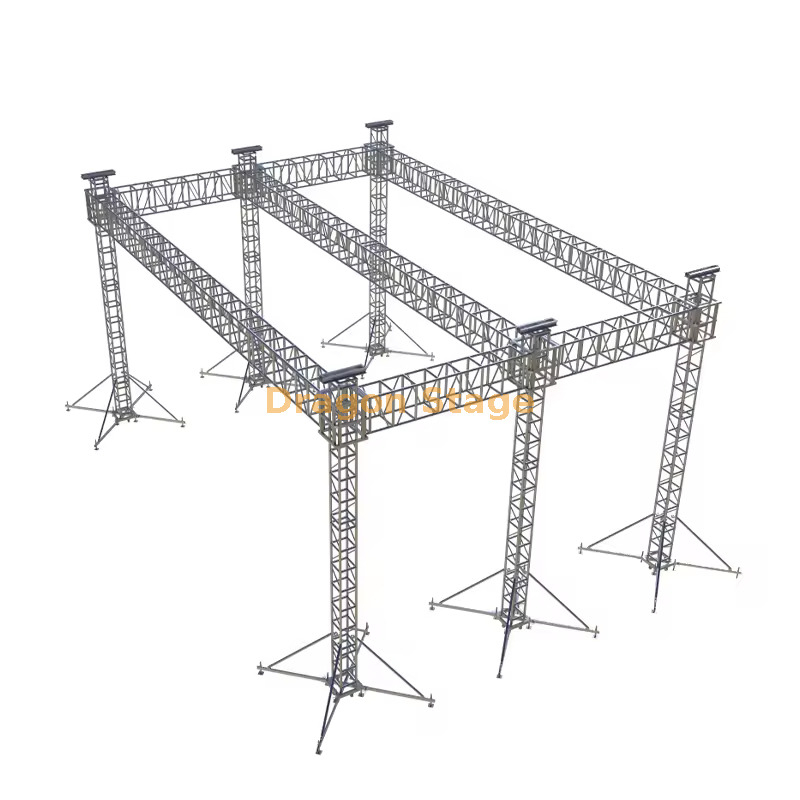

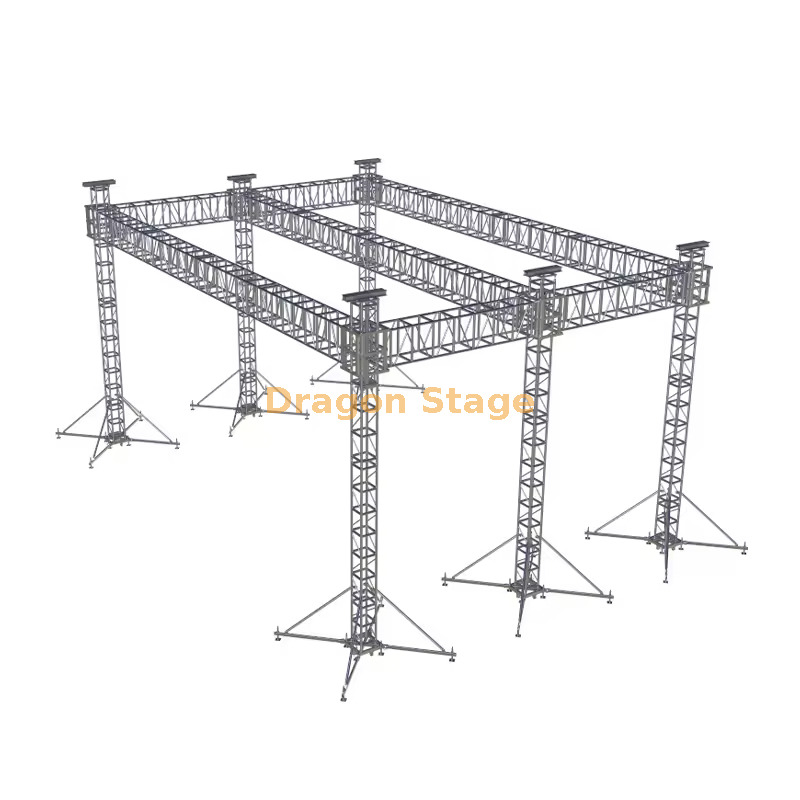

The 25m × 14m × 12m Heavy-Duty Aluminum Stage Roof Truss System is a top-tier large-scale roofing solution designed for major international concerts, music festivals, sports events, and high-profile outdoor productions.
Featuring an impressive 25-meter front span with 12-meter internal height and 14-meter depth, this ground-supported structure is built entirely from certified 6061 aluminum spigot truss (520×520mm and 680×1010mm heavy-duty sections) and delivers exceptional load-bearing capacity — easily supporting giant LED video walls, multiple line-array PA clusters, and extensive lighting and effects rigs.
Fast conical connector assembly, reinforced corner towers with outriggers, and full canopy bracing ensure maximum safety, wind resistance, and rapid setup by experienced crews. When your event demands the biggest clear span and highest rigging points without compromise, this 25×14m roof system is the ultimate professional choice trusted by leading global rental companies.
