packing weight: 4250kg
packing volume: 34cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 18 pcs |
| 2.00 m | 50×4.0 | CS520×760 | 3 pcs |
| 1.00 m | 50×4.0 | CS520×760 | pcs |
| 18.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 12 pcs |
| 2.00 m | 50×4.0 | CS520×760 | pcs |
| 1.00 m | 50×4.0 | CS520×760 | pcs |
| 8.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 12 pcs |
| 2.00 m | 50×3.0 | CS389×389 | pcs |
| 1.00 m | 50×3.0 | CS389×389 | 6 pcs |
| Tower | Spigot Sleeve Block L | 6 pcs |
| Steel Base L | 6 pcs |
| Top Section L | 6 pcs |
| Manual hoist,BA05 2Tons | 6 pcs |
| Spigot Hinge Section,Height 1m | 6 pcs |
| Fibre sling,BA04,2 tons 3m | 6 pcs |
| Long outrigger | 24 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.00 m | 50×3.0 | CS289×289 | 3 pcs |
| 18.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 6 pcs |
| 2.00 m | 50×3.0 | CS289×289 | pcs |
| 1.00 m | 50×3.0 | CS289×289 | pcs |
| 22.00 m Arch Beam | 3 sets | 3.00 m | 50×3.0 | CS289×289 | 18 pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6 pcs |
| .00 m | 50×3.0 | CS289×289 | pcs |
| 22.00 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL40,389*50 | 48 pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 16 pcs |
| .00 m | 50×3.0 | CL40,389*50 | pcs |
| Roof Components |
| spigot multi cube, use for roof beam truss | CS289×289 | 3 pcs |
| Connect plate with clamp | 3 pcs |
| Single clamp | 256 pcs |
| Double clamp | 12 pcs |
| roof canopy material:pvc, Blue Colour or customized. | 604.16 | 1 pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 4 sets | 3.00 m | 50×4.0 | CS520×760 | 4 pcs |
| 2.00 m | 50×4.0 | CS520×760 | pcs |
| 1.00 m | 50×4.0 | CS520×760 | pcs |
| 8.00 m Wings Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8 pcs |
| 2.00 m | 50×3.0 | CS389×389 | pcs |
| 1.00 m | 50×3.0 | CS389×389 | 4 pcs |
| Wings Tower | Spigot Sleeve Block L | 4 pcs |
| Steel Base L | 4 pcs |
| Top Section L | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

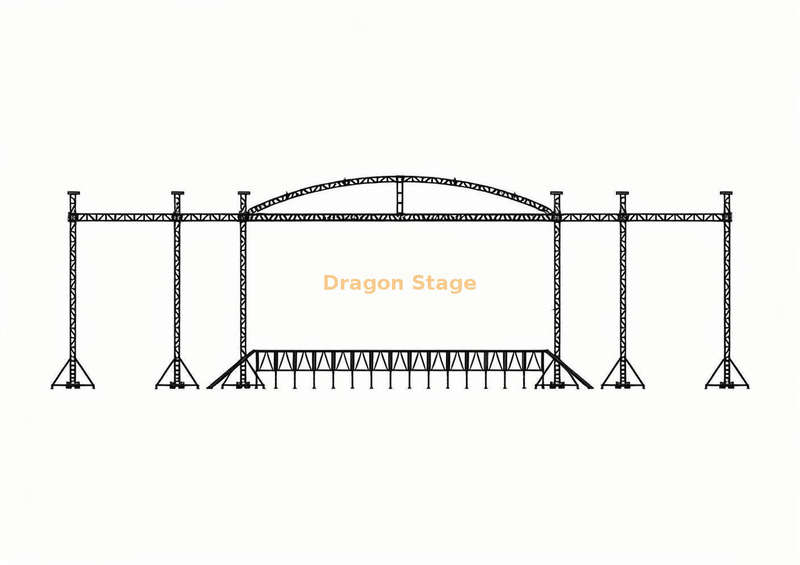

The 20m × 18m × 8m Curved Roof Truss System combines stunning visual impact with outstanding functionality. Featuring a graceful full-arch curved roof design supported by six robust tower pillars and equipped with two 2-meter side speaker wings (PA wings), this system is specifically engineered for medium to large concerts, music festivals, and high-profile outdoor events.
The extended speaker wings allow perfect positioning of line-array speakers on both sides without additional towers, while the smooth curved roof provides excellent weather protection and superior load distribution for heavy lighting, LED screens, and effects. Built from high-grade 6082-T6 aluminum with spigot connection for rapid assembly and maximum safety.
Ideal choice when you need an elegant, wind-resistant roof structure with integrated side PA support and a dramatic architectural look that stands out in any festival lineup.
