packing weight: 4050kg
packing volume: 40cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs |
| 2.00 m | 50×3.0 | CS500×600 | 3pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 18.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 12pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 7.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 6pcs |
| beam cube | 6 faces | CS500×600 | 0pcs |
| Frame Tower | Spigot Sleeve Block M | 6pcs |
| Steel Base M | 6pcs |
| Top Section M | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.00 m | 50×3.0 | CS389×389 | 3pcs |
| 18.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.20 m | 50×3.0 | CS389×389 | 6pcs |
| 10.20 m Ladder truss | 14 sets | 3.00 m | 50×3.0 | CL40,389*50 | 28pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 14pcs |
| 2.20 m | 50×3.0 | CL40,389*50 | 14pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 1pcs |
| 1 | Connect plate with clamp | CS389×389 | 3pcs |
| Single clamp | 28pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 525.76 | 1pcs |
The Gold Standard for Mega-Event Infrastructure

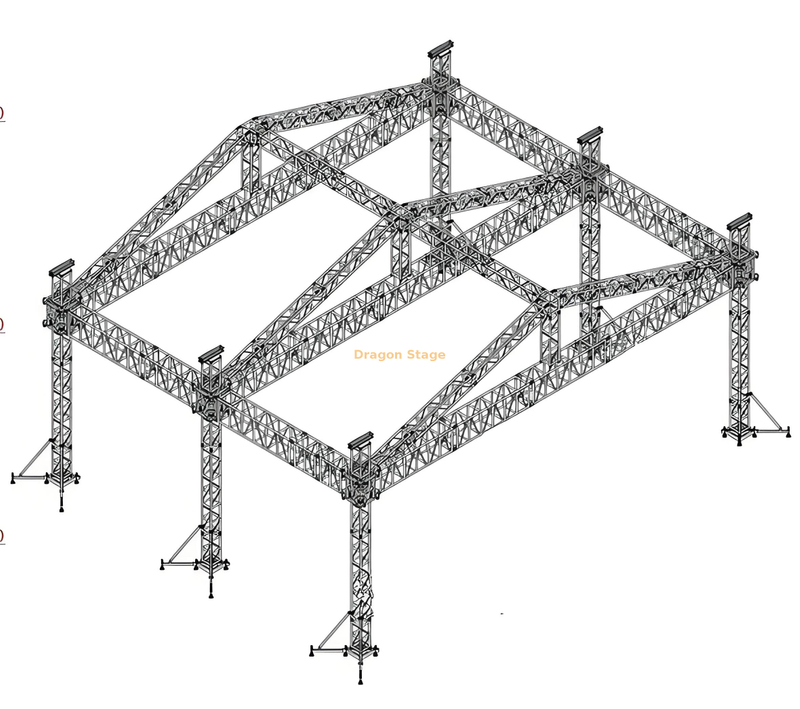

This 20m (W) x 18m (D) x 8m (H) Heavy-Duty Aluminum Roof Truss System is the premier choice for production companies needing maximum scale, height, and reliability for large-format outdoor events. Designed to support the massive load demands of modern concerts, electronic music festivals, and corporate showcases, this structure guarantees a robust and secure overhead environment for performers and technical equipment alike.
Core Specifications for Uncompromising Performance
Engineered for superior structural integrity, this system utilizes high-grade components:
Overall Dimensions (W x D x H): 20 meters x 18 meters x 8 meters (Providing an exceptional 360 square meters of roof coverage and impressive height clearance).
Material: High-Strength Aluminum Alloy (Typically 6082-T6, ensuring high load-bearing capacity while remaining transportable).
Main Beam Truss: CS500x600 Square Truss (Main tube 50mm x 3.0mm), utilized for maximum horizontal span support.
Pillar/Support Truss: CS389x389 Square Truss (Main tube 50mm x 3.0mm), providing solid vertical stability.
Connection Type: Spigot Connection (Pin-and-Conical coupling), enabling rapid, bolt-free assembly and dismantling.
Roof Canopy: High-density, waterproof PVC material (Custom colors available, covering approximately 525.76 square meters).
Professional Features and System Advantages
Integrated Ground Support Tower System: The structure is built around a heavy-duty Frame Tower setup, including Spigot Sleeve Blocks, Steel Bases, and powerful Manual Hoists (2 Tons). This system allows for safe, controlled, and efficient lifting of the massive roof structure.
Exceptional Stability: Supported by six robust vertical pillars and reinforced with 24 long outriggers, the system achieves outstanding lateral stability and wind resistance, meeting stringent safety standards for outdoor deployment.
Optimized Load Capacity: The use of the CS500x600 series for the main beams ensures the necessary strength to suspend heavy payloads, including multiple lines of array speakers, elaborate moving light fixtures, and extensive LED video walls.
Modular and Efficient Logistics: The reliance on standardized lengths of square truss with quick Spigot Connections simplifies transportation volume (approx. 40 cbm total) and drastically reduces on-site setup time and labor costs.
Pitch Roof Design (Implied): The inclusion of specific oblique and ladder beam components indicates a professional pitched roof design, which is essential for efficient water runoff and additional structural rigidity in variable weather conditions.
Choose this system for a structurally sound, visually dominant, and operationally efficient solution for your largest productions.
