truss and cover
packing weight: 245kg
packing volume: 2.8cbm
1m 290mm spigot truss 4p
2m 290mm spigot truss 12p
cube 290mm 4p
300x300mm base plate 4p
net cover 1p
staging system
packing weight:400kg
packing volume:2.2cbm
| Item | Specification | Quantity |
| Aluminium assembly stage | topping:1x2m | wooden | 6 pcs |
| 1m stage brace | 9 pcs |
| 2m stage brace | 8 pcs |
| stand with extendable tube | 12 pcs |
| Stage adjustable base | 12 pcs |
| Stage Stair | wooden topping | total | 4 | steps | 1 pcs |

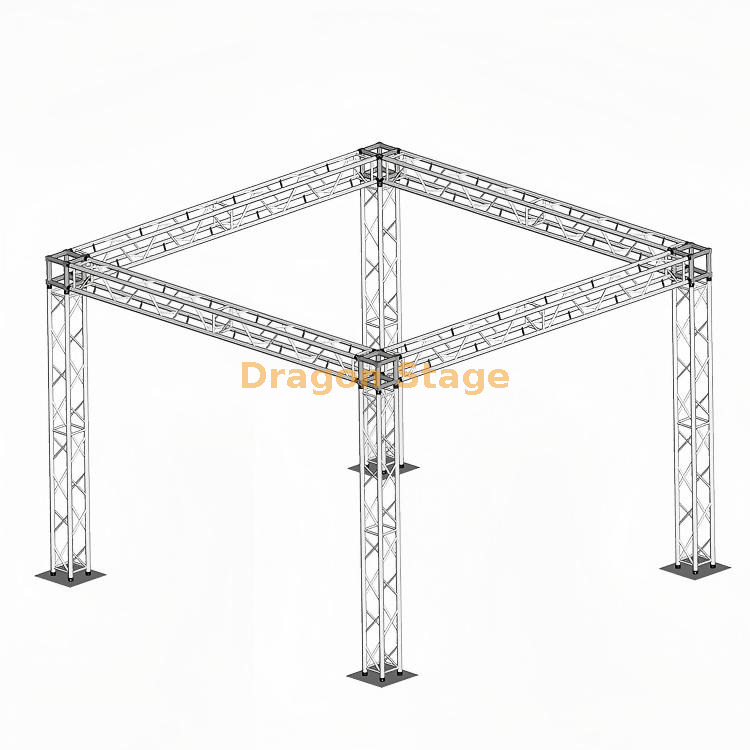

Truss and Roofing System Components
The main structure is a robust square truss system designed to support equipment and provide shelter.
Overall Truss Dimensions: The full truss frame, which serves as the "roof," measures 4 meters wide by 4 meters deep, with an overall height of 3 meters.
Truss Type: It utilizes a durable 290mm spigot trussing system, which employs a quick-connection method for rapid assembly.
Primary Elements: The frame is built using 4 pieces of 1-meter 290mm spigot truss and 12 pieces of 2-meter 290mm spigot truss.
Connection and Support: The corners are reinforced with 4 cube connectors, and the vertical supports are anchored by 4 substantial 300x300mm base plates for stability.
Weather Protection: The system includes one net cover, functioning as a sun shade or light rain protection for the DJ area and equipment.
Truss System Packaging: The truss and cover components have an approximate packing weight of 245 kilograms and occupy a volume of about 2.8 cubic meters for transport.
Staging Platform
Beneath the truss roof, a dedicated stage platform is integrated into the setup.
Stage Dimensions: The usable stage floor area measures 4 meters wide by 3 meters deep.
Adjustable Height: The platform offers an adjustable height range from 0.6 meters to 1 meter above the ground.
Deck Panels: The floor is constructed from 6 individual 1x2 meter wooden-topped aluminum assembly stage panels.
Understructure: The stability is ensured by 9 pieces of 1-meter stage braces and 8 pieces of 2-meter stage braces. The platform is supported by 12 extendable stands, each with an adjustable base for precise leveling.
Access and Safety: Entry to the platform is provided by a single 4-step stage stair, complete with handrails for safety. Additionally, the description indicates the inclusion of stage skirts on three sides for a professional appearance.
Stage System Packaging: The stage system components have a packing weight of approximately 400 kilograms and a packing volume of about 2.2 cubic meters.
