22x16x10m Heavy-Duty Spigot Roof Truss System with 6 Central Pillars

5 0 Reviews

22m×16m×10m aluminum spigot roof truss with 6 internal truss pillars. High-load concert/festival roof for LED walls, lighting & line arrays.

Price: ￥ 180822


Availability:



Inquire

Brand:
Dragonstage

Product Description

packing weight:4300kg

packing volume:60cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
22.00 m Beam(front)	2 sets	3.00 m	50×4.0	CS520×760	14pcs
		2.00 m	50×4.0	CS520×760	0pcs
		1.00 m	50×4.0	CS520×760	2pcs
16.00 m Beam(side)	2 sets	3.00 m	50×4.0	CS520×760	8pcs
		2.00 m	50×4.0	CS520×760	4pcs
		1.00 m	50×4.0	CS520×760	0pcs
9.00 m Pillar	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS520×760			FALSE
Frame Tower	Spigot Sleeve Block L				6pcs
	Steel Base L				6pcs
	Top Section L				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	2.20 m	50×3.0	CS389×389	2pcs
16.00 m Top Beam	1 sets	3.00 m	50×3.0	CS389×389	4pcs
		2.00 m	50×3.0	CS389×389	2pcs
		1.00 m	50×3.0	CS389×389	0pcs
11.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS389×389	18pcs
		2.00 m	50×3.0	CS389×389	6pcs
		.20 m	50×3.0	CS389×389	6pcs
11.20 m Ladder truss	12 sets	3.00 m	50×3.0	CL40,389*50	36pcs
		2.00 m	50×3.0	CL40,389*50	12pcs
		.20 m	50×3.0	CL40,389*50	12pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS389×389	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS389×389	0pcs
	1	Connect plate with clamp		CS389×389	2pcs
		Single clamp			24pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		527.76	1pcs

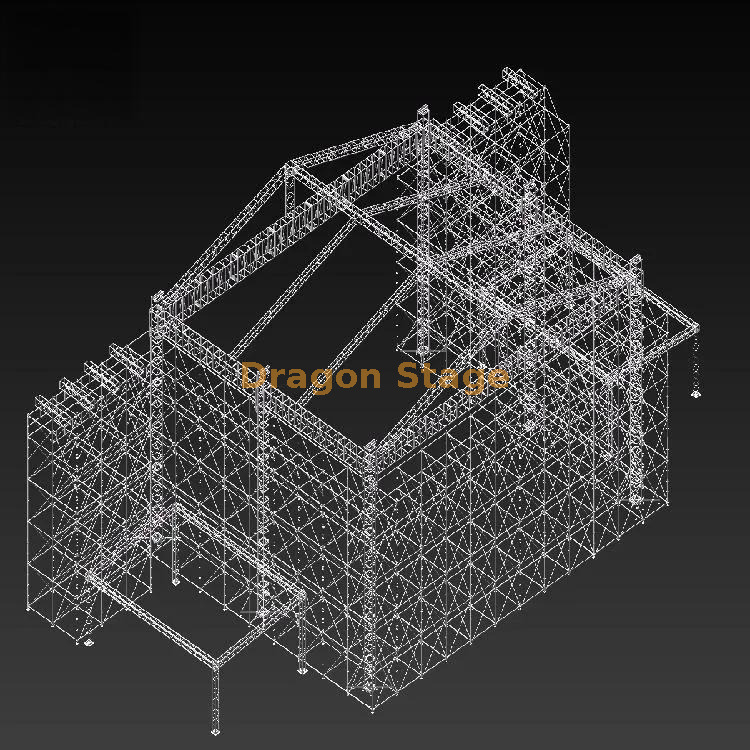

The 22m × 16m × 10m Heavy-Duty Spigot Roof Truss System is engineered for the biggest touring productions, major festivals, and high-capacity outdoor events. Featuring a massive 22-meter clear front span, 16-meter depth, and 10-meter internal height, this roof is reinforced by six central Layher scaffolding wall around that dramatically increase load-bearing capacity and wind resistance while keeping the structure completely ground-supported.

Built entirely from certified 6061 aluminum spigot truss with fast conical connectors, it supports extreme distributed loads (perfect for giant LED video walls, heavy line-array PA systems, and complex lighting designs). The combination of perimeter towers plus internal Layher pillars delivers unmatched stability and safety, making it the preferred choice of top international rental companies when maximum rigging capacity and reliability are required.
