packing weight: 2100kg
packing volume: 19cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 8pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 6pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 2pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 8pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| beam cube | cube 400x400 | 0pcs |
| Frame Tower | Bolt Truss Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | 1.20 m | 50×3.0 | BS300×300 | 2pcs |
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | BS300×300 | 3pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 1.00 m | 50×3.0 | BS300×300 | 1pcs |
| 6.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 4pcs |
| 1.20 m | 50×3.0 | BS300×300 | 4pcs |
| 6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | BL30,300*50 | 8pcs |
| 2.00 m | 50×3.0 | BL30,300*50 | 8pcs |
| 1.20 m | 50×3.0 | BL30,300*50 | 8pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | BS300×300 | 2pcs |
| roof conner 5 ways, use for roof beam truss | BS300×300 | 0pcs |
| Connect plate with clamp | 2pcs |
| Single clamp | 16pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 208.96 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 3.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | BS400×400 | 2pcs |
| 2.00 m | 50×3.0 | BS400×400 | 0pcs |
| 1.00 m | 50×3.0 | BS400×400 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | BS300×300 | 4pcs |
| 2.00 m | 50×3.0 | BS300×300 | 0pcs |
| 1.00 m | 50×3.0 | BS300×300 | 0pcs |
| Wings Tower | Bolt Truss Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Screw Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

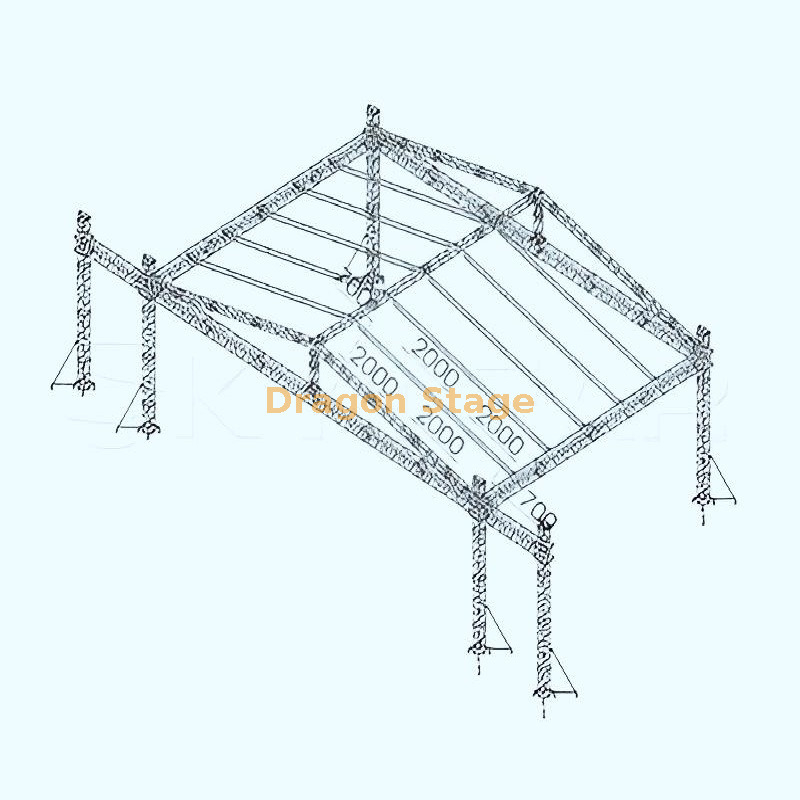

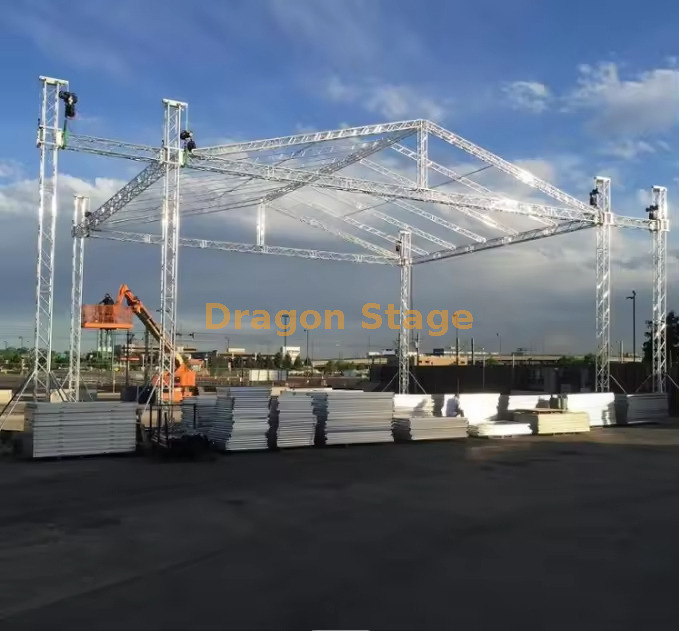

The 12m × 10m × 7m Peak Roof Bolt Truss System with Integrated 2m Speaker Wings is a highly practical and popular mid-size outdoor stage roofing solution. The classic peaked (hip-end) design provides excellent water runoff and wind resistance, while the built-in 2-meter side wings allow perfect positioning of line-array speakers or monitors without requiring extra towers.
Constructed from robust 6061 aluminum bolt/plate truss (typically 400×400mm), this system offers superior strength, easy assembly with standard tools, and a clean professional appearance. With a generous 12m front width, 7m internal height, and compact 10m depth, it’s ideal for regional concerts, festivals, corporate events, and touring productions that need reliable weather protection plus integrated PA support in one complete package.
