packing weight:5150kg
packing volume:52cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 18.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 18pcs |
| 2.00 m | 50×4.0 | CS520×760 | 3pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 16.00 m Beam(side) | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 8pcs |
| 2.00 m | 50×4.0 | CS520×760 | 4pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 11.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS389×389 | 18pcs |
| 2.00 m | 50×3.0 | CS389×389 | 6pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS520×760 | 0pcs |
| Frame Tower | Spigot Sleeve Block L | 6pcs |
| Steel Base L | 6pcs |
| Top Section L | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.80 m | 50×3.0 | CS289×289 | 3pcs |
| 16.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 9.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 1.20 m | 50×3.0 | CS289×289 | 6pcs |
| 9.20 m Ladder truss | 12 sets | 3.00 m | 50×3.0 | CL30,289*50 | 24pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 12pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 12pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| 1 | Connect plate with clamp | CS289×289 | 3pcs |
| Single clamp | 24pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 433.36 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 6.00 m Wings Beam | 2 sets | 3.00 m | 50×4.0 | CS520×760 | 4pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 11.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 6pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| Wings Tower | Spigot Sleeve Block L | 2pcs |
| Steel Base L | 2pcs |
| Top Section L | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

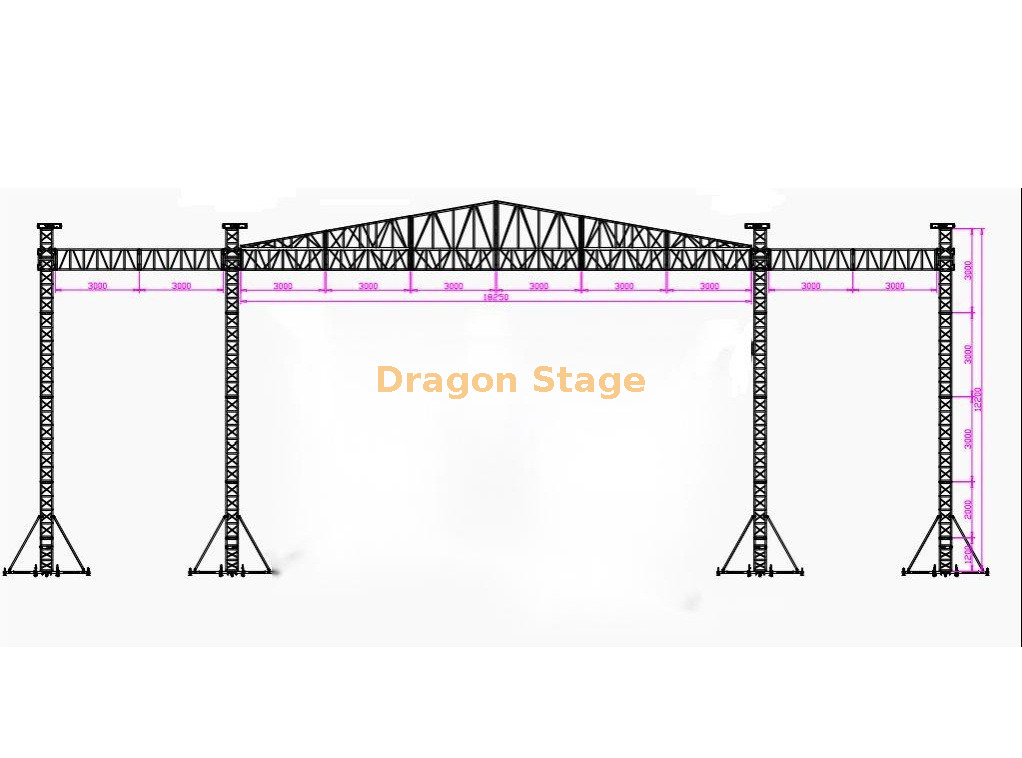

The 18m × 16m × 12m Arched Roof Truss System with Dual 6m LED Wings is the ultimate high-impact outdoor stage roofing solution for major concerts, festivals, and televised events. The elegant arched design delivers superior wind resistance and water runoff, while the integrated 6-meter side wings on both left and right provide dedicated support for massive LED video walls or additional PA hangs without compromising the main stage area.
Built from certified 6061 aluminum spigot truss with heavy-duty 520×760mm and 400×400mm sections, this ground-supported structure offers a huge 18-meter front opening, 12-meter internal height, and exceptional distributed loading capacity. Perfect when your production demands dramatic visuals, crystal-clear sightlines, and a spectacular presence that dominates any festival field or arena.
