packing weight:2900kg
packing volume:28cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 15.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 15pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 15.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 10pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 9.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 18pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 6pcs |
| Steel Base S | 6pcs |
| Top Section S | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.50 m | 50×3.0 | CS289×289 | 3pcs |
| 15.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 5pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.70 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.70 m | 50×3.0 | CS289×289 | 6pcs |
| 7.70 m Ladder truss | 12 sets | 3.00 m | 50×3.0 | CL30,289*50 | 24pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs |
| 1.70 m | 50×3.0 | CL30,289*50 | 12pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| 1 | Connect plate with clamp | CS289×289 | 3pcs |
| Single clamp | 24pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 346.86 | 1pcs |

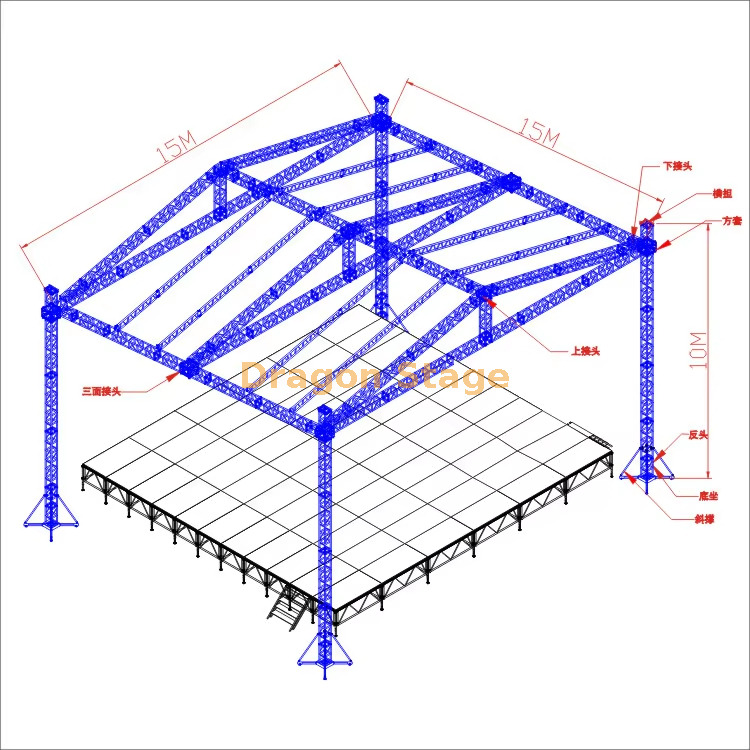

The 15m × 15m × 10m Heavy-Duty Square Roof Truss System is a premium, fully symmetrical large-scale roofing solution engineered for major outdoor concerts, festivals, corporate spectaculars, and high-profile events where maximum rigging space and visual impact are essential.
Featuring a perfect 15-meter square footprint with 10-meter internal height and built entirely from certified 6061 aluminum spigot truss (typically 400x400mm heavy-duty sections), this ground-supported structure delivers exceptional evenly distributed loading capacity — easily accommodating giant LED video walls, multiple line-array speaker hangs, complex lighting designs, and special effects.
The clean square design with full top canopy bracing offers superior wind resistance, rapid assembly by experienced crews, and a modern architectural look that stands out on any festival field. Trusted by top international rental companies when reliability, symmetry, and massive overhead capacity are non-negotiable.
