packing weight: 3400kg
packing volume: 28cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 18.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 14.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 8pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 4pcs |
| 6.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS500×600 | 2pcs |
| Frame Tower | Spigot Sleeve Block M | 4pcs |
| Steel Base M | 4pcs |
| Top Section M | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.80 m | 50×3.0 | CS289×289 | 3pcs |
| 14.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 9.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.20 m | 50×3.0 | CS289×289 | 4pcs |
| 9.20 m Ladder truss | 12 sets | 3.00 m | 50×3.0 | CL30,289*50 | 24pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 12pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 12pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| 1 | Connect plate with clamp | CS289×289 | 3pcs |
| Single clamp | 24pcs |
| Double clamp | 8pcs |
| roof canopy material:pvc, Blue Colour or customized. | 391.76 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 0pcs |
| 2.00 m | 50×3.0 | CS500×600 | 2pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 6.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| Wings Tower | Spigot Sleeve Block M | 2pcs |
| Steel Base M | 2pcs |
| Top Section M | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

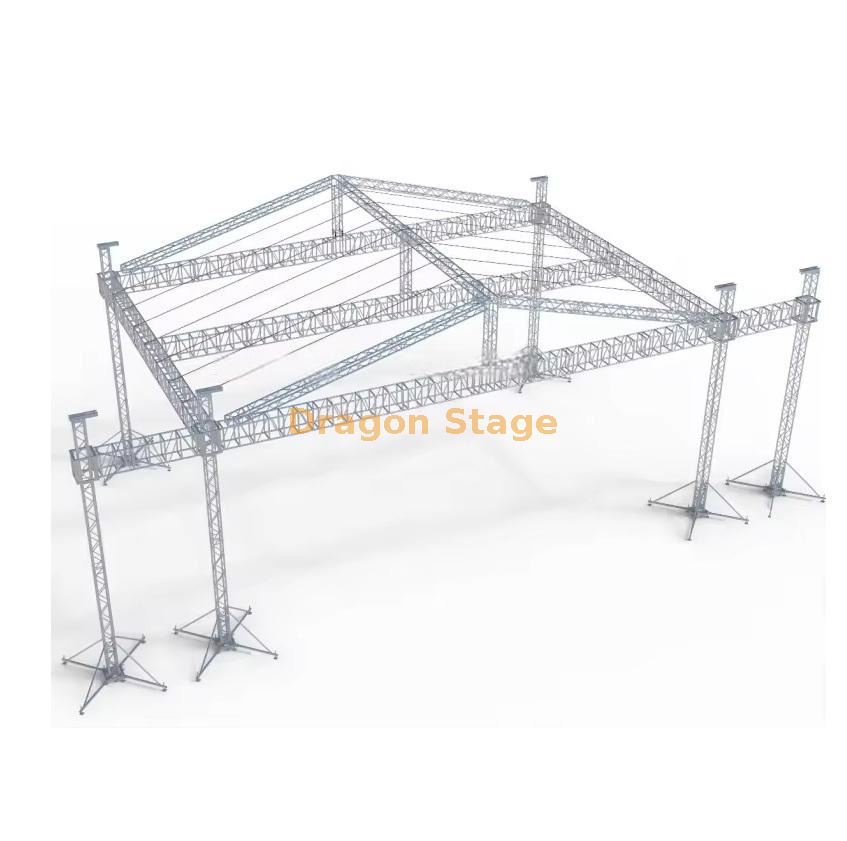

The 18m × 14m × 7m Peak Roof Truss System with Integrated 2m Speaker Wings is a highly popular mid-to-large outdoor stage solution that combines excellent weather protection with built-in line-array support. The classic peaked roof design ensures superior water runoff and wind resistance, while the 2-meter side wings on both left and right provide dedicated hanging points for line-array speakers or side-fill monitors — eliminating the need for extra PA towers.
Constructed from certified 6061 aluminum spigot truss with fast conical connectors, this ground-supported system delivers an 18-meter front width, generous 14-meter depth, and 7-meter internal height with impressive load capacity. Perfect for regional concerts, festivals, corporate events, and touring productions that demand fast setup, reliable performance, and clean integrated audio support in one complete package. Optional PVC canopy included.
