packing weight: 2840kg
packing volume: 17cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 12.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 12.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| beam cube | 6 faces | CS389×389 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 6pcs |
| Steel Base S | 6pcs |
| Top Section S | 6pcs |
| Manual hoist,BA05 2Tons | 6pcs |
| Spigot Hinge Section,Height 1m | 6pcs |
| Fibre sling,BA04,2 tons 3m | 6pcs |
| Long outrigger | 24pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 1.20 m | 50×3.0 | CS289×289 | 3pcs |
| 12.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 6.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 1.20 m | 50×3.0 | CS289×289 | 6pcs |
| 6.20 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 8pcs |
| 1.20 m | 50×3.0 | CL30,289*50 | 8pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| 1 | Connect plate with clamp | CS289×289 | 3pcs |
| Single clamp | 16pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 238.56 | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 2.00 m Wings Beam | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 0pcs |
| 2.00 m | 50×3.0 | CS389×389 | 2pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 8.00 m Wings Pillar | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| Wings Tower | Spigot Sleeve Block S | 2pcs |
| Steel Base S | 2pcs |
| Top Section S | 2pcs |
| Manual hoist,BA05 2Tons | 2pcs |
| Spigot Hinge Section,Height 1m | 2pcs |
| Fibre sling,BA04,2 tons 3m | 2pcs |
| Long outrigger | 8pcs |
| Truss Accessory |
| Conical coupler & Safrty clip & pin | whole
set |

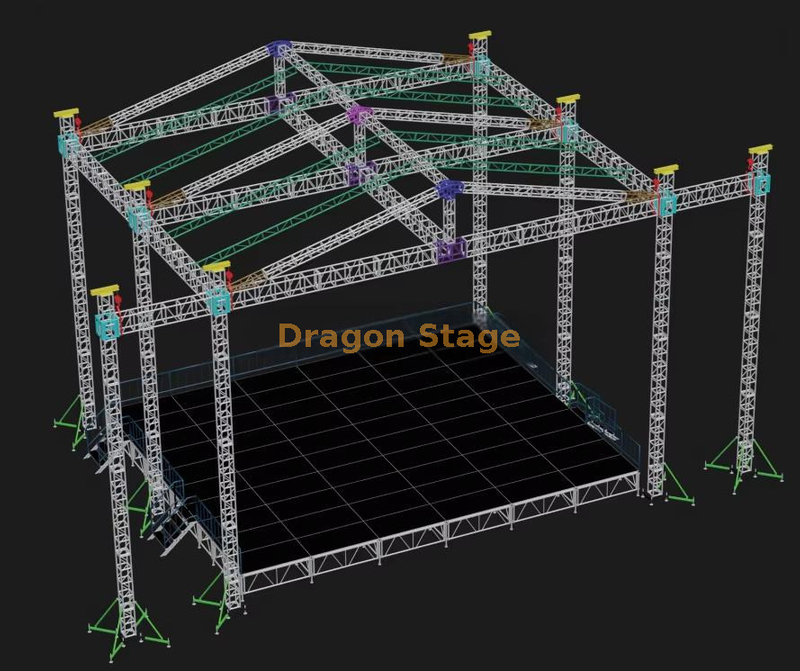

Aluminum Pitch Roof Truss System for Large Outdoor Concerts | 12x12x9m
When planning a major outdoor concert, the stage roof is not just a cover; it's the critical framework that holds your lighting, sound, and visual effects, ensuring both a spectacular show and the safety of your audience and equipment. The Aluminum Pitch Roof Design for Outdoor Concerts 12x12x9m from DRAGON STAGE is engineered to meet these demanding requirements.
This robust concert roof system is a complete 12x12x9m roof truss system designed for easy assembly and exceptional durability. Its pitched (A-frame) design is not only aesthetically pleasing but also highly functional, offering superior stability and the ability to handle significant loads.
Key Features & Specifications:
Heavy-Duty Load Capacity: Built to hold at least 2 tons of equipment, including heavy line array speakers, powerful stage lighting, and LED screens.
Complete Integrated System: The package includes two 2m wide wings, perfect for dedicated speaker placement, creating an optimal sound experience for the audience. This makes it an ideal Concert Roof Speaker Stage.
Premium Aluminum Construction: Made from high-grade aluminum (50x3.0mm main tubes), the truss is both incredibly strong and lightweight, facilitating easier transportation and faster setup.
All-Weather Protection: The system comes with a durable white PVC roof canopy (customizable in color) to shield your gear and performers from the elements.
Comprehensive Package: Everything you need is included: square trusses (389x389mm & 289x289mm), ladder trusses, manual hoists, steel bases, outriggers, and all necessary clamps and connectors.
Answers to Your Key Questions:
What is the total weight and volume for shipping?
The total packing weight is 2840kg with a volume of 17 cubic meters, allowing for accurate logistics planning.
Is this a suitable roof truss system for an outdoor concert?
Absolutely. This pitch roof truss is specifically designed for outdoor concert environments, providing a sturdy, reliable overhead structure for sound, lighting, and weather protection.
Can it support heavy line array speakers?
Yes. With a 2-ton minimum load capacity and dedicated wings, it is an excellent Outdoor Concert Roof Truss Stages solution for modern line array setups.
How does the pitch roof design compare to a flat roof truss design?
The pitch roof design offers better runoff for rain and often greater structural integrity against wind compared to a standard flat roof truss system, making it a superior choice for unpredictable outdoor events.
