packing weight:6600kg
packing volume:54cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS500×600 | 18pcs |
| 2.00 m | 50×3.0 | CS500×600 | 3pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 36.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS500×600 | 24pcs |
| 2.00 m | 50×3.0 | CS500×600 | 0pcs |
| 1.00 m | 50×3.0 | CS500×600 | 0pcs |
| 8.00 m Pillar | 10 sets | 3.00 m | 50×3.0 | CS389×389 | 20pcs |
| 2.00 m | 50×3.0 | CS389×389 | 10pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| beam cube | 6 faces | CS500×600 | FALSE |
| Frame Tower | Spigot Sleeve Block M | 10pcs |
| Steel Base M | 10pcs |
| Top Section M | 10pcs |
| Manual hoist,BA05 2Tons | 10pcs |
| Spigot Hinge Section,Height 1m | 10pcs |
| Fibre sling,BA04,2 tons 3m | 10pcs |
| Long outrigger | 40pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.00 m | 50×3.0 | CS389×389 | 3pcs |
| 36.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs |
| 2.00 m | 50×3.0 | CS389×389 | 0pcs |
| 1.00 m | 50×3.0 | CS389×389 | 0pcs |
| 10.20 m Oblique Beam | 10 sets | 3.00 m | 50×3.0 | CS389×389 | 20pcs |
| 2.00 m | 50×3.0 | CS389×389 | 10pcs |
| 2.20 m | 50×3.0 | CS389×389 | 10pcs |
| 10.20 m Ladder truss | 28 sets | 3.00 m | 50×3.0 | CL40,389*50 | 56pcs |
| 2.00 m | 50×3.0 | CL40,389*50 | 28pcs |
| 2.20 m | 50×3.0 | CL40,389*50 | 28pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS389×389 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS389×389 | 1pcs |
| 1 | Connect plate with clamp | CS389×389 | 3pcs |
| Single clamp | 56pcs |
| Double clamp | 20pcs |
| roof canopy material:pvc, Blue Colour or customized. | 936.16 | 1pcs |

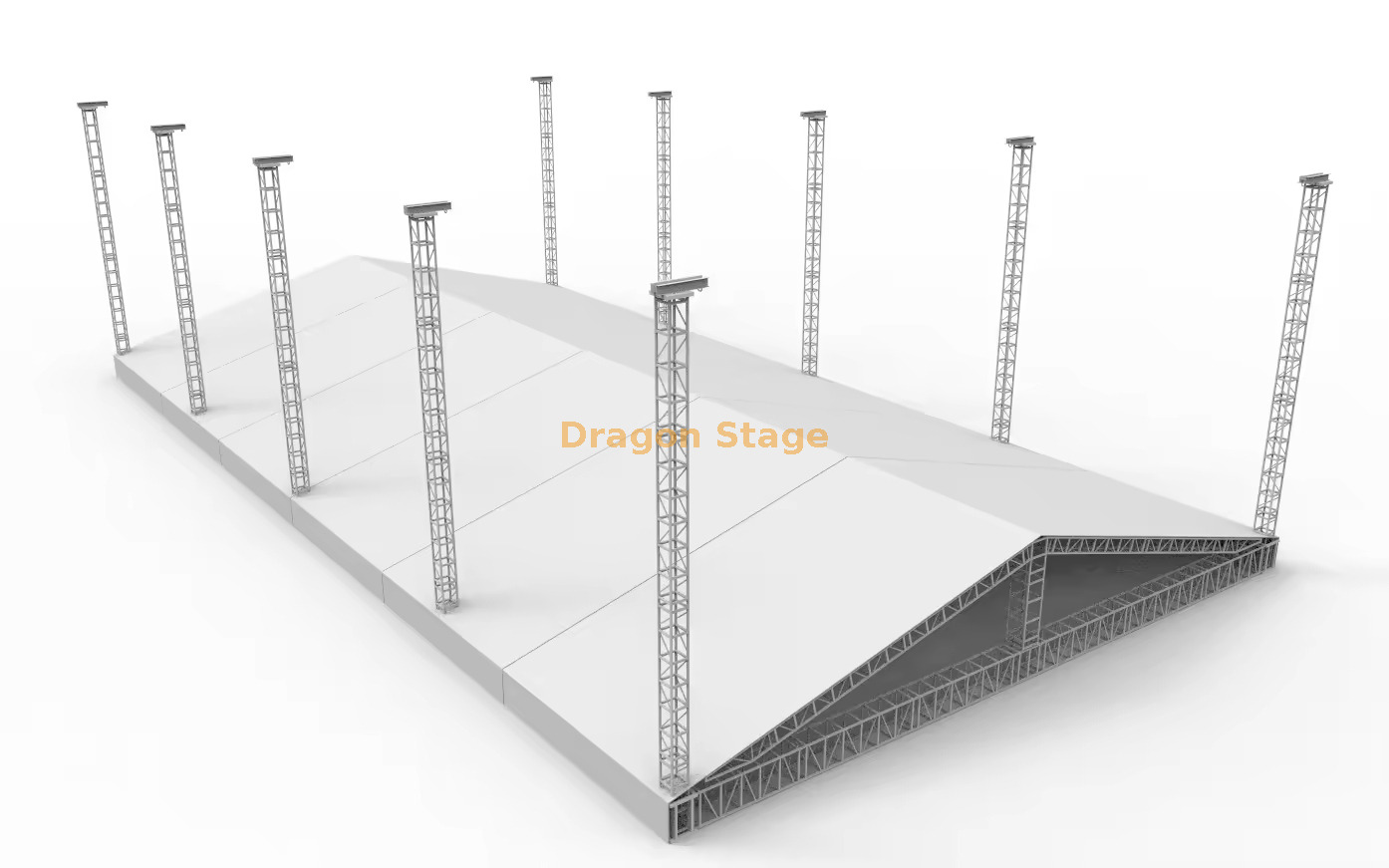

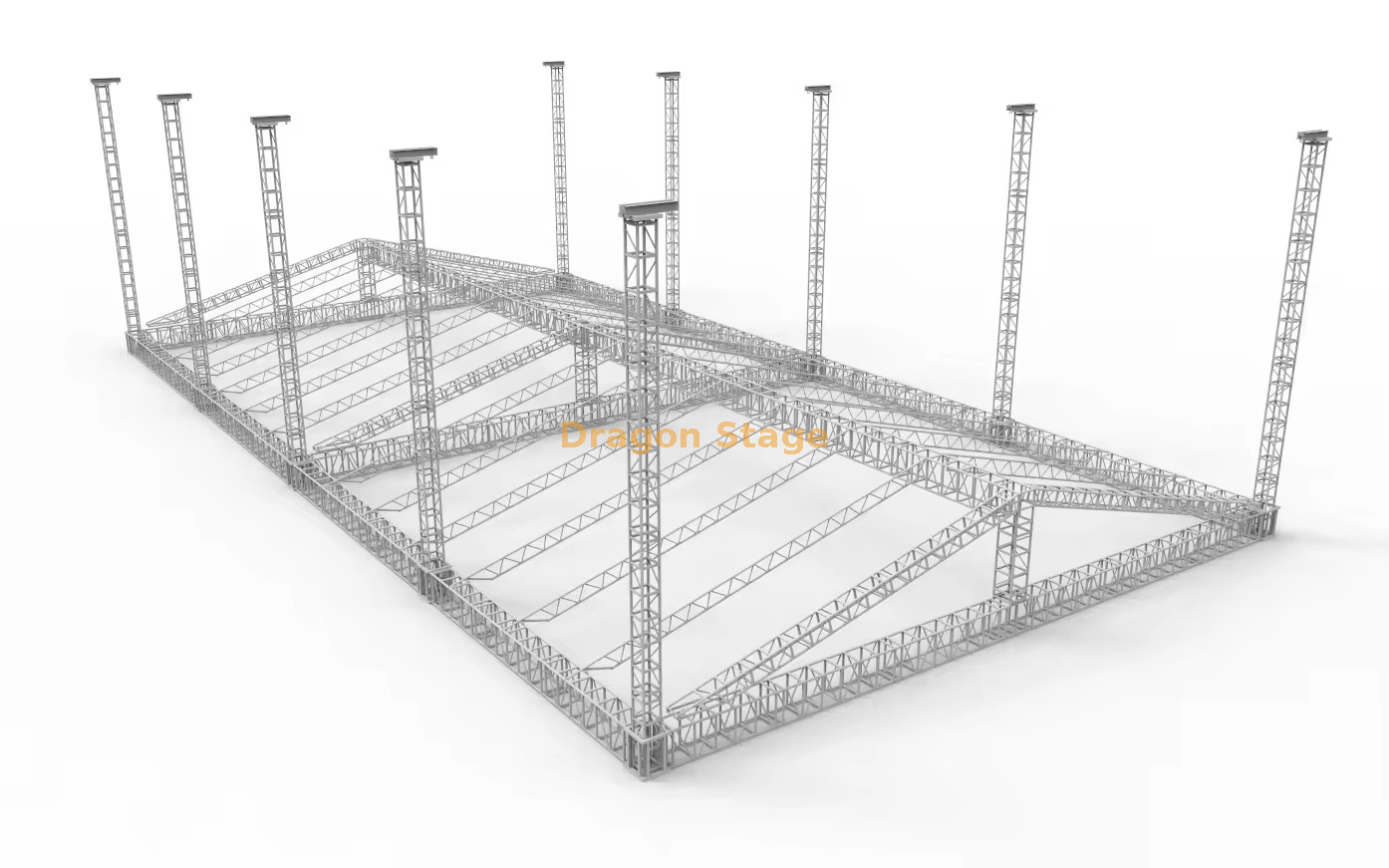

This heavy-duty, large-scale Flat Roof Aluminum Ground Support Truss System is designed to provide a massive, stable overhead structure for the most expansive professional events, including music festivals, trade shows, large exhibitions, and temporary venue coverings.
Key Dimensions: This system offers significant coverage with a 20-meter width, an extensive 36-meter depth, and an imposing 9-meter clear height, making it suitable for complex production requirements.
Modular & Customizable: The rectangular, flat-roof design is built using a highly adaptable modular truss grid, allowing for easy modification of length and width to suit various site layouts and event needs.
Maximum Rigging Capacity: The robust horizontal grid is ideal for rigging heavy production loads, including extensive lighting plots, large LED video walls, sound systems, and complex scenery elements.
Durable Construction: Manufactured from premium 6061 aluminum alloy, the system guarantees high load-bearing performance, excellent durability, and resistance to environmental wear, ensuring safety and longevity.
