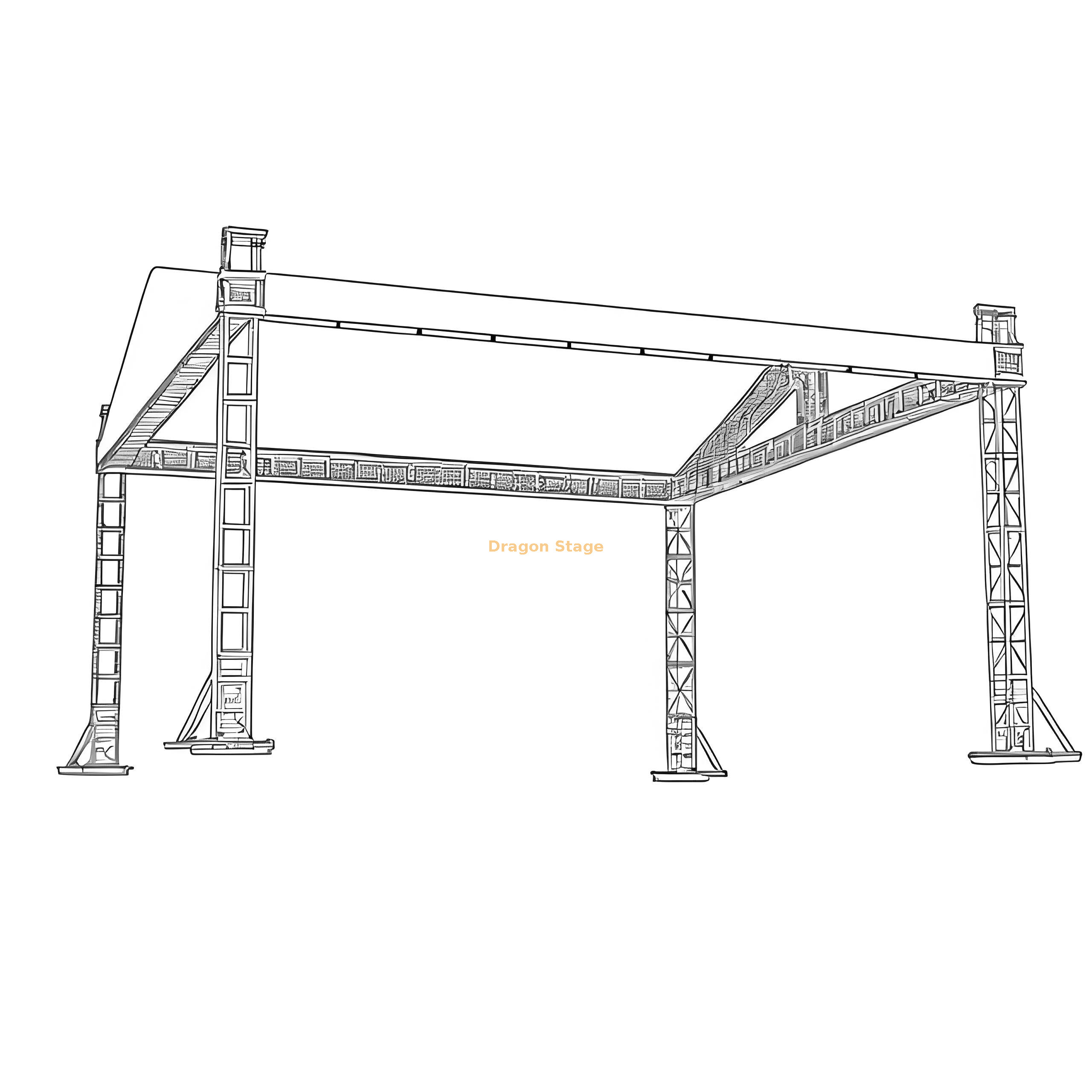

Aluminum Event Pitched Truss Roof Sloped Truss Roof 18x8x3m

5 0 Reviews

this is a custom Aluminum Event Pitched Truss Roof, it is overall height 3m to ensue 2.5mtr height to the eaves with a apex roof and 3.5mtr to the top of apex.

this Sloped Truss Roof net sizes are 18m long and 8m deep.

Price: ￥ 83734


Availability:



Inquire

Brand:
Dragon Stage

Product Description

Aluminum Event Pitched Truss Roof Sloped Truss Roof 18x8x3m

packing weight: 2050kg

packing volume: 26cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
8.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS500×600	4pcs
		2.00 m	50×3.0	CS500×600	2pcs
		1.00 m	50×3.0	CS500×600	0pcs
18.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS500×600	12pcs
		2.00 m	50×3.0	CS500×600	0pcs
		1.00 m	50×3.0	CS500×600	0pcs
2.00 m Pillar	4 sets	3.00 m	50×3.0	CS389×389	0pcs
		2.00 m	50×3.0	CS389×389	4pcs
		1.00 m	50×3.0	CS389×389	0pcs
beam cube	6 faces	CS500×600			0pcs
Frame Tower	Spigot Sleeve Block M				4pcs
	Steel Base M				4pcs
	Top Section M				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.80 m	50×3.0	CS289×289	2pcs
18.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	4pcs
		2.20 m	50×3.0	CS289×289	4pcs
4.20 m Ladder truss	16 sets	3.00 m	50×3.0	CL30,289*50	0pcs
		2.00 m	50×3.0	CL30,289*50	16pcs
		2.20 m	50×3.0	CL30,289*50	16pcs
Roof Components	4	roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
	5	roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
	1	Connect plate with clamp		CS289×289	2pcs
		Single clamp			32pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		232.96	1pcs
