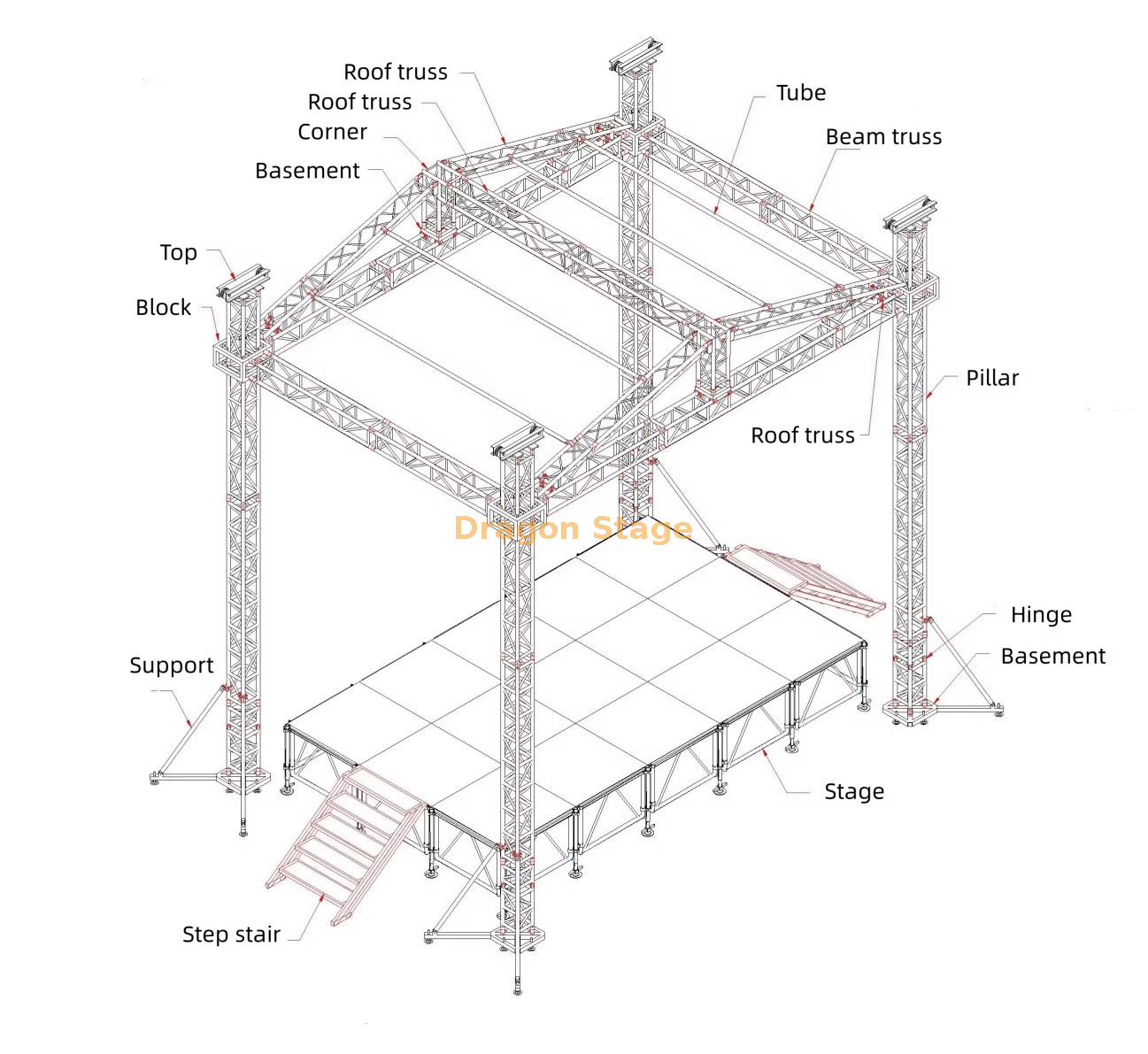

7x4x8m Aluminum DJ Roof Truss System for Wedding Stage and Outdoor Events
This 7x4x8m aluminum DJ roof truss system is designed for wedding stages, DJ performances, outdoor events, temporary stage roofing and lighting support applications.
The system uses CS289×289mm aluminum spigot truss with modular roof beams, lifting towers, PVC roof canopy and manual hoist systems. The total structure size is approximately 23ft × 13ft × 26ft, providing a compact but professional roof solution for medium-size events.
Compared with simple lighting stands or lightweight pipe frames, this modular roof truss structure offers better stability, safer lighting suspension and a more professional visual appearance for weddings, ceremonies, parties and live entertainment events.
Product type: Aluminum DJ roof truss system
Application: Wedding stage, DJ stage, outdoor events, lighting support
Main structure size: 7m × 4m × 8m
Main truss section: CS289×289mm square spigot truss
Main tube: 50×3.0mm aluminum tube
Roof material: PVC canopy
Lifting system: Manual hoist tower system
Support structure: 4 lifting towers with outriggers
Packing weight: 1200kg
Packing volume: 9cbm
Brand: Dragon Stage
packing weight: 1200kg
packing volume: 9cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 7.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 4.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 2 sets | .70 m | 50×3.0 | CS289×289 | 2pcs |
| 4.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 2pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 3.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 0pcs |
| 2.00 m | 50×3.0 | CS289×289 | 4pcs |
| 1.70 m | 50×3.0 | CS289×289 | 4pcs |
| 4.00 m tube truss | 2 sets | 4.00 m | 50×3.0 | tube 50mm | 4pcs |
| 2.00 m | 50×3.0 | tube 50mm | 0pcs |
| 1.70 m | 50×3.0 | tube 50mm | 0pcs |
| Roof Components | 4 | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| 5 | roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs |
| 1 | Connect plate with clamp | CS289×289 | 2pcs |
| Single clamp | 0pcs |
| Double clamp | 0pcs |
| roof canopy material:pvc, Blue Colour or customized. | 72.66 | 1pcs |
Main Features
Modular aluminum spigot truss structure
Compact roof system for wedding and DJ events
PVC canopy protection for outdoor applications
4-point lifting tower system with manual hoists
Suitable for stage lighting and decoration hanging
Fast installation and dismantling
Reusable modular event structure
Lightweight compared with steel roof systems
Professional appearance for event production
Why This DJ Roof Truss System Is Recommended
For wedding DJs, event rental companies and temporary stage builders, one of the biggest challenges is balancing portability, structural safety and professional appearance.
This roof truss system solves that problem by combining:
The 289mm spigot truss structure is widely used in small and medium event systems because it provides good structural stability while remaining lightweight and easy to transport.
Compared with steel pipe frames or temporary DIY roof structures, aluminum spigot truss systems provide:
For similar systems, buyers can also explore Roof Truss, Event Truss, Lighting Truss, and Standard Spigot Truss.
Application Scenarios
This aluminum roof truss system is suitable for:
Wedding ceremony stages
Outdoor DJ performances
Live music events
Temporary event stages
Fashion show stages
Hotel outdoor events
Church celebration stages
Festival lighting systems
Brand activation events
Touring production setups
For project references and structural applications, you can also check:
Wedding Ceremony Stage Application
Concert Event Stage Application
Temporary Stage & Truss Systems for Touring Productions
Concert & Event Stage Projects
Wedding & Event Decoration Structures
Engineering Insight
A roof truss system is not only a lighting support frame. It is a temporary structural engineering system that must consider:
vertical load
wind resistance
lifting safety
truss deflection
connection behavior
roof tension
base stability
This system uses:
sleeve block lifting towers
steel base stabilization
outriggers for anti-overturning
modular spigot connection design
PVC roof canopy integration
These components work together to improve installation efficiency and structural reliability.
For technical understanding, buyers can read:
Load Analysis for Modular Stage Systems
Modular System Logic for Stage Truss Scaffold
Installation Methodology for Modular Stage Truss Scaffold Systems
Safety Standards & Engineering Constraints
What is the Maximum Load Capacity of an Aluminum Lighting Truss System?
Deflection vs Maximum Load – What Matters More?
Related Product & Knowledge Links
Typical Roof Truss Systems
Typical Flat Roof Truss System
Typical Curve Roof Truss System
How to Build Aluminum Truss
How to Install Stage Truss
How to Assemble Event Truss
How to Rig Lighting Truss
Outdoor Lighting Truss Guide
Stage & Truss Inspection Checklist
Dragon Stage: Professional Stage & Truss Manufacturer
FAQ
What is this aluminum DJ roof truss used for?
It is mainly used for wedding stages, DJ performances, outdoor lighting systems, temporary stage roofing and event decoration structures.
Is the roof waterproof?
The system includes a PVC roof canopy that provides basic weather protection for outdoor event use.
What truss size does this system use?
The main structure uses CS289×289mm square aluminum spigot truss with 50×3.0mm main tubes.
Can this roof system support lighting fixtures?
Yes. It is designed for hanging stage lighting, decorative elements and lightweight event equipment. Actual load capacity depends on rigging layout and safety requirements.
Is the system modular?
Yes. The modular truss design allows future expansion or modification using compatible truss sections and accessories.
Is custom size available?
Yes. Dragon Stage can customize roof truss size, height, canopy color and structural configuration according to event requirements.
